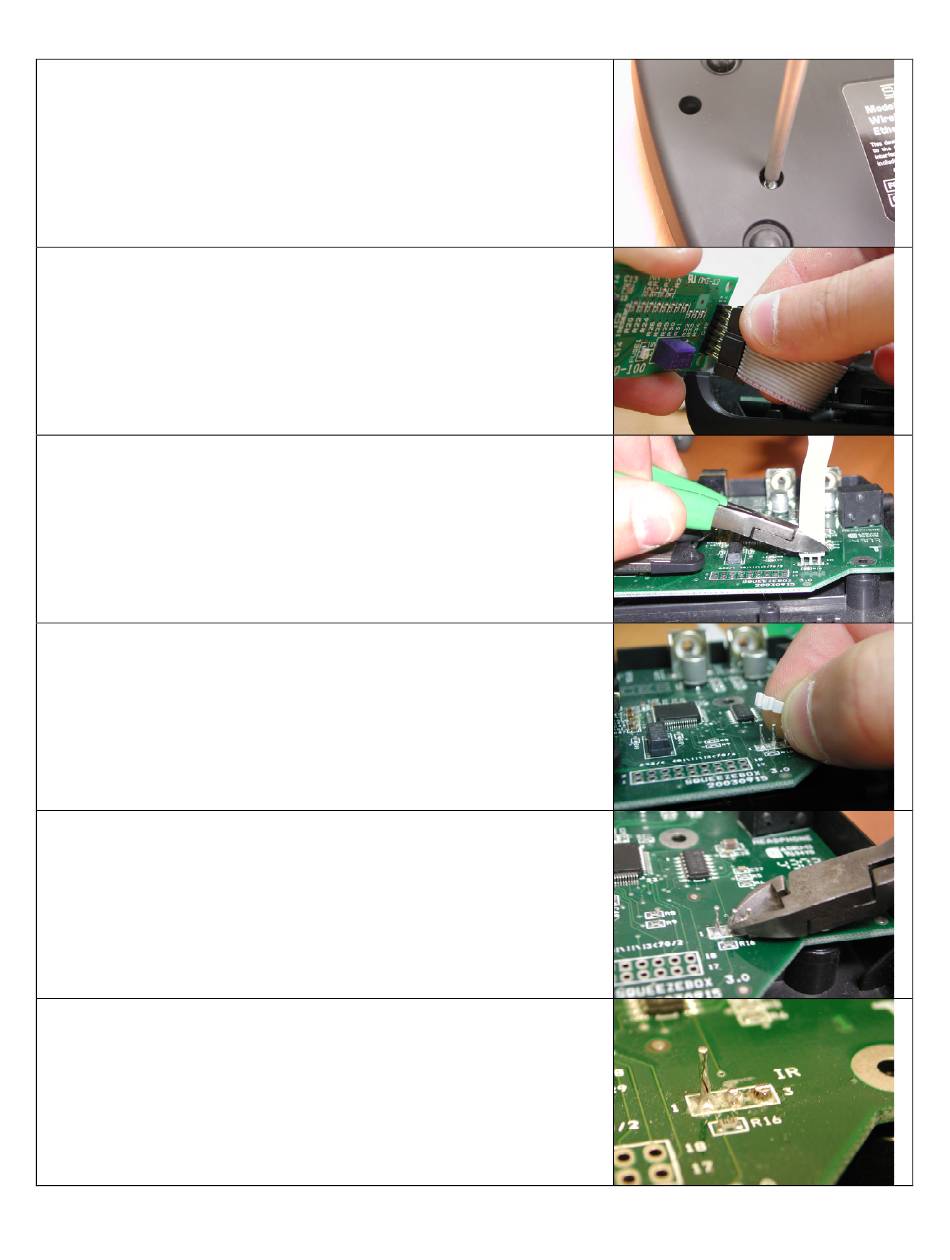

1. Unplug the cables, turn over Squeezebox and remove the
four screws using the torx driver. Turn Squeezebox over
again and lift off the top of the case.
2. Lift the character display module out of the case, and
disconnect the 14-pin cable from the module. Leave the
other end plugged in to the main Squeezebox circuit board.
3. Clip the infrared sensor cable 1/4" (6mm) away from the
main board.
4. Grasp the remaining strip of insulation and slide it off of
the wires.
5. Clip only the remaining pins 2 and 3. Leave pin 1
protruding from the board.
6. This is how it should look after removing the infrared
sensor assembly. Pin #1 should be sticking straight up,
about 0.25". The other pins should be cut flush.
Page 2
