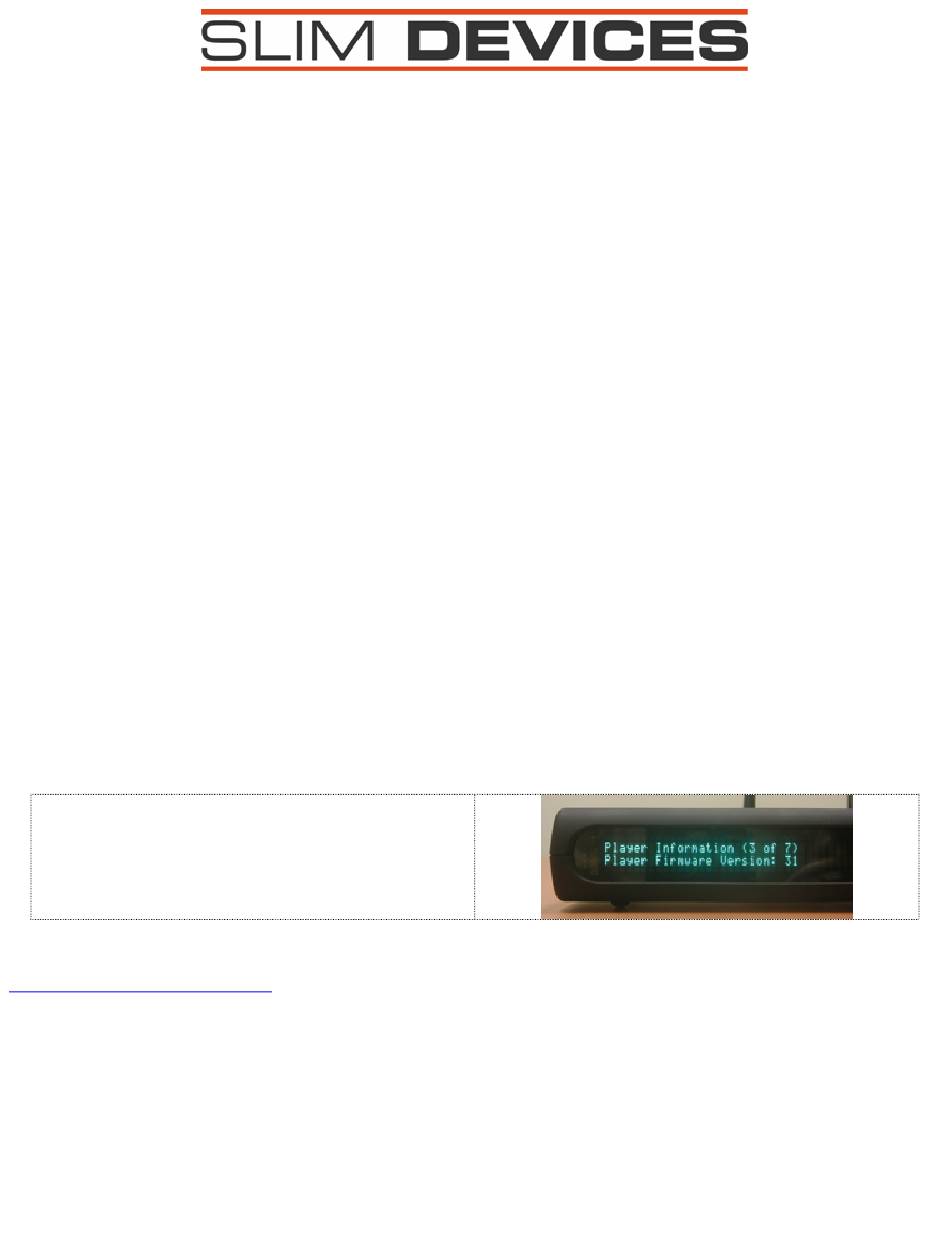

Squeezebox Graphic Display
Upgrade Installation Instructions

Tools required:

• Torx T-10 screwdriver
• Wire cutters

Precautions:

• This display module is designed exclusively for Squeezebox. It will not work in SLIMP3 or
any other product. Attempting to connect it to other devices may damage the display or the
device.
• The glass is fragile and may have sharp corners. Handle with care. Never force the case
closed – everything should fit without forcing.
• When returning the old display to Slim Devices, please pack it only using the included packing
material and in the same container.
• High voltages are present when the display is powered on. Do not touch the circuit board
while the display is running – it might shock you or damage the display. Do not attempt to
install the display while bathing.

Installation instructions:

Make sure you have the latest software. Download SlimServer v5.2.2 or newer, which includes the
latest Squeezebox firmware. You will be prompted for a firmware update. After completing the
update, navigate to Settings->Information->Player Information->Player Firmware Version. Make
sure that the version number shown is 31 or higher.
DO NOT PROCEED UNTIL YOU HAVE
VERIFIED THAT YOU ARE RUNNING A
FIRMWARE VERSION OF 31 OR GREATER!
If you have any questions about the installation please contact our support staff at
support@slimdevices.com
or call us at +1 (650) 210-9400.
