jav e li n
Q U A L I T Y T H E R M O M E T E R S
C A L I F O R N I A U S A

Advertisement

loading
Need help?

Need help?

Do you have a question about the Javelin and is the answer not in the manual?

Questions and answers

Related Manuals for lavatools Javelin

Summary of Contents for lavatools Javelin

  • Page 1 jav e li n Q U A L I T Y T H E R M O M E T E R S C A L I F O R N I A U S A...

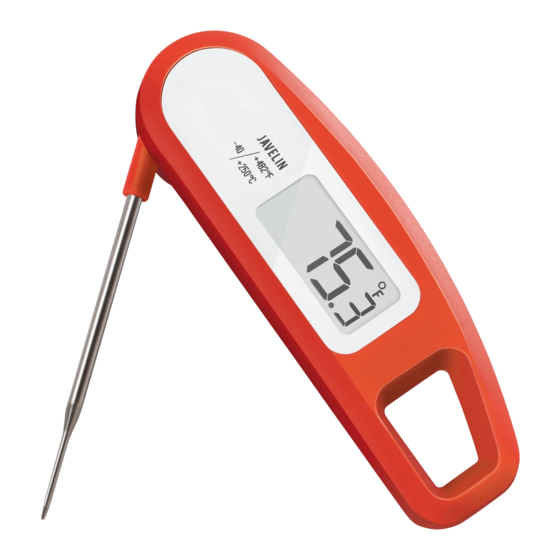

  • Page 2 YO UR JAVELIN ° Javelin...
  • Page 3 PROBE 18/8 food grade large readout stainless steel display MAGNET LANYARD for easy hole for quick storage attachment...
  • Page 4 Extend the probe and the Javelin is ready for use. Sleep Mode If you leave the Javelin on and idle for more than 60 minutes, the device will automatically go to sleep. To get it going again, simply retract and extend the probe.
  • Page 5 CH A N GI NG T HE B ATT E RY When the display shows “ERROR” and the icon, it’s time to switch out your battery. Fully retract the probe and twist open the battery door with a coin. Carefully remove existing battery and insert a new CR2032 with the positive (+) pole up.
  • Page 6 SWITC HING B E T W E E N C °/F ° Personalize your Javelin using the C°/ F° switch found inside the battery bay. Simply twist open the battery door and tap out the battery to access the switch.

  • Page 7: Additional Information

    The Javelin has a built-in magnetic backing to allow for convenient storage. Magnetic backing may not work on stainless steel surfaces. Splash Resistant The Javelin is rated at IP65 splash resistance. This means that it is protected against low pressure jets if water, such as splashes from a tap.
  • Page 8 Tapered Sensor Tip The ultra-sensitive thermistor sensor is located at the tip of the probe, requiring a minimum insertion distance of 0.25” (5mm). Antimicrobial Coating Silver-based antimicrobial additive is impregnated into the plastic shell to inhibit the growth of pathogens. E cacy is rated at 99% or greater.

  • Page 9: Accur Acy T Est

    ACCUR ACY T EST To check the accuracy of your thermometer, we recommend using an ice bath test. Fully pack a large cup with crushed ice and fill up to 3/4 with purified water. Let the slurry sit for a brief moment, then give it a quick stir to allow the temperature to equalize throughout.
  • Page 10 TR OU B L ES HOOT I NG WON’T SWITCH DISPLAYING DEVICE “ERROR” ASLEEP retract and extend battery is running low, retract and extend probe or change change batteries probe to wake battery...

  • Page 11: Use And Maintenance

    USE & M AINT ENANC E • Always measure at the center of the meat, avoid hitting bone or hard cartilage. • Prevent build up of grime; always clean the body with soft damp cloth. • Do not clean with solvents or scouring agents. •...

  • Page 12: Product Warranty

    Damage resulting from normal wear and tear, water entry, abuse, misuse, accidental breakage, negligence, defects caused by modifications, repair and servicing not made or authorized by Lavatools will void all warranty. Lavatools reserves the right to make the final judgment on all claims.
  • Page 13 18/8 FOOD GRADE STAINLESS Lavatools, Javelin, and Javelin PRO are registered trademarks of Lavatools, LLC., v1.2 registered in the U.S. and other countries. 602-7884-Q...
