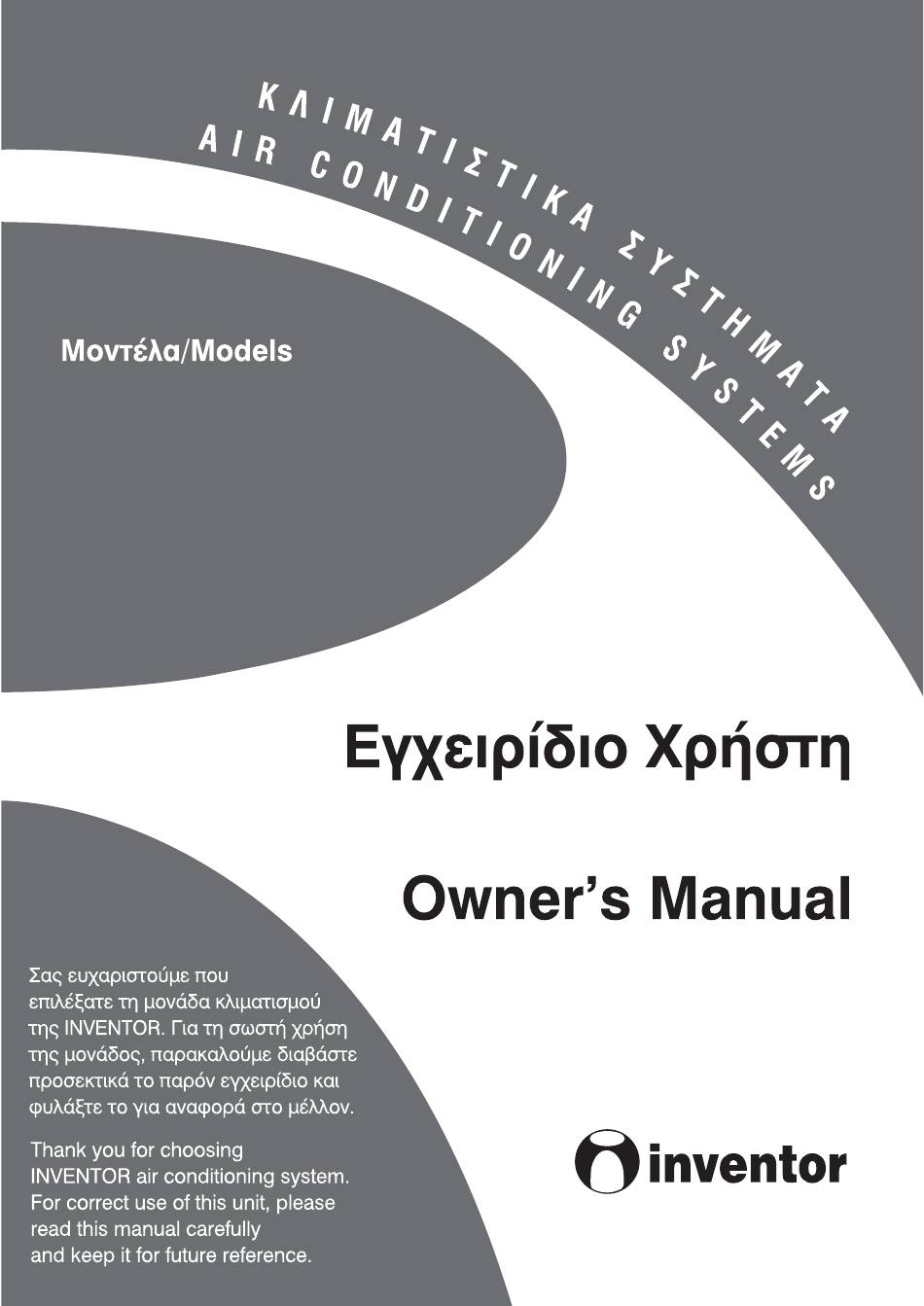

  • Page 1 V2DI-12 V2DI-18 V2DI-24 V2DI-30 V2DI-36 V2DI-45 V2DI-50 V2DI-60 Μονάδα δικτύου αεραγωγών Inverter U-match DC Inverter U-match Series Duct Type Unit English/Ελληνικά/ Româna Your-conditions...

  • Page 2: Table Of Contents

    Contents 1 Safety Precautions ..................1 2 Outline of the Unit and Main Parts..............2 3 Preparative for Installation ................3 3.1 Standard Accessory Parts ................3 3.2 Selection of the Installation Location ............4 3.3 Connection Pipe Requirement ..............5 3.4 Electrical Requirement ................

  • Page 3: Safety Precautions

    DC Inverter U-match Series Duct Type Unit 1 Safety Precautions This mark indicates procedures which, if improperly performed, might lead to the WARNING! death or serious injury of the user. This mark indicates procedures which, if improperly performed, might possibly CAUTION! result in personal harm to the user, or damage to property.

  • Page 4: Outline Of The Unit And Main Parts

    DC Inverter U-match Series Duct Type Unit 2 Outline of the Unit and Main Parts Indoor Air outlet Air inlet 1. power Cord 3. Wired controller Outdoor 4. Wireless Controller Air inlet 5. Binding tape 6. Drain Pipe 7. Gas Pipe 8.

  • Page 5: Preparative For Installation

    DC Inverter U-match Series Duct Type Unit 3 Preparative for Installation 3.1 Standard Accessory Parts The standard accessory parts listed below are furnished and should be used as required. Table 1 Indoor Unit Accessories Name Appearance Q'ty Usage Wired Controller To control the indoor unit Hanger Nut with Washer...

  • Page 6: Selection Of The Installation Location

    DC Inverter U-match Series Duct Type Unit Table 2 Outdoor Unit Accessories Name Appearance Q'ty Usage Drain Plug To plug the unused drain hole. To connect with the hard PVC Drainage Connecter drain pipe 3.2 Selection of the Installation Location WARNING! otherwise the unit would topple or fall off.

  • Page 7: Connection Pipe Requirement

    DC Inverter U-match Series Duct Type Unit 3.2.2 Outdoor Unit WARNING! Install the unit where it will not be tilted by more than 5°. securely. (1). (2). Install the outdoor unit in a place where it will be free from getting dirty or getting wet by rain as much as possible.

  • Page 8: Electrical Requirement

    Difference between pipe(Outer Item Length Indoor Unit and Diameter × wall Liquid Model Outdoor Unit (m) thickness) (mm) V2DI-12 U2RS-12 V2DI-18 U2RS-18 V2DI-24 U2RS-24 V2DI-30 U2RS-30 V2DI-36 U2RS-36 V2DI-45 U2RS-45 V2DI-50 U2RS-50 V2DI-36 U2RT-36 V2DI-45 U2RT-45 V2DI-50 U2RT-50 V2DI-60 U2RT-60 The connection pipe should be insulated with proper water-proof insulating material.

  • Page 9: Installation Of The Unit

    DC Inverter U-match Series Duct Type Unit Note: The fuse is located on the main board. Install the disconnect device with a contact gap of at least 3mm in all poles nearby the units (Both indoor unit and outdoor unit).The appliance must be positioned so that the plug is accessible.
  • Page 10 DC Inverter U-match Series Duct Type Unit For the units: 12~18K, 50k,60k For the units: 24~45K Liquid Pipe Gas Pipe Air Intake Drainage Pipe Fig.4...
  • Page 11 DC Inverter U-match Series Duct Type Unit Table 6 Item Model V2DI-12 V2DI-18 V2DI-24 1101 1159 1239 1002 V2DI-30 V2DI-36 1011 1115 1226 V2DI-45 V2DI-50 1177 1150 1340 V2DI-60 4.1.2 Drilling Holes for Bolts and Installing the Bolts Using the installation template, drill holes for bolts (four holes). (Fig. 5) 4.1.3 Installing the Suspension Bolts...

  • Page 12: Installation Of The Outdoor Unit

    DC Inverter U-match Series Duct Type Unit Hanger Fig.8 Screw Hook Nu t Fig.9 4.1.4 Leveling The water level test must be done after installing the indoor unit to make the unit is horizontal, as shown below. Horizontal tester Fig.10 4.2 Installation of the Outdoor Unit WARNING Install the unit where it will not be tilted by more than 5°.
  • Page 13 DC Inverter U-match Series Duct Type Unit 4.2.1 Outdoor unit dimension Fig.11 Table 6 Unit: mm Item Model U2RS-12 U2RS-18 U2RS-24 U2RS-30 U2RS-36 1100 1107 U2RT-36 U2RS-45 U2RT-45 1349 U2RS-50 U2RT-50 U2RT-60 1085 1365 4.2.2 Condensate Drainage of the Outdoor Unit(Only for the heat pump unit) (Fig.12) (1).

  • Page 14: Installation Of The Connection Pipe

    DC Inverter U-match Series Duct Type Unit Drain cap Bottom Drain pipe mounting hole Fig.12 4.3 Installation of the Connection Pipe 4.3.1 Flare Processing (1). Cut the connection pipe with the pipe cutter and remove the burrs. (2). Hold the pipe downward to prevent cuttings from entering the pipe. (3).
  • Page 15 DC Inverter U-match Series Duct Type Unit Pipe (4). When bending the pipe, do not bend it as is. The pipe will Heat insulating be collapsed. In this case, cut the heat insulating pipe pipe with a sharp cutter as shown in Fig.15, and bend it after Cutter Cutt line sure to put the heat insulating pipe back on the pipe, and...
  • Page 16 DC Inverter U-match Series Duct Type Unit Table 7 Flare nut tightening torque Pipe Diameter Tightening Torque 1/4 Inch) 15-30 (N·m) 3/8 Inch) 35-40 (N·m) 5/8 Inch) 60-65 (N·m) 1/2 Inch) 45-50 (N·m) 3/4 Inch) 70-75 (N·m) 7/8 Inch) 80-85 (N·m) CAUTION! Be sure to connect the gas pipe after connecting the liquid pipe completely.

  • Page 17: Vacuum And Gas Leakage Inspection

    DC Inverter U-match Series Duct Type Unit 4.3.7 Liquid Pipe and Drain Pipe Sealed If the outdoor unit is installed lower than the indoor unit (See Fig.20) Saddle (1). A drain pipe should be above ground and the end of the pipe does not dip into water.
  • Page 18 DC Inverter U-match Series Duct Type Unit vacuum pump. Meanwhile, the switch at the high pressure side of the manifold valve assembly should be kept closed, otherwise evacuation would fail. (5). The evacuation duration depends on the unit’s capacity, generally, 15 minutes for the 12K units, 20 minutes for the 18K units, 30 minutes for the 24/30/36K units, 45 minutes for the 45/50/60 units.

  • Page 19: Installation Of The Drain Hose

    DC Inverter U-match Series Duct Type Unit an oil bend should be employed for every 6 meters. Outdoor Oil bend Indoor Oil bend 4.5 Installation of the Drain Hose 4.5.1 Installation of Drain Piping CAUTION! Install the drain hose in accordance with the instructions in this installation manual and keep the area warm enough to prevent condensation.

  • Page 20: V2Di

    DC Inverter U-match Series Duct Type Unit Condensate Drainpipe As the inside of the unit is in the negative pressure status, it is required to set up a backwater elbow. The Enlarged View requirements is: Condensate Drainpipe P/10+20(mm) P is the absolute pressure inside the unit.
  • Page 21 DC Inverter U-match Series Duct Type Unit over it the insulation can be directly attached to the drain hose. (12). Considerations for the unit with the condensate pump: 1). For the unit with the condensate pump, only one drain port at the side close to the electric 2).

  • Page 22: Installation Of The Duct

    4.6 Installation of the Duct Fig.33 4.6.1 Dimensions of the Supply Air Outlet/Return Air Inlet Fig.34 Supply Air Outlet Fig.35 Return Air Inlet Table 9 Supply Air Outlet Return Air Inlet Item Model V2DI-12 V2DI-18 V2DI-24 V2DI-30 1000 V2DI-36 1000 V2DI-45 V2DI-50 V2DI-60...
  • Page 23 DC Inverter U-match Series Duct Type Unit 4.6.2 Installation of the Supply Air Duct (1). Installation of the Rectangular Duct. Name Name Hanger Filter Main Air Air Intake Pipe Supply Pipe Canvas Air Air Supply Pipe Outlet Air Intake Fig.36 CAUTION! The duct is rectangular and connected with the air inlet/outlet of the indoor unit.

  • Page 24: Electrical Wiring

    DC Inverter U-match Series Duct Type Unit Supply air Supply air Supply air Supply air Return air Return air Return air Return air Install the Return Air Duct (a) Install the return air duct (a) Install the return air duct (b) Install the Return Air Duct (b) Fig.38 Table 10 Installation of the return air duct...
  • Page 25 DC Inverter U-match Series Duct Type Unit CAUTION ! The power source capacity must be the sum of the air conditioner current and the current of contracted capacity. to raise the voltage. 4.7.2 Electrical Wiring (1). For solid core wiring (Fig.39) 1).

  • Page 26: V2Di

    Always fasten the outside covering of the connection cord with cord clamps. (If the insulator is not clamped, electric leakage may occur.) Always connect the ground wire. (4). Electric wiring between the indoor and outdoor units Single-phase units (12K~30K) U2RS-12+V2DI-12 U2RS-18+V2DI-18 Power cord 3×1.5mm (H07RN-F) Power cord 3×1.0mm (H05RN-F) Communication Cords 2×0.75mm...
  • Page 27 DC Inverter U-match Series Duct Type Unit Three-phase units U2RT-36+V2DI-36 U2RT-45+V2DI-45 U2RT-50+V2DI-50 U2RT-60+V2DI-60 Power cord 3×2.5mm (H07RN-F) Power cord 3×1.0mm (H05RN-F) Communication Cords 2×0.75mm (H05RN-F) Fig.42 (5). Electric wiring of indoor unit side Fig.43 The F, C, O connect to the COMMOM, CLOSE and OPEN terminal of the fresh air valve respectively.
  • Page 28 DC Inverter U-match Series Duct Type Unit Connect the indoor unit connection cord properly based on the corresponding marks as shown in Fig.42. Ground both the indoor and outdoor units by attaching a ground wire. Unit shall be grounded in compliance with the applicable local and national codes. (6).

  • Page 29: Installation Of Controllers

    DC Inverter U-match Series Duct Type Unit 5 Installation of Controllers Refer to the Installation Manual of the controller for more details. 6 Test Running 6.1 Trial Operation and Testing (1). The meaning of error codes as shown below: Table 11 Number Error code Error...

  • Page 30: Working Temperature Range

    DC Inverter U-match Series Duct Type Unit Drive current error Sensor connecting protection Temperature drift protection Bus low voltage protection Bus high voltage protection Charge loop error Input voltage abnormality Drive memory chip error Note: When the unit is connected with the wired controller, the error code will be simultaneously shown on it.

  • Page 31: Unit Function

    DC Inverter U-match Series Duct Type Unit 7 Unit Function 7.1 Setting of Double Indoor Room Sensors This series of ducted air-conditioning unit has two indoor room sensors. One is located at the air intake of the indoor unit and the other one is located inside the wire controller. User can select one from the two indoor room sensors on the basis of the engineering requirement.

  • Page 32: Fresh Air Control

    DC Inverter U-match Series Duct Type Unit 7.3 Fresh Air Control 11-levels control can be realized for the amount of fresh air taken in. The function not only facilitates the health of users, but also controls the electricity consumption loss because of taking in fresh air.

  • Page 33: Troubleshooting And Maintenance

    After carrying out the check of the above items and taking relevant measures to solve the problems found but the air-conditioning unit still does not function well, please stop the operation of the unit immediately and contact the local service agency designated by Inventor. Only ask professional serviceman to check and repair the unit.
  • Page 34 DC Inverter U-match Series Duct Type Unit otherwise it would cause discoloration and deformation of the unit. (1). (2). shade. 12/18k: clasps. 24~60k: downward against the guide groove sponge and take it off along the arrow direction.There are two return air inlet...
  • Page 35 Notes:...
  • Page 36 ...............................................................
  • Page 37 (1). (2). (3). (4). (5). (6). (7). (8). (9). (10). (11).
  • Page 40 (1). (3). (4). (5).
  • Page 41 ＞2000 ＞500 ＞500 ＞500...
  • Page 42 V2DI-12 U2RS-12 V2DI-18 U2RS-18 V2DI-24 U2RS-24 V2DI-30 U2RS-30 V2DI-36 U2RS-36 V2DI-45 U2RS-45 V2DI-50 U2RS-50 V2DI-36 U2RT-36 V2DI-45 U2RT-45 V2DI-50 U2RT-50 V2DI-60 U2RT-60 12K~45K 50K~60K U2RS-12 U2RS-18 U2RS-24 U2RS-30 U2RS-36 U2RS-45 U2RS-50 U2RT-36 U2RT-45 U2RT-50 U2RT-60...
  • Page 44 50k,60k...
  • Page 45 V2DI-12 V2DI-18 V2DI-24 1101 1159 1239 1002 V2DI-30 V2DI-36 1011 1115 V2DI-45 V2DI-50 1177 1150 1340 V2DI-60 1.27...
  • Page 46 Μπουλόνι ανάρτησης Εσωτερική μονάδα Hook Nu t...

  • Page 47: V2Di

    U2RS-12 U2RS-18 U2RS-24 U2RS-30 U2RS-36 1107 1100 U2RT-36 U2RS-45 U2RT-45 1349 U2RS-50 U2RT-50 U2RT-60 1085 Απαιτείται η εγκατάσταση σωλήνα αποστράγγισης στην εξωτερική μονάδα για την απορροή συμπυκνωμάτων κατά τη λειτουργία της θέρμανση Κατά την τοποθέτηση του σωλήνα αποστράγγισης, θα πρέπει όλες οι άλλες οπες εκτός από την οπή...
  • Page 49 Ροπόκλειδο Γαλλικό κλειδί Χαλκοσωλήνας Επάλειψη με λάδι (για την μείωση των τριβών με το παξιμάδι) Ροπόκλειδο Γαλλικό κλειδί Παξιμάδι Επάλειψη με λάδι (βελτιώνει την ασφάλεια) Παξιμάδι Ένωση σωληνώσεων...
  • Page 50 Σωλήνα αερίου Σωλήνα υγρού Σύνδεση σωλήνων 3οδη βάνα 2οδη βάνα Αναφορά Α Θερμομόνωση σύνδέσεων πάνω στον σωλήνα (μεγάλη) Μπροστινή έξοδος Αναφορά Α: Καλύψπτε και αυτό το μέρος με θερμομόνωτικό υλικό Θερμομόνωση σύνδέσεων πάνω στον σωλήνα (μικρή) Θερμομονωτικός αγωγός Σωλήνα χωρίς Σωλήνα...
  • Page 51 (1). (3). (4).

  • Page 52: V2Di

    Βαλβίδα πολλαπλής εισαγωγής Μανόμετρο (χαμηλής πίεσης) Μανόμετρο (υψηλής πίεσης) Διακόπτης (χαμηλής πίεσης) Διακόπτης (υψηλής πίεσης) Σωλήνας σύνδεσης Σωλήνα σύνδεσης (στην εσωτερική μονάδα) Κάλυμμα Βάνα υγρού Σωλήνα επίσκεψης Βάνα αερίου Κάλυμμα Βαλβίδα επίσκεψης Εύκαμπτος αγωγός Εύκαμπτος αγωγός Κάλυμμα με την ακίδα της βάνας Αντλία...
  • Page 53 Παγίδα Αγωγός αποστράγγισης Βεβαιωθείτε πως ο αγωγός αποστράγγισης είναι χαμηλότερα από το άνοιγμα απορροής Διαρροή αέρα Καμπύλη Στήριγμα Αγωγός αποστράγγισης...
  • Page 54 Άνοιγμα απορροής Κάλυμμα απορροής Συνδετήρας Μόνωση αγωγου αποστραγγισης Μονωμένος αγωγός αποστραγγισης Μονωμένος αγωγός αποστραγγισης Κάλυμμα Μονάδα Μονάδα Άνοιγμα απορροής Άνοιγμα απορροής Μονωμένος αγωγός αποστραγγισης Κάλυμμα...
  • Page 55 (12). Οροφή Βάση ανύψωσης Αγωγός αποστραγγισης (σύνδεση) Ανύψωση αγωγού αποστράγγισης Δάπεδο Κολλάρο Αγωγός αποστραγγισης (σύνδεση) Τ σύνδεση αγωγών αποστράγγισης Τ σύνδεση αγωγών αποστράγγισης...
  • Page 56 Έξοδος αέρα Φορητή αντλία Κουβας Έξοδος απορροής V2DI-12 V2DI-18 V2DI-24 V2DI-30 V2DI-36 1000 V2DI-45 1000 V2DI-50 V2DI-60...
  • Page 57 (1). Περιγραφή Περιγραφή Νο Νο Ανάρτηση Φίλτρο Προσαγωγή αέρα Αναρρόφηση αέρα Αναρρόφηση αέρα (2). (4). (5). (6).
  • Page 58 198~264 342~...
  • Page 59 Συμπαγές καλώδιο Τερματικό κλώνου καλωδίου μη συμπαγές Μονωση Βιδώστε με ειδική ροδέλα Βιδώστε με ειδική ροδέλα Κυκλικό τερματικό Μονωτικός αγωγός Κυκλικό τερματικό Τερματική πλακέτα Μονωτικός αγωγός Καλώδιο Σφηγκτήρας καλωδίου Καλώδιο...
  • Page 60 Εσωτερική μονάδα Εξωτερική μονάδα Ασφάλειοδιακόπτης Ασφάλειοδιακόπτης Παροχή Παροχή U2RS-30 +V2DI-36 U2RS-45 +V2DI-45 Εσωτερική μονάδα Εξωτερική μονάδα U2RS-50 +V2DI-50 Ασφάλειοδιακόπτης Ασφάλειοδιακόπτης Παροχή Παροχή...
  • Page 61 U2RT-36 +V2DI-36 U2RT-45 +V2DI-45 Εσωτερική μονάδα Εξωτερική μονάδα U2RT-50 +V2DI-50 U2RT-60 +V2DI-60 Ασφάλειοδιακόπτης Ασφάλειοδιακόπτης Παροχή Παροχή Κάλυμα ηλεκτρικού κυτίου Βάση ηλεκτρικού κυτίου...

  • Page 62: V2Di

    18K~30K 36K~50K 36K~50K...
  • Page 68 (1). (2). 12/18k: Κύρια μονάδα Πίεση Φίλτρο Πίεση 24~60k: (3).
  • Page 69 Σημειώσεις:...
  • Page 70 Cuprins .. 73...
  • Page 71 AVERTIZARE! (1). (2). (3). (4). (5). (6). (7). (8). (9). (10). (11).
  • Page 72 Seria U-Match Admisie aer tare 3. A t de comand Admisie aer 9. Mâner mare cta i ct de aceast tate ar t tite de c tre t ator...
  • Page 74 Utilizare 3.2.1 Unitatea de interior (1). (2). (3). (4). (5).
  • Page 75 3.2.2 Unitatea de exterior interior. ＞500 ＞500 ＞2000 ＞500 Fig.3...
  • Page 76 (inci) Articol V2DI-12 U2RS-12 V2DI-18 U2RS-18 V2DI-24 U2RS-24 V2DI-30 U2RS-30 V2DI-36 U2RS-36 V2DI-45 U2RS-45 V2DI-50 U2RS-50 V2DI-36 U2RT-36 V2DI-45 U2RT-45 V2DI-50 U2RT-50 V2DI-60 U2RT-60 12K~45K 50K~60K U2RS-12 U2RS-18 U2RS-24 U2RS-30 U2RS-36 U2RS-45 U2RS-50 U2RT-36 U2RT-45 U2RT-50 U2RT-60...
  • Page 78 12~18K, 50k,60k...
  • Page 79 Articol V2DI-12 V2DI-18 V2DI-24 1101 1159 1239 1002 V2DI-30 V2DI-36 1011 1115 1226 V2DI-45 V2DI-50 1177 1150 1340 V2DI-60 1.27mm Fig. 5 Fig.6 Fig.7...
  • Page 80 Bolţul consolei Fig.8 Fig.9 Fig.10 n care tatea de terior tr ternic...
  • Page 81 Fig.11 Articol U2RS-12 U2RS-18 U2RS-24 U2RS-30 U2RS-36 1107 1100 U2RT-36 U2RS-45 U2RT-45 1349 U2RS-50 U2RT-50 U2RT-60 1085 1365...
  • Page 82 Conexiunea de scurgere Lungiţi ţevile prin intinderea lor...
  • Page 83 (4). Fig.15 Fig.16 Fig.17...
  • Page 85 4.4.1 Vidare...
  • Page 86 12~18K 24~60K...
  • Page 87 Exterior ta i în con ormitate de i t tra i zona t de a î ormarea te de (1). ta i î în (1/50 1/100) toare . (F . ta ormarea de aer. (F . ) . Ut i întot care a t bine iz de drena...
  • Page 88 at tip duct DC Inverter Seria U-Match Tubul de drenaj Tub de drenaj Fig.26 Tabelul 3 pentru Orificiu de drenaj Capac de drenaj Fig.27 Izolarea furtunului de scurgere Izolaţia furtunului de scurgere Izolaţia furtunului de scurgere Unitate Capacul de scurgere Scurgerea Scurgerea Izolaţia furtunului...
  • Page 89 2). V Tavan Suport de susţinere Furtun de evacuare Furtun de scurgere Fig.30 Furtun de scurgere Fig.31 Ţevi comune de scurgere a condensului unite prin refneţi Ţevi comune de scurgere a condensului unite prin refneţi Fig.32...
  • Page 90 DC Inverter Seria U-Match Evacuare aer Pompă portabilă Evacuarea scurgerii Găleată Fig.33 V2DI-12 V2DI-18 V2DI-24 V2DI-30 V2DI-36 1000 V2DI-45 1000 V2DI-50 V2DI-60...
  • Page 91 (1). Denumire Denumire Filtru Alimentare cu aer Admisie aer Admisie aer Alimentare cu aer Admisie a aerului te rect conectat orif t ii de interior. orif dintre Filtru...
  • Page 92 t tip duct DC Inverter Seria U-Match Supply air Supply air Alimentare cu aer Alimentare cu aer Retur aer Return air Return air Retur aer Install the Return Air Duct (a) Montarea ductului de aer recirculat(a) Montarea ductului de aer recirculat (b) Install the Return Air Duct (b) Fig.38 Tabelul 10 Montarea ductului de aer recirculat...
  • Page 94 12K~30K) U2RS-12 +V2DI-12 U2RS-18 +V2DI-18 Unitate de Unitate de exterior interior Întrerupător Întrerupător U2RS-24 +V2DI-24 U2RS-30 +V2DI-30 Putere Putere U2RS-30 +V2DI-36 U2RS-45 +V2DI-45 Unitate de Unitate de interior exterior Întrerupător Întrerupător U2RS-50 +V2DI-50 Putere Putere...
  • Page 95 U2RT-36 +V2DI-36 Unitate externă Unitate internă U2RT-45 +V2DI-45 U2RT-50 +V2DI-50 U2RT-60 +V2DI-60 Siguranţă Siguranţă Putere Putere Cutie electrică O connect to t e E and OPEN t o t e re...
  • Page 96 18K~30K 36K~50K 36K~50K...
  • Page 97 6 Testare od de Eroare O ser a ii eroare Protec ie resi ne îna t a co resor Protec ie anti îng e entr interior Protec ie resi ne oas a co resor i, rotec ie i s de agent de re rigerare i od de ixare a agent i de re rigerare...
  • Page 98 Protec ie c rent A Eroare c rent otor Protec ie conectare en or Protec ie aria ie de te erat r Protec ie ten i ne oa agi tra Protec ie ten i ne na t agi tra Eroare de nc rcare Ten i ne a intrare anor a Eroare c i...
  • Page 99 Fig.48 t exterior Fig.49...
  • Page 100 din exterior Unitate de interior Fig.50...
  • Page 101 deconectate. exterioare.
  • Page 102 12/18k: 24~60k: (3).
  • Page 103 Note:...
