HG630 Home Gateway Product
Description
Issue
01
2012-05-20
Date
HUAWEI TECHNOLOGIES CO., LTD.
Part Number: 203197

Advertisement

Table of Contents
loading

Related Manuals for Huawei HG630

Summary of Contents for Huawei HG630

  • Page 1 Part Number: 203197 HG630 Home Gateway Product Description Issue 2012-05-20 Date HUAWEI TECHNOLOGIES CO., LTD.
  • Page 2 The purchased products, services and features are stipulated by the commercial contract made between Huawei and the customer. All or partial products, services and features described in this document may not be within the purchased scope or the usage scope. Unless otherwise agreed by the contract, all statements, information, and recommendations in this document are provided “AS...

  • Page 3: Table Of Contents

    HG630 Home Gateway Product Description Contents 1 Overview..........................4 1.1 Introduction to the HG630 ........................4 1.2 Hardware Features ..........................5 1.3 Network Architecture ........................... 8 2 Functional Features ......................10 2.1 High- bandwidth VDSL2 and HSPA Upstream Link ................. 10 2.2 Support 802.11n ..........................

  • Page 4: Overview

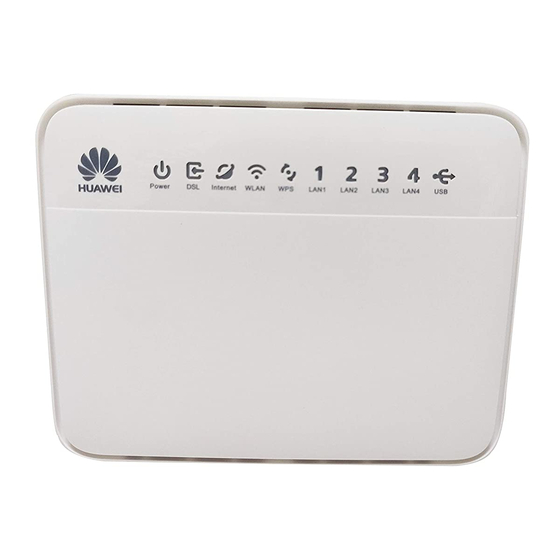

    1.1 Introduction to the HG630 Figure 1-1 Appearance of the HG630 HG630 Home Gateway (hereinafter referred to as the HG630) is a type of Very High Speed Digital Subscriber Line (VDSL) terminal. It's also compatible with Asymmetric Digital Subscriber Line (ADSL), ADSL2, ADSL2+. On the network side, the HG630 provides a DSL interface.

  • Page 5: Hardware Features

    HG630 Home Gateway Product Description As a broadband network terminal, the HG630 is an extension of an operator's broadband network. HG630 provides powerful remote maintenance and administration functions. It supports the latest TR-069 terminal management standards and remote upgrades, thus facilitating large-scale deployment and maintenance.
  • Page 6 HG630 Home Gateway Product Description Description USB interface, which is used to connect a USB device, such as a Huawei HSPA USB interface link device. The maximum voltage/current output from the USB port is 5 V/0.8 A. That is, the input voltage/current of the USB device connected to the USB port cannot exceed 5 V/0.8 A.
  • Page 7 HG630 Home Gateway Product Description Indicator Description LAN1 ~ LAN4 Indicate the status of the Ethernet connection between the HG630 and the PC. Indicates the status of the USB connection between the HG630 and the USB device. Huawei Proprietary and Confidential...

  • Page 8: Network Architecture

     indicates a logical management channel.  Table 1-3 lists the network units in the networking diagram of the HG630. Table 1-3 Network units in the networking diagram of the HG630 Item Full Name Next Generation Network...
  • Page 9 HG630 Home Gateway Product Description Item Full Name HG630 Telephone Set-Top Box Desktop computer Notebook computer Huawei Proprietary and Confidential Issue: 01 (2012-05-20) Page 9 of 16 Copyright © Huawei Technologies Co., Ltd.

  • Page 10: Functional Features

    The HG630 provides the WPS 2.0 function. A wireless connection can be set up between the computer and the HG630 conveniently and securely. 2.4 Routing Function The HG630 has an embedded PPP dialer. It supports the functions of a Dynamic Host Configuration Protocol (DHCP) server and simultaneous access of multiple users and devices.

  • Page 11: Flexible Qos Policies

    2.7 Standardized TR-069 Management The HG630 is completely compatible with the TR-069 standard defined by the Digital Subscriber Line (DSL) Forum. Providing complete remote management and diagnostic functions, it can implement the zero configuration solution. In addition, the HG630 can carry out customized service provisioning conveniently through automatic upgrade based on the service provisioning process.

  • Page 12: Technical Specifications

    Supports WPS 2.0 (PBC mode and PIN mode)  Supports DQPSK, DBPSK, CCK, OFDM, BPSK, QPSK, 16-QAM and 64-QAM  wireless modulation method Huawei Proprietary and Confidential Issue: 01 (2012-05-20) Page 12 of 16 Copyright © Huawei Technologies Co., Ltd.

  • Page 13: Security Features

    Supports NAT and ALG expansion  Supports DHCP Server/Client  Supports DNS Relay/Client  Supports IGMP proxy and IGMP snooping  Supports DMZ  Huawei Proprietary and Confidential Issue: 01 (2012-05-20) Page 13 of 16 Copyright © Huawei Technologies Co., Ltd.

  • Page 14: Qos Features

    3.8 Environmental Specifications Ambient temperature for operation: 0°C to 40°C (32°F to 104°F)  Relative humidity for operation: 5% to 95%, non-condensing  Huawei Proprietary and Confidential Issue: 01 (2012-05-20) Page 14 of 16 Copyright © Huawei Technologies Co., Ltd.

  • Page 15: Acronyms And Abbreviations

    Network Address and Port Translation Network Address Translation Next Generation Network nrt-VBR Non-real-time Variable Bit Rate Operations Support System Personal Computer PPPoA Point-to-Point Protocol over ATM Huawei Proprietary and Confidential Issue: 01 (2012-05-20) Page 15 of 16 Copyright © Huawei Technologies Co., Ltd.
  • Page 16 VDSL2 Very High Speed Digital Subscriber Line 2 plus Wired Equivalent Privacy WLAN Wireless Local Area Network Wi-Fi Protected Access Wi-Fi Protected Setup Huawei Proprietary and Confidential Issue: 01 (2012-05-20) Page 16 of 16 Copyright © Huawei Technologies Co., Ltd.
