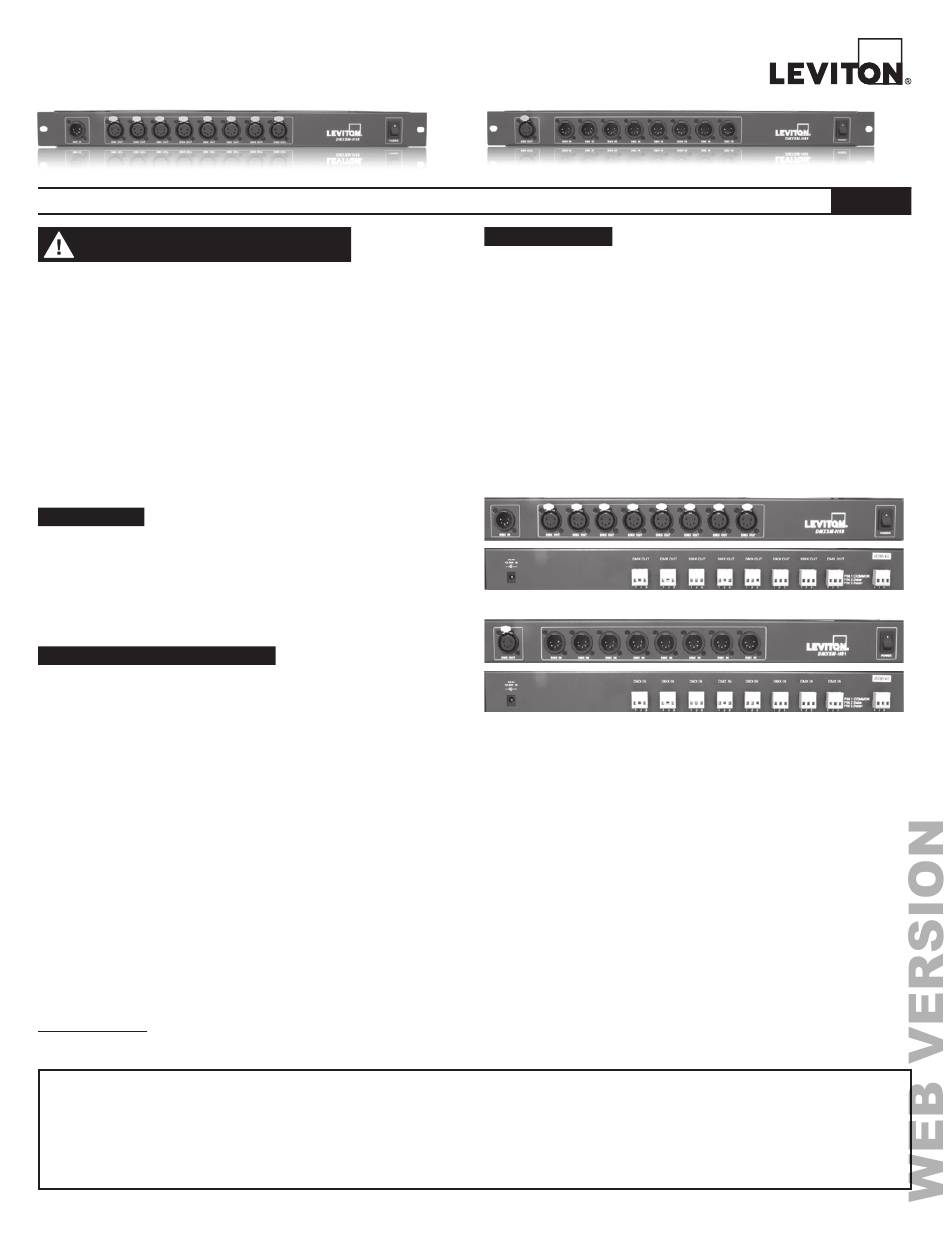

Leviton DMXSM-H18 User Manual

DMXSM-H18 Splitter
WARNINGS AND CAUTIONS
• WARNING: TO AVOID FIRE, SHOCK OR DEATH, DO NOT remove
the ground prong from the power cord.
• DO NOT expose unit to rain or moisture, or damage may occur.
• DO NOT operate this unit if it becomes damaged in any way.
• DO NOT operate this unit if the power cord is frayed or broken.
• There are no user serviceable parts inside. DO NOT attempt any
repairs yourself, as doing so will void the warranty. Please contact
Leviton Technical Support if the unit is not functioning properly.
• If the unit has been stored in a cold environment (below 40° F), DO
NOT turn the power on until it warms up or damage may occur. Avoid
situations that could cause condensation to occur inside the unit.
• Ensure that the main power outlet matches the required voltage for
your unit.
• Never operate this unit with its cover removed.
DESCRIPTION
• The DMXSM-H18 model allows you to conveniently split one incoming
DMX signal into eight separate, opto-isolated, outbound DMX signals.
• The DMXSM-H81 model allows for eight separate, opto-isolated, DMX
IN signals to be merged into one outbound DMX signal.
This guide is intended to orient you to the unit(s), please read it
carefully to familiarize yourself with the basic operations.
INSTALLATION AND OPERATION
DMXSM-H18
1. The unit will mount into any standard size 19 inch rack.
2. Ensure that the power switch on the front panel is turned off before
making any connections.
3. Plug the output signal from your DMX console into the front or rear
DMX-IN connector.
4. Use the eight front or rear DMX-OUT connectors to send separate
DMX signals to your DMX devices.
5. Switch power on.
DMXSM-H81
1. The unit will mount into any standard size 19 inch rack.
2. Ensure that the power switch on the front panel is turned off before
making any connections.
3. Plug up to eight DMX input signals into the front or rear DMX-IN
connectors.
4. Use the front or rear DMX-OUT connector for the merged outbound
DMX signal.
5. Switch power on.
NOTE: The DMXSM-H81 operates in a Highest Takes Precedence or
HTP mode. This means that if two or more of the same channels are
being received, the DMXSM-H81 will output the level of whichever
channel is highest.
FOR CANADA ONLY
For warranty information and/or product returns, residents of Canada should contact Leviton in writing at Leviton Manufacturing of Canada Ltd to the attention of the
Quality Assurance Department, 165 Hymus Blvd, Pointe-Claire (Quebec), Canada H9R 1E9 or by telephone at 1 800 405-5320.
Leviton warrants to the original consumer purchaser and not for the benefit of anyone else that this product at the time of its sale by Leviton is free of defects in materials and workmanship
under normal and proper use for two years from the purchase date. Leviton's only obligation is to correct such defects by repair or replacement, at its option. For details visit www.
leviton.com or call 1-800-824-3005. This warranty excludes and there is disclaimed liability for labor for removal of this product or reinstallation. This warranty is void if this product
is installed improperly or in an improper environment, overloaded, misused, opened, abused, or altered in any manner, or is not used under normal operating conditions or not in
accordance with any labels or instructions. There are no other or implied warranties of any kind, including merchantability and fitness for a particular purpose, but if any implied
warranty is required by the applicable jurisdiction, the duration of any such implied warranty, including merchantability and fitness for a particular purpose, is limited to two years. Leviton
is not liable for incidental, indirect, special, or consequential damages, including without limitation, damage to, or loss of use of, any equipment, lost sales or profits or
delay or failure to perform this warranty obligation. The remedies provided herein are the exclusive remedies under this warranty, whether based on contract, tort or otherwise.
User Guide
LIMITED 2 YEAR WARRANTY AND EXCLUSIONS
For Technical Assistance Call: 1-800-824-3005 (U.S.A. Only) www.leviton.com
DMXSM-H81 Merger
SPECIFICATIONS
• Power Input: 12-24VDC at device, AC 100V-240V to 12VDC
supply provided.
• Control signal: DMX512.
• DMXSM-H18 front connectors: XLR 5-pin
(one DMX IN, eight DMX OUT).
• DMXSM-H18 rear connectors: Hard wire
(one DMX IN, eight DMX OUT).
• DMXSM-H81 front connectors: XLR 5-pin
(eight DMX IN, one DMX OUT).
• DMXSM-H81 rear connectors: Hard wire
(eight DMX IN, one DMX OUT).
• Weight: 1.16 Kg (2.56 Lbs).
• Dimensions: 482 W x 100 D x 44 H mm (19.0 W x 3.9 D x 1.7 H inches).
DMXSM-H18 Splitter
DMXSM-H81 Merger
Front and Rear Panels - Pinout for XLR Connectors
Pin 4: N/C
Pin 1: Common
Pin 2: Data - Pin 5: N/C
Pin 3: Data +
Brochage des connecteurs XLR avant et arrière
Broche 4: Non utilisée
Broche 1: Commun
Broche 5: Non utilisée
Broche 2: Données (-)
Broche 3: Données (+)
Paneles Frontales y Posteriores - Pin de salida para los Conectores XLR
Pin 4: N/C
Pin 1: Comun
Pin 5: N/C
Pin 2: Data -
Pin 3: Data +
DI-000-DMXSM-25C
