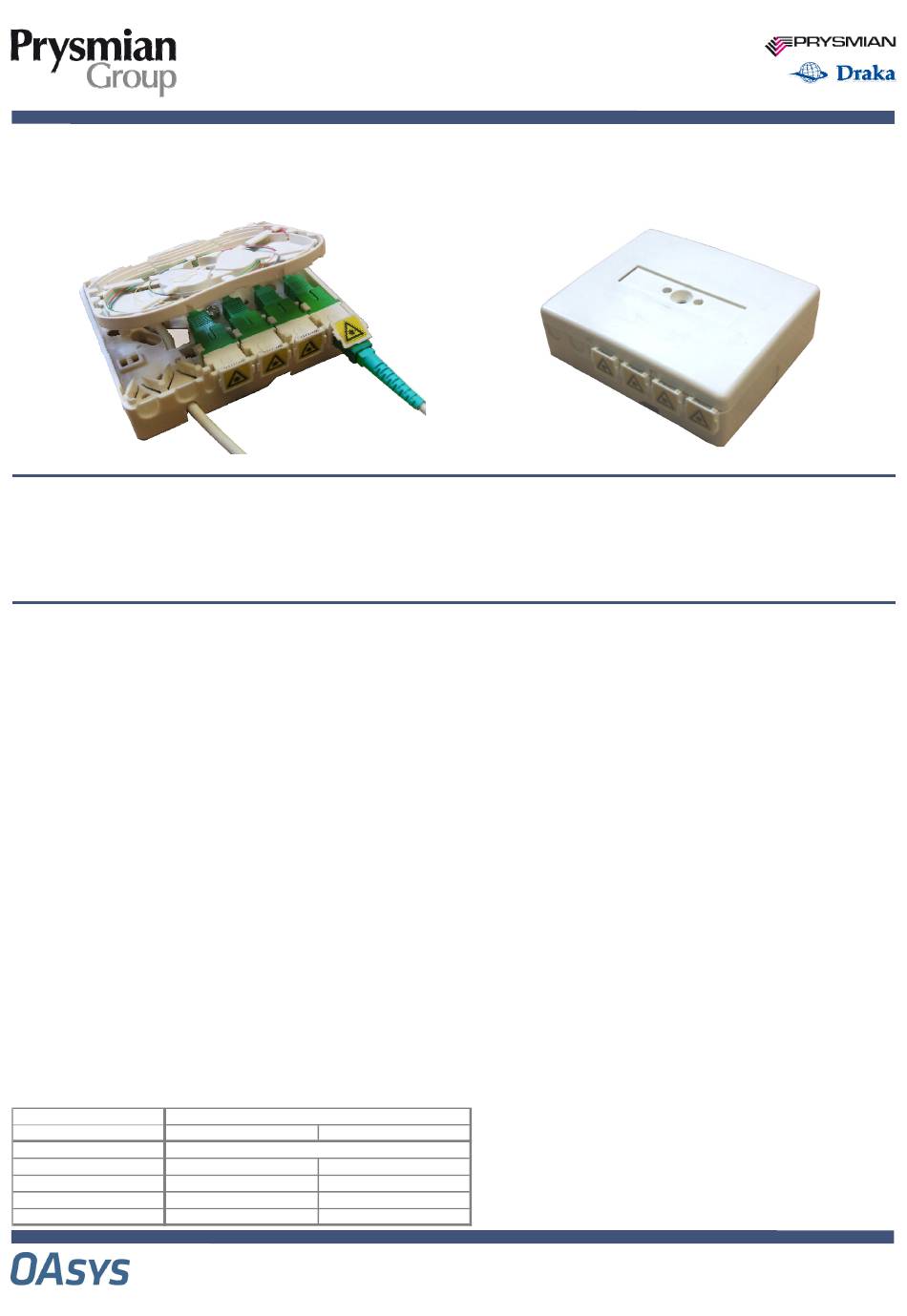

Prysmian MK 2 Installation Manual

Compact Termination Box MK2
Prysmian Part Numbers: See Table Below
The Compact Termination Box MK 2 is designed for use in residential and business applications for the termination
of up to four optical fibres. The wall box enables the termination of a customer drop cable onto SC/UPC or SC/APC
type pigtails and adapters. It can also be used as a splice point between two cables. The unit is supplied with a
fixing bracket for mounting directly onto a wall or onto a DIN rail. The unit can be supplied with pigtails and
adapters pre-installed, and can also be supplied o a reel with a length of cable pre-installed. Pigtails supplied are
G657A1 fibre (others available on request) and adapters are fitted with a protection shutter.
Features and Benefits
• Compact & attractive design for interior wall mounting.
• Cables can enter unit from rear, bottom, top, right hand side or left hand
side.
• Supplied with a bracket for wall mounting or mounting directly onto a DIN
Rail.
• G657A1 fibre pigtails supplied as standard. All fibres are positively
managed to maintain a 20mm minimum bend radius.
• Flip tray to allow access to connectorised tails and cable entry.
• Removable cover for easy access. The cover contains a cut out for a label
to be inserted and a further transparent cover is supplied to fit over the
label.
• Supplied with a security screw to prevent unauthorised access.
• Unit manufactured from fire resistant UL94-V0 rated material.
• Patchcords exit unit on bottom face and are protected by the use of
shuttered adapters.
• Standard colour is white RAL9016. Other colours are available on request.
• Can be supplied on a reel with a pre-installed stub of cable for direct
mounting without the need to open the box. Contact Prysmian for further
information.
Part Numbers
Empt y
1 Pigt ail & 1 Adapt er
2 Pigt ails & 2 Adapt ers
3 Pigt ails & 3 Adapt ers
4 Pigt ails & 4 Adapt ers
Wall Mounted Products
C o nne c t o r T ype
S C / UP C S C / A P C
X C P S C 0 113 5
X C P S C 0 112 7 X C P S C 0 112 8
X C P S C 0 112 9 X C P S C 0 113 0
X C P S C 0 113 1 X C P S C 0 113 2
X C P S C 0 113 3 X C P S C 0 113 4
www.prysmiangroup.com

Kit Contents

• 1 x Base
• 1 x Cover
• 1 x Splice Tray
• 1 x Wall or DIN Rail Fixing Bracket
• N x Pigtails (See part numbers)
• N x Adapters (See part numbers)
• 1 x Cover Fixing Screw
• 1 x Label Cover
• 1 x Blank Label
• 2 x Cable Ties
• 1 x Installation Guide
• 2 x Fixing Screws
• 2 x Wall Plugs
Note: Splice protectors are not
supplied. Splice protectors can be
ordered separately. See additional
items.
Additional Items
• Splice Protectors
• Adapters
• Pigtails
• Security Screwdriver (tool)
WM044, Issue 06, May 2012
