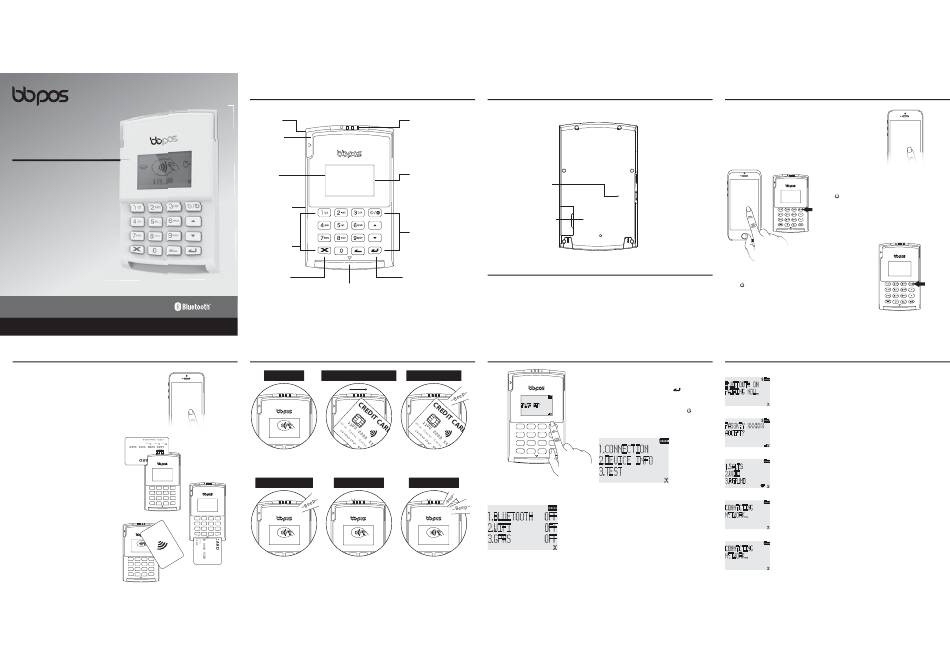

BBPOS WisePad 2 Instruction Manual

™
WisePad 2
mPOS Solution Combining NFC, MSR
and EMV Chip Reading Functions
Compatable with:
iOS, Android, Windows Phone 8, MS Windows
www.bbpos.com
Quick Start Procedures
STEP 4
Select WisePad 2 in the Scanned Device List on your
Scanned
smartphone/tablet. Then, your WisePad 2 will show the
Device List
Home Menu when the devices are paired.
**For first time pairing, you need to follow the instructions to input
"PASSKEY" to complete pairing with your Android devices.
STEP 5
You can follow your application instruction
to start the transaction process, then
tap/swipe/insert the payment card and
input PIN (per request) to complete the
transaction.
**Remarks: If you pay via swiping card or inserting
EMV IC card, please ensure that the magstripe or
EMV chip of the card is facing the right direction. If
you pay by using NFC card, please ensure you tap
the NFC payment card within 4cm range on top of
the NFC marking.**

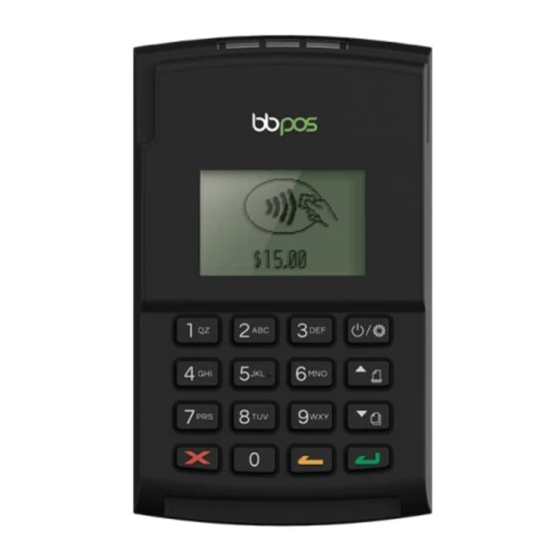

Index & Accessories (Fig.1)
FRONT
Lanyard hole NFC LED indicators
For magstripe
card reading
with LED indicator
LED indicator
LCD display
Power on / Setting
Up and Down buttons
Secured PIN pad
for PIN input
CANCEL button CLEAR & ENTER Buttons
For EMV card reading
with LED indicator
NFC Status Indicators
First LED ON LEDs ON in ascenging order 4 LEDs ON + "Beep"
Ready for tapping card Reading card information Card reading process
successfully completed
First LED ON + "Beep" First LED flashing Error, please retry
Transaction completed Standby mode Error, please retry
Index & Accessories (Fig.1)
BACK
Reset button
SAM card slots
Package Contents
Device x 1
Lanyard x 1
USB cable x 1
Instruction Manual x 1
Set Up Connection
STEP 1
Fig. 1a
Press and hold the Power On/Off button to
turn on WisePad 2, then press "
confirm. (refer to Fig. 1a)
When "STANDBY ..... " is shown, press " " or
"X" to enter the Setting Menu. (Fig. 1b)
Fig. 1b - Setting Menu
STEP 2
Fig. 2 - Connection Menu
(refer to Fig. 3)
Choose connection method, press
"1" to connect via Bluetooth®
"2" to connect WIFI
"3" to connect
Quick Start Procedures
STEP 1
This device can support iOS (iOS 5.0 or above), Android
(Android 2.1 or above), Windows Phone 8 & MS Windows.
Download official application from app stores.
STEP 2
Turn on the device pairing function of your
APP smartphone/tablet. Then, press and hold
DOWNLOAD
" " to turn on WisePad until "STANDBY"
displays on the LCD.
**Please ensure that Bluetooth® function of
your smartphone/tablet is ON before devices
pairing.
STEP 3
Press " " to enter the Setting Menu, then press "1"
for Bluetooth pairing.
Set Up Connection
i. Bluetooth® connection
Fig. 3a - Bluetooth® Pairing
Enter the Bluetooth® pairing mode (Fig. 3a) after pressing "1".
" to
**For first time pairing, you may need to input "PASSKEY" to complete
the pairing process with your Android devices. (Fig 3b)
Fig. 3b - Passkey Screen
After device is successfully paired, WisePad 2 will enter the
Home Menu (Fig. 3c).
ii. WiFi network connection
Enter the WiFi network connecting mode (Fig. 3d) after
Fig. 3c - Home Menu
pressing "2".
After network is successfully connected, WisePad 2 will enter
the Home Menu (Fig. 3c).
Fig. 3d - Connecting WiFi
iii. GPRS connection
Please ensure the SAM/SIM cards are properly inserted to
card slots before GPRS connection.
Enter the GPRS network connecting more (Fig. 3e) after
Fig. 3e - Connecting GPRS
pressing "3". After network is successfully connected,
WisePad 2 will enter the Home Menu (Fig. 3c).
APP
DOWNLOAD
