Features


Power:
o
o

Direct operation with U-Prox IP500 panels
o
o
o

One micro USB B port for network settings configuring and firmware upgrade

Isolated Ethernet port, 10BASE-T/100BASE-TX, 802.3af PoE

Adjusted with U-Prox IP software. Supports automatic configuration for one-range
network.

Real-time clock

Non-volatile memory:

Temperature range: 0 -55

Maximum relative humidity 80% without condensation

Panel

The view of the control panel is shown in Fig. 1
Location of jumpers and connectors on control panel board and their function
shown on Fig. 2:
U-Prox IC L Installation
Micro USB B
IEEE 802.3af PoE: power class 0, up to 12,95W:
ISM band (915.5-927.5 MHz) device with bi-directional communication
Guaranteed range of 20 m
U-Prox HE and U-Prox HW repeaters for range extension
Events
Connected devices
0
C at 80.% relative humidity.
2
1

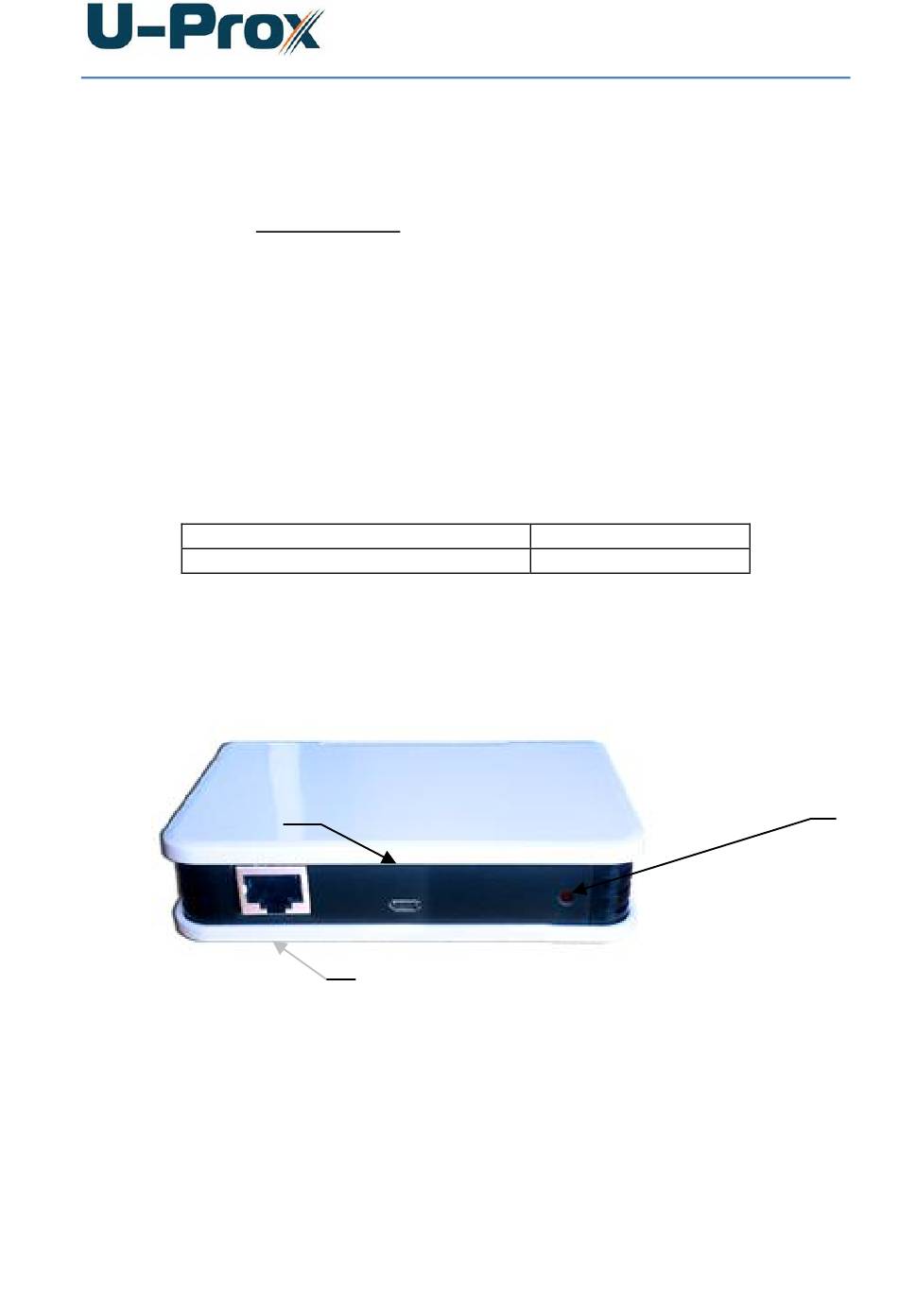

Figure 1. U-Prox IC L
35000
512
1. Ethernet port
2. Micro USB B port
3. Reset button
3
