Summary of Contents for ESICAM EH05

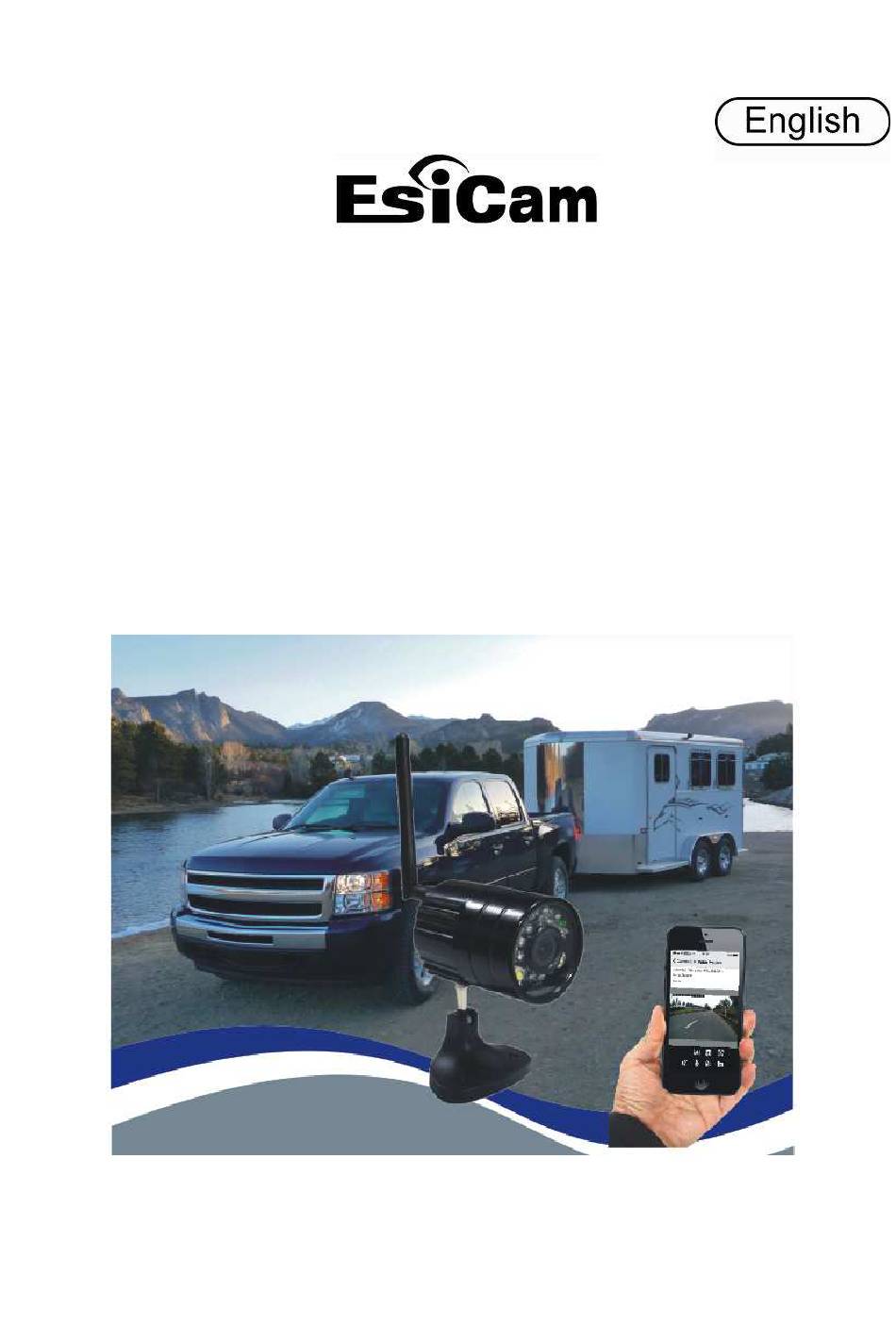

Page 1 Portable WiFi Camera viewed by mobile phone Infrared Night Vision / white Flashlight Water Resistant Magnetic base Model: EH05 Please read carefully and thoroughly this manual before any attempt to operate this product and retain it for your future reference.
Page 2: Table Of Contents
INTRODUCTION Notice Warranty Restrictions Maintenance PRODUCT Included Parts Feature Locations HOW TO USE 4-18 Charging the Camera Using the Camera Using the Camera with smart phone 6-14 Manage cameras on PC (optional) 14-17 Night Vision Water Resistant Install TF memory card SPECIFICATIONS TROUBLESHOOTING APPROVAL INFORMATION...
Page 3: Introduction
INTRODUCTION Thank you for purchasing this wireless camera kit. This product works at ISM- 2.4GHz frequency band, which can be legally used worldwide without permission. We feel confident that you will be pleased with the quality and features of this product. The camera has CMOS image sensor and a transmitting module to capture the image and wirelessly transmits the image to your Smart phone.
Page 4 FCC Warnning: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
Page 5: Restrictions
Restrictions 1. DO NOT use this product to violate one's privacy. Monitoring one's activities without consent is illegal and this product is not designed and manufactured for such purposes; 2. DO NOT put this product near any medical equipment. Radio waves might potentially cause breakdown of electrical medical equipment.
Page 6: Product
PRODUCT Included Parts This package comes with the following items. Please check whether they are all included in the box, if one or some is missing, contact the retailer for replacement. ① Camera x1 ② AC power charger x1 ③ Antenna x1 ④...
Page 7: Charging The Camera
You can scan the QR code on the side of product box or on the label of Quick Guide (Or search APP from Google play for Android phone, Apple store for iPhone). Please refer Quick Guide for QR code image. 2.
Page 8 3. Mount the Camera Mount the camera on the trailer tailgate, and then adjust a suitable angle to see the htich bolt you want to see. Camera can be attached by strong magnetic base or Gopro compatible holder 4. Power On the Camera After the camera is fully charged, press the camera power button to turn on your camera (Option) You can turn on the white LED to use it as a flash in darkness, or make the...
Page 9 5. Viewing the Camera With Smart Phone a) AP Mode (Access camera directly without wireless router) Note: AP mode: Camera can function as a WiFi access point(hotspot). Smart phone can connect with camera directly. Chose the WiFi SSID named" IPCAM_xxx" on smart phone WiFi access list(FIG-01) FIG-01 FIG-02 1) Enter WiFi password: leave it as blank or enter “88888888”...
Page 10 FIG-03 FIG-04 5) Camera will search and display with ID code. (FIG-04) 6) Click the ID code and enter the camera setup menu. You can edit your camera name and then click “Save “ (You can leave password blank) (FIG-05), and you will see the “Camera List”...
Page 11 7) The camera which has a Bright Blue point icon show that the camera has connected to your Smart phone.(FIG-06) 8) Tap on the camera which you want to see,(FIG-06), and you can start enjoying camera lives. (FIG-07) FIG-07 FIG-08 2.
Page 12 a List of WiFi SSID nearby(FIG-09): FIG-09 FIG-10 2) Choose the WiFi SSID of your wireless router, input the correct password, click “OK”, (FIG-10) Your camera will be rebooted and shift to STA mode. The wifi icon will be displayed as bright blue color as below. If wrong password is input, you camera will not be able to establish valid WiFi connection to router and camera waits another 30 seconds to go back AP mode and then you need setup camera again with correct password to function in STA mode.
Page 13 FIG-11 FIG-12 4. Main Function of Camera APP When you enter the video interface. (FIG-07), you can operate the main function of the APP as following: 1) Click to set image parameter (FIG-13) such as brightness, contrast, saturation, sharpness, mirror and flip. Mirror function can exchange the left and right of the image when you put your camera facing to the tail of your...
Page 14 FIG-13 2) You can change the video quality by choose your prefer quality level by click icon IOS APP selection: Standard: VGA 640x480 resolution 1280x720 resolution Android APP selection: High definition: 1280x720 resolution Standard definition: VGA 640x480 resolution Smooth: keep the video steam faster and fluent ( less delay) 3) You can take a picture directly by clicking and save its in local memory storage of smart phone.
Page 15 1) Scheduled recording function: When you use the camera for home security, you can set as following: Enter the main menu of the camera list, tap on icon, then tap on “Setting” icon (FIG- 08), then enter camera setting menu. Click “...
Page 16 FIG-17 FIG-18 Click “Set” to complete alarm settings and back to the camera list, you will see the alarm icon when alarm is triggered to remind you to check the recorded alarm video on TF card of the camera : If the camera is connected to internet by router, and you set the receive push notice to ON（FIG-19）...
Page 17 Enter the main menu of the camera list, Click icon (FIG-08), then click the TF icon as following(FIG-21) to check the recorded video in TF card (FIG-22). Select a video file to open. you can play video right away. Or download it to your phone FIG-21 FIG-22 3) User name and authorization setting:...
Page 18: Night Vision
Night Vision The built-in Infra-red lights in your camera provides night vision for low light conditions. The Infra-red lights will be automatically activated at night. The picture will turn to Black & White (monochrome) in Night Vision status. Water Resistant The water resistance feature is for the camera only.
Page 19: Specifications
SPECIFICATIONS Item Description Specification/Parameter Working Mode P2P/AP/STA Transmission WiFi-------IEEE 802.11B/G/N CSMA/CA standard/Protocol Modulation Mode OFDM/DBPSK/DQPSK/CCK Wireless Transmission Distance 50m(open area site) Receiving Sensitivity -85dBm@11M Transmission Power 17dBm (Max.) Antenna 2dBi /External Imaging Sensor 1/4″CMOS Total Pixels(Max) 1280x720 ( 1 Mega) Resolution 1280x720/640x480/320x240 Video...
Page 20: Troubleshooting
1. Interference signal from other source Low frame rate video 2. Check the distance & blocks 3. Check the video quality setting Thank you for using the EsiCam Phone: 626-560-3456 Email: sales1@oceanelec.cn Ocean Electric Co. Ltd. 200 Centreport Dr.Suite 365,Greensboro, NC 27409...
