INNACOMM W3400 User Manual

Four-port adsl 2+ wireless
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
W3400
Four-port ADSL 2+ Wireless
Router
User manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the W3400 and is the answer not in the manual?

Questions and answers

Related Manuals for INNACOMM W3400

Summary of Contents for INNACOMM W3400

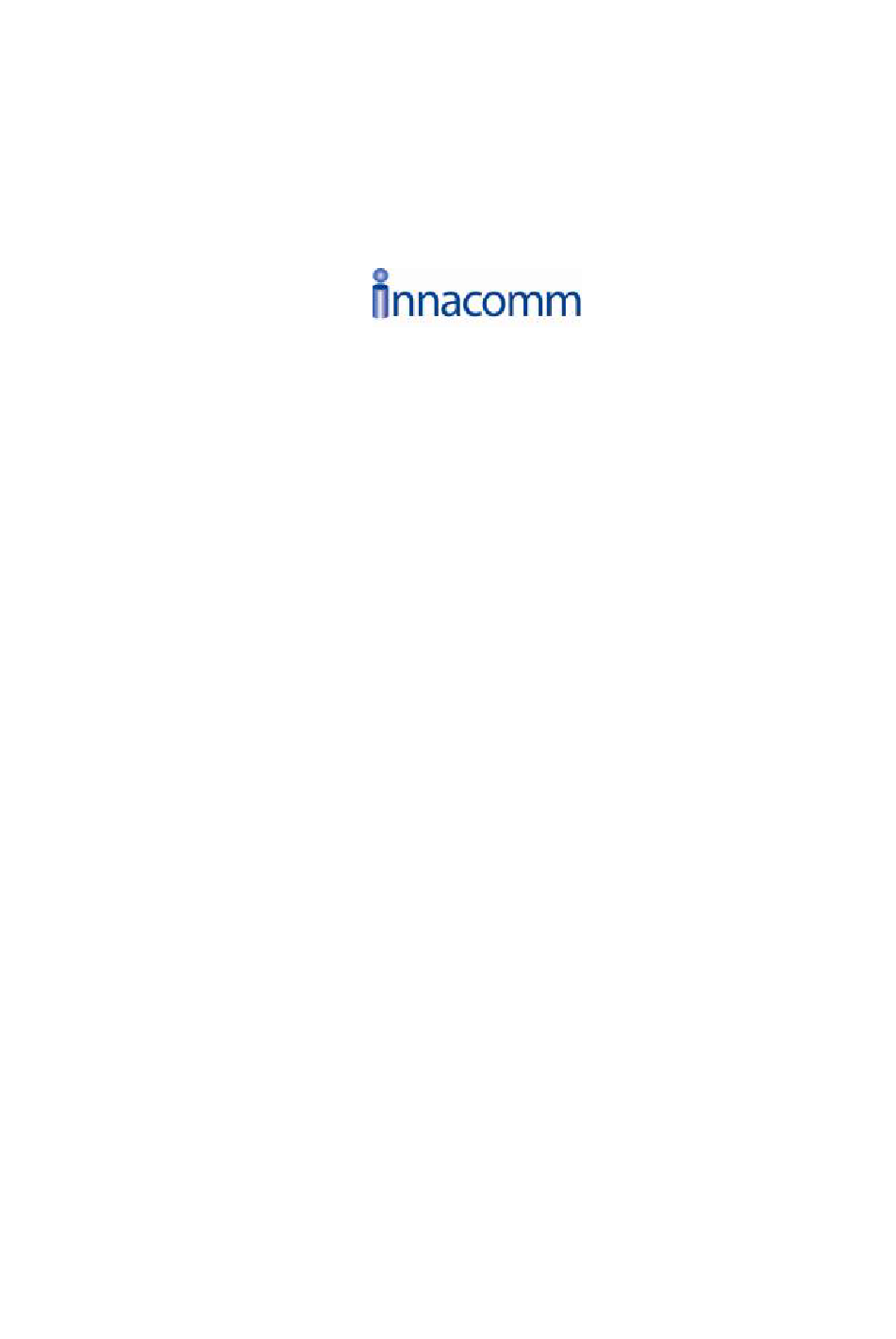

  • Page 1 W3400 Four-port ADSL 2+ Wireless Router User manual...
  • Page 2 User Manual...

  • Page 3: Table Of Contents

    User Manual Contents Introduction ................错误！未定义书签。 Safety Cautions..........错误！未定义书签。 LEDs and Interfaces .................1 System Requirements...............5 Features ....................5 Hardware Installation....................7 About the Web Configurator ................9 Access the Router................9 Status....................10 3.2.1 System ...................10 3.2.2 LAN ..................11 3.2.3 WLAN..................11 3.2.4 WAN..................11 3.2.5 Port Mapping .................12 3.2.6 Statistic ..................12...
  • Page 4 User Manual 3.5.6 MBSSID .................35 WAN ....................35 3.6.1 WAN Interface ...............36 3.6.2 ATM Settings .................39 3.6.3 ADSL Settings ...............40 Advance ..................41 3.7.1 DNS ..................41 3.7.2 Firewall ..................42 3.7.3 Virtual Server .................45 3.7.4 Routing ..................46 3.7.5 IP QOS...................47 3.7.6 Anti-dos..................48 3.7.7 Port Mapping .................49 3.7.8 Other ..................50...

  • Page 5: Introduction

    User Manual Introduction The 4 ports wireless Modem is a router with wireless local area network (WLAN) function. It is a high integrated residential broadband access device, which provides one ADSL2+ RJ11 interface, four built-in Ethernet interfaces, and one wireless access point.
  • Page 6 User Manual – Security: NAT, IP filtering, password authentication, and denial of service (DoS) – Compatible with IEEE 802.11b and IEEE 802.11g...
  • Page 7 User Manual – Application – Broadband Internet access sharing – Higher data rate broadband sharing – Audio, video streaming, and transfer – PC file and application sharing – Network and online gaming Parameters and Specifications Parameter Specifications System Spec Chipset RTL8671BH 2lays SDRAM Serial Flash...

  • Page 8: Leds And Interfaces

    User Manual Fully compliant with IEEE802.3/802.3u auto-negotiation function Ethernet Feature Support 10 base-T and 100 base-TX Support half duplex and full duplex Support back pressure flow control for half duplex, IEEE02.3x flow control for full duplex Support MDI/MDIX auto cross Wireless Feature Standard: IEEE802.11b and IEEE 802.11g Frequency Band: 2.4 GHz (ISM frequency bands)
  • Page 9 User Manual Figure 1 Front panel The following table describes the LEDs of the device. LEDs Color Status Description The device is powered on. Green The device is powered off. Power The device is initializing. Blinks The firmware is upgrading. The device is linked successfully to a DSLAM.
  • Page 10 User Manual LEDs Color Status Description The wireless is not actived. Rear Panel The page shown in the following figure shows the rear panel of the device. Figure 2 Rear panel The following table describes the interfaces of the device. Interface Function Power on or off.

  • Page 11: System Requirements

    User Manual 1.2 System Requirements Recommended system requirements are as follows: = A 10/100 base-T Ethernet card is installed on your PC = A hub or Switch. (attached to several PCs through one of Ethernet interfaces on the device) = Operating system: Windows 98SE, Windows 2000, Windows ME, Windows XP or Windows Vista = Internet Explorer V5.0 or higher, Netscape V4.0 or higher, or firefox 1.5 or higher.
  • Page 12 User Manual = Web user interface = Telnet CLI = System status display = PAP and CHAP = IP filter = IP QoS = Remote access control = Line connection status test = Remote management (telnet and HTTP) = Backup and restoration of configuration file = Ethernet supports crossover...

  • Page 13: Hardware Installation

    User Manual Hardware Installation Step 1 Connect the ADSL port of the device and the Modem port of the splitter through a telephone cable. Connect the phone to the Phone port of the splitter through a cable. Connect the incoming line to the Line port of the splitter.
  • Page 14 User Manual Figure 4 Connection diagram (connecting a telephone set before the splitter) Connection 1 is recommended. Note: When connection of Figure 4 is used, the filter must be installed close to the telephone lines. Do not use the splitter instead of the filter. Installing a telephone directly before the splitter may lead to a failure of connection between the device and the central offices, or failure Internet access, or slow the connection speed.

  • Page 15: About The Web Configurator

    User Manual About the Web Configurator This charpter describes how to configure the device by using the Web-based configuration utility. 3.1 Access the Router The following is the detailed description of accessing the device for the first time. Step 1 Open the Internet Explore (IE) browser and enter http://192.168.1.1.

  • Page 16: Status

    User Manual If you enter as a common user, you can check the status of the router, but can not change the most of the settings. 3.2 Status In the navigation bar, choose Status. The Status page that is displayed contains: System, LAN, WLAN, WAN, Port Mapping, Statistic and ARP Table.

  • Page 17: Lan

    User Manual 3.2.2 LAN Choose Status > LAN. The page that is displayed shows some basic LAN settings of the device. In the LAN page, you can view the LAN IP address, subnet mask, DHCP server status, MAC address and DHCP client table. If you want to configure the LAN network, refer to the chapter 3.4.1 LAN Settings.

  • Page 18: Port Mapping

    User Manual 3.2.5 Port Mapping Choose Status > Port Mapping. The page that is displayed shows the mapping relation and the status of port mapping. 3.2.6 Statistic Choose Status > Statistic. The Statistic page that is displayed contains Traffic Statistic and DSL Statistic. 3.2.6.1 Traffic Statistic Choose Traffic Statistic.
  • Page 19 User Manual 3.2.6.2 DSL Statistic Choose DSL Statistic. In the Statistic-ADSL page, you can view the ADSL line statistics, downstream rate, upstream rate and other information.

  • Page 20: Arp Table

    User Manual 3.2.7 ARP Table Choose Status > ARP Table. In the ARP Table page, you can view the table which shows a list of learned MAC addresses. 3.3 Wizard 3.3.1 Wizard Wizard enables fast and accurate configuration of your Internet connection and other important parameters.
  • Page 21 User Manual = VPI (virtual path identifier): The virtual path between two points in an ATM network, and its valid value is from 0 to 255. = VCI (virtual channel identifier): The virtual channel between two points in an ATM network, ranging from 32 to 65535 (0 to 31 is reserved for local management of ATM traffic).
  • Page 22 User Manual The following table describes the parameters in this page. Description Field Select the WAN connection type. You can select Connection PPPoA, PPPoE, 1483 MER, 1483 Routed or 1483 Type Bridged. Select the method of encapsulation provide by Encapsulation your ISP from the drop-down list box.
  • Page 23 User Manual Select it to enable the NAT functionof the router. If you do not select it and you want to access the Internet normally, you must Enable NAT add a route on the uplink equipment. Otherwise the access to the Internet fails. Normally, it is required to enable NAT.
  • Page 24 User Manual The following table describes the parameters of this page. Description Field Enter the IP address of the router. For LAN IP example, 192.168.1.1 (default IP address). Enter the subnet mask of the LAN IP Subnet Mask address. Select it to enable the secondary LAN IP Enable Secondary IP address.
  • Page 25 User Manual Description Field Next Go to the next page. After setting, click Next. The page shown in the following figure appears. Select 1483 MER in the Connection Type page and click Next. The page shown in the following figure appears. The following table describes the parameters of this page.
  • Page 26 User Manual Description Field provided by your ISP. WAN Subnet Enter the subnet mask of the IP address of the Mask WAN interface provided by your ISP. Default Gateway Enter the IP address of the default gateway. Obtain DNS Obtain the IP address of the DNS server server assigned by the uplink equipment, such as BAS.
  • Page 27 User Manual The following table describes the parameters of this page. Field Description None Obtain an IP The dynamic IP address is not fixed. Your ISP address assigns the different one each time. automatically Use the following IP The static IP address that your ISP provides. address Enter the IP address of the WAN interface WAN IP Address...

  • Page 28: Lan

    User Manual Field Description Select it to enable the NAT function of the router. If you do not select it and you want to access the Internet normally, you must add a Enable NAT route on the uplink equipment. Otherwise the access to the Internet fails.

  • Page 29: Dhcp Settings

    User Manual Field Description Enter the IP of LAN interface. It is recommended to use an address from a block that is reserved IP Address private use. This address block 192.168.1.1- 192.168.255.254. Enter the subnet mask of LAN interface. The Subnet Mask range of subnet mask is from 255.255.0.0-255.255.255.254.
  • Page 30 User Manual Select DHCP Relay in the DHCP Settngs page. The page shown in the following figure appears. The following table describes the parameters of this page. Field Description Select it, the router acts a surrogate DHCP server. It relays the DHCP requests and DHCP Relay reponses between the remote server and the client.
  • Page 31 User Manual The following table describes the parameters in this page. Field Description If set to DHCP server, the router can assign IP addresses and IP default gateway. DNS servers can DHCP Mode be Windows95, Windows NT and other systems that support the DHCP client.
  • Page 32 User Manual Field Description Address Apply Save the settings of this page. Changes Click it, the Static IP Assignment Table page MAC-Base appears. It allows you to assign IP addresses on the Assignment LAN to specify individual computers based on their MAC address.
  • Page 33 User Manual Refresh Refresh the page. Close Close the page. Click MAC-Based Assignment in the DHCP Server Setup page. The page shown in the following figure appears. In this page, you can assign the IP addresses on the LAN to the specific individual computers based on their MAC address.

  • Page 34: Wlan

    User Manual Close Close the page. MAC-Base It shows the assigned IP address based on the Assignment Table MAC address. 3.5 WLAN In the navigation bar, choose WLAN. The WLAN page that is displayed contains Basic Settings, Security, Advance Settings, Access Control, WPS, and WDS Settings.

  • Page 35: Security

    User Manual Field Description unique name to identify the router in the wireless LAN. Wireless stations associating to the router must have the same SSID. Enter a desciptive name. A channel is the radio frequency used by 802.11b/g wireless device. Channels available depend on your geographical area.
  • Page 36 User Manual Description Field SSID Type Select the SSID. You can choose None, WEP, WPA (TKIP), WPA2 (AES) and WPA2 Mixed. Wired equivalent privacy (WEP) entrypts data frames before transmitting over the wireless Encryption network. Wi-Fi protected access (WPE) is a subset of the IEEE802.11i security specification draft.
  • Page 37 User Manual The following table describes the parameters of this page. Description Field SSID TYPE Select the SSID. Key Length Select 64-bit or 128-bit to use data encryption. If you chose 64-bit, you can choose ASCII (5 characters) or Hex (10 characters). Key Format If you chose 128-bit, you can choose ASCII (13 characters) or Hex (26 characters).

  • Page 38: Advance Settings

    User Manual Description Field characters), then enter ASCII characters. If you chose 128-bit and Hex(26 characters), then enter any 26 hexadecimal characters. Apply Changes Save the changes of this page. Close Close the page. Undo Refresh the page. 3.5.3 Advance Settings Choose WLAN >...

  • Page 39: Access Control

    User Manual Field Description collisions due to hidden node. A RTS defines the biggest size data frame you can send before a RTS handshake invoked. The RTS threshold value is between 0 and 2347. If the RTS threshold value is greater than the fragment threshold value, the RTS hankshake do not occur.

  • Page 40: Wps

    User Manual Field Description Apply Changes Save the changes of select access control mode. Enter the MAC address of the wireless station that MAC Address are allowed or denied access to your router in this address field. The MAC address is added to current access control list.

  • Page 41: Mbssid

    User Manual Use the PBC mode to connect to the Start PBC access point. Client PIN Number The PIN number of client use. Use the PIN mode to connect to the Start PIN access point. 3.5.6 MBSSID Choose WLAN > MBSSID. The page shown in the following figure appears. In this page, you can configure the vitual SSID.

  • Page 42: Wan Interface

    User Manual In the navigation bar, choose WAN. In the WAN page that is displayed contains WAN Interface and ADSL Settings. 3.6.1 WAN Interface Choose WAN > WAN Interface. The page shown in the following figure appears. You can configure WAN Interface of the router. The following table describes the parameters of this page.
  • Page 43 User Manual Field Description Encapsulation You can choose LLC or VC-Mux. You can choose 1483 Bridged, 1483 MER, Channel Mode PPPoE, PPPoA and 1483 Routed. Admin Status Select Disable, this PVC is unusable. Select it to enable the NAPT function of the router.
  • Page 44 User Manual Field Description address. Unnumbered Select it to enable IP unnumbered function. Default Route After configuring the parameters of this page, click it to add a new PVC into the current ATM VC table. Select a PVC in the current ATM VC table, then modify the parameters of this PVC.

  • Page 45: Atm Settings

    User Manual 3.6.2 ATM Settings Choose WAN > ATM Settings. The page shown in the following figure appears. In this page, you can configure the parameters of the ATM for your ADSL router, including QoS type, PCR, CDVT, SCR and MBS.

  • Page 46: Adsl Settings

    User Manual 3.6.3 ADSL Settings Choose WAN > ADSL Settings. The page shown in the following figure appears. You can select the DSL modulation. Normally, the user needs to remain this factory default settings. The router supports these modulations: G.Dmt, G.lite, T1.413, ADSL2, ADSL2+, AnnexL and AnnexM.

  • Page 47: Advance

    User Manual 3.7 Advance In the navigation bar, choose Advance. The Advance page that is displayed contains DNS, Firewall, Virtual Server, Routing, IP QOS, Anti-dos, Port Mapping and Other. 3.7.1 DNS Choose Advance > DNS. The DNS page that is displayed contains DNS Server and DDS.

  • Page 48: Firewall

    User Manual Field Description establishment. Select it and enter the primary and optional Manually secondary IP addresses of the DNS server. Apply Save the settings of this page. Changes Reset Refresh this page. Selected 3.7.1.2 DDNS Choose DDNS. The page shown in the following figure appears. This page is used to configure the dynamic DNS address from DynDNS.org or TZO.
  • Page 49 User Manual 3.7.2.1 IP/Port Filter Choose IP/Port Filter. The page shown in the following figure appears. Entries in this table are used to restrict certain types of data packets through the gateway. These filters are helpful in securing or restricting your local network. Click Apply Changes to save the settings of this page.
  • Page 50 User Manual Click Apply Changes to save the settings of this page. Click Add to add a new rule of the MAC filter. 3.7.2.3 URL Blocking Choose URL Blocking. The page shown in the following figure appears. This page is used to block a fully qualified domain name and filtered keyword, such as www.

  • Page 51: Virtual Server

    User Manual 3.7.3 Virtual Server Choose Advance > Virtual Server. The page shown in the following figure appears. The page that is displayed contains Services, DMZ Settings and IP Address Mapping. 3.7.3.1 Services Choose Services. The page shown in the following figure appears. This page is used to enable the servers in the local network.

  • Page 52: Routing

    User Manual Step 1 Select Enable DMZ to enable this function. Step 2 Enter an IP address of the DMZ host. Step 3 Click Apply Changes to save the settings of this page. 3.7.4 Routing Choose Advance > Routing. The page shown in the following figure appears. The page that is displayed contains RIP and Static Route.

  • Page 53: Ip Qos

    User Manual 3.7.4.2 Static Route Choose Static Route. The page shown in the following figure appears. This page is used to configure the routing information. You can add or delete IP routes. Click Show Routes. The table shown in the following figure appears. The table shows a list of destination routes commonly accessed by your network.

  • Page 54: Anti-Dos

    User Manual Step 1 Enable IP Qos Step 2 Click Configurate to add a new IP Qos rule. The page shown in the following figure appears. 3.7.6 Anti-dos Choose Advance > Anti-dos. The page shown in the following figure appears. Denial-of-service attack (DoS Attack) is a type of attack on a network that is designed to bring the network to its knees by flooding it with useless traffic.

  • Page 55: Port Mapping

    User Manual Click Apply Changes to save the settings of this page. 3.7.7 Port Mapping Choose Advance > Port Mapping. The page shown in the following figure appears.

  • Page 56: Other

    User Manual 3.7.8 Other Choose Advance > Other. The page shown in the following figure appears. The page that is displayed contains IGMP Proxy, UPnP, Bridge and IP PassThrough. 3.7.8.1 IGMP Proxy Choose IGMP Proxy. The page shown in the following figure appears. IGMP proxy enables the system to issue IGMP host messages on behalf of hosts that the system discovers through standard IGMP interfaces.
  • Page 57 User Manual Click Apply Changes to save the settings of this page. 3.7.8.2 UPNP Choose UPNP. The page shown in the following figure appears. This page is used to configure UPnP. The system acts as a daemon after you enable it. Click Apply Changes to save the settings of this page.
  • Page 58 User Manual Click Show MACs. The page shown in the following figure appears. This table shows a list of learned MAC addresses for this bridge. 3.7.8.4 IP PassThrough Choose IP Pass Through. The page shown in the following figure appears. In this page, you can enable and configure IP passthrough.

  • Page 59: Admin

    User Manual 3.8 Admin In the navigation bar, choose Admin. The page that is displayed contains Access Control, Commit/Reboot, Password, Backup/Restore, Upgrade Fireware, Time Zone, System Log, SNMP, TR069 and ACL. 3.8.1 Access Control Choose Admin > Access Control. The page shown in the following page appears.

  • Page 60: Password

    User Manual The following table describes the parameters of this page. Field Description Reset Factory Select it to reset the router to the default Default Settings settings. Save Current Select it to save the current settings and Settings reboot the router. System Reboot Reboot the router.

  • Page 61: Backup/Restore

    User Manual Field Description Reset Refresh the page. 3.8.4 Backup/Restore Choose Admin > Backup/Restore. The page shown in the following page appears. You can back up the current settings to a file and restore the settings from the file which was saved previously. Notice: Do not turn off your router or press the Reset button while these procedures are in progress.

  • Page 62: Time Zone

    User Manual The following table describes the parameters of this page. Field Description Select File Click Browse to select the fireware file. Upload Select the fireware file and click Upload to upgrade the fireware. Reset Click it to refresh the fireware file. 3.8.6 Time Zone Choose Admin >...

  • Page 63: System Log

    User Manual Time Zone Select Select the time zone in which area you are. Enable SNTP Select it, you can choose the correct SNTP Client Update server which you want. SNTP server Choose the SNTP server from the drop-down list box. Apply Changes Save the settings of this page.

  • Page 64: Snmp

    User Manual 3.8.8 SNMP Choose Admin > SNMP. The page shown in the following page appears. You can set the SNMP parameters. The following table describes the parameters of this page. Description Field Trap IP Enter the IP address of trap IP. The trap Address information is sent to the host.

  • Page 65: Acl

    User Manual 3.8.10 ACL Choose Admin >ACL. The page shown in the following page appears. In this page, you can configure the IP address for access control list. If ACL is enabled, only the effective IP address in ACL can access the ADSL router. The procedure for configuring the IP address for access control list is as follows: Note: If you select Enable in the ACL Capability field, make sure tha there is at least one IP address is in ACL list before it takes effect.

  • Page 66: Diagnostic

    User Manual The following table describes the parameters of this page. Description Field ACL Capability Select the ACL rule, disable or enable. Enable Enable the ACL table. Interface Select the interface that becomes effective. IP Address Enter the IP address of ACL table. Subnet Mask Enter the subnet mask of IP address.

  • Page 67: Adsl

    User Manual Click Go! to begin testing. 3.9.3 ADSL Choose Diagnostic > ADSL. The page shown in the following figure appears. It is used for ADSL tone diagnostics. Click Start to begin ADSL tone diagnostics. 3.9.4 Diagnostic Choose Diagnostic > Diagnostic. The page shown in the following figure appears.
  • Page 68 User Manual Click Run Diagnostic Test to begin testing.
  • Page 69 User Manual FCC Information FCC Information This equipment complies with CFR 47, Part 15.19 of the FCC rules. Operation of the equipment is subject to the following conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received;...
  • Page 70 User Manual Regulatory information / Disclaimers Installation and use of this Wireless LAN device must be in strict accordance with the instructions included in the user documentation provided with the product. Any changes or modifications (including the antennas) made to this device that are not expressly approved by the manufacturer may void the user’s authority to operate the equipment.
