King Living Reo Assembly Instructions

Reo
Assembly Instructions
Two people are required for safe assembly.

Opening Boxes

DO NOT use a knife to open the King Living boxes - you may damage your furniture.
Peel off the tape, then lift & separate the cardboard flaps to open.
Assemble your furniture by following the steps below.
2x
2x

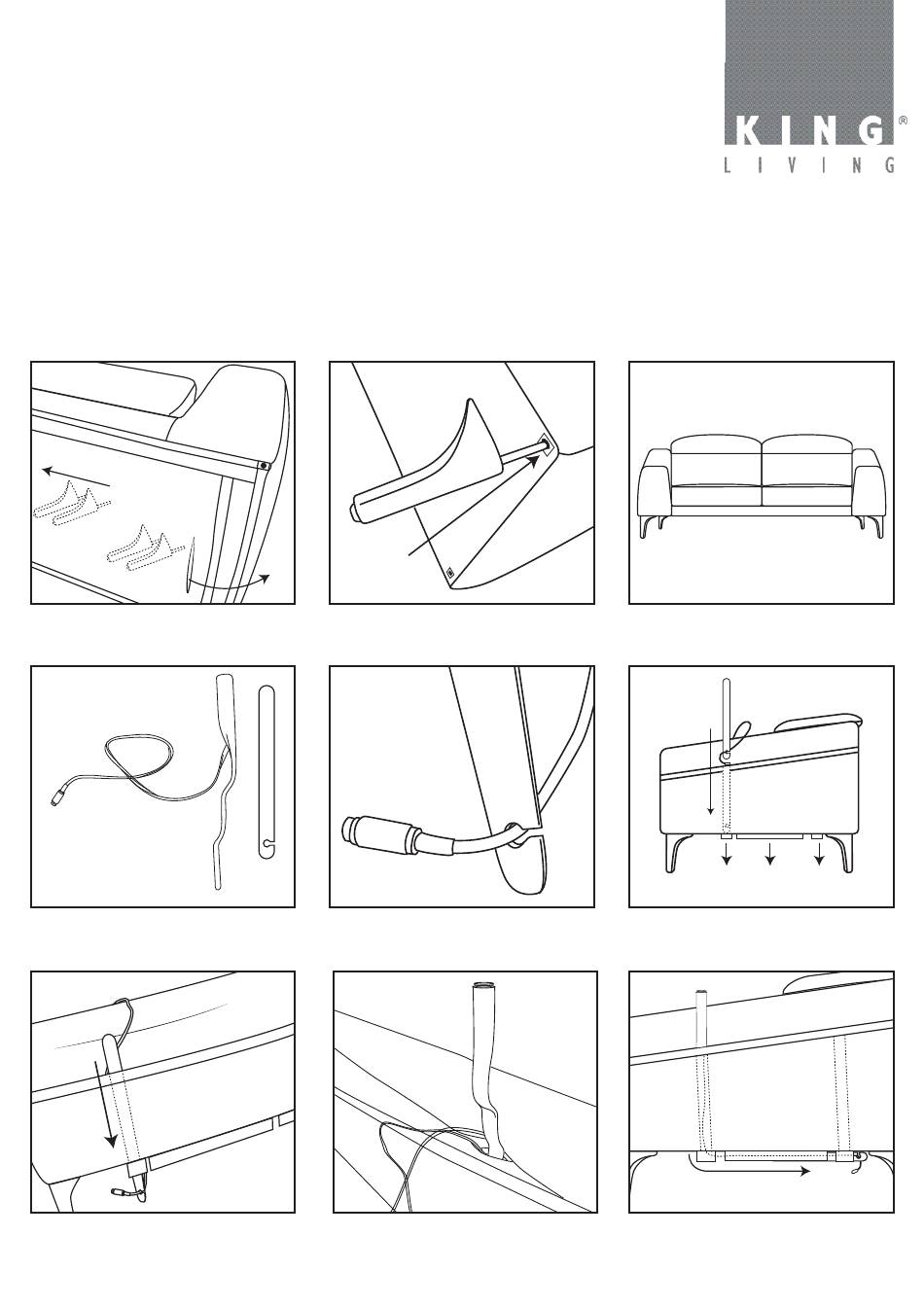

1. Tilt the Reo over so it's resting on its rear or
front. Reo's legs are contained inside the two
zipped pockets located underneath at each end.
A

4. Smart Pocket Accessories (Optional):

A. SMART Pocket™ Table Bracket.
B. King Cable Guide.
7. Slide guide and cable all the way down and
out through the bottom opening of the pocket
channel.
4x
2. Remove the legs from the pockets and insert
them by pushing the leg pins all the way into the
spigot holes located in the corners.
B
5. Insert the end of the Cable into the King
Cable Guide as shown.
7. Pull any loose cable down (carefully from the
bottom) so the cable is concealed within the
pocket channel.
3. Carefully tilt the Reo back to the upright
position. Reo assembly complete.
6. Open the Velcro strips underneath the arms
then insert the guide and cable into the vertical
pocket channel and slide downward.
8. Slide the guide and excess cable through the
horizontally channel towards the back of the
Reo and all the way through. Remove cable
guide.
