Serenade

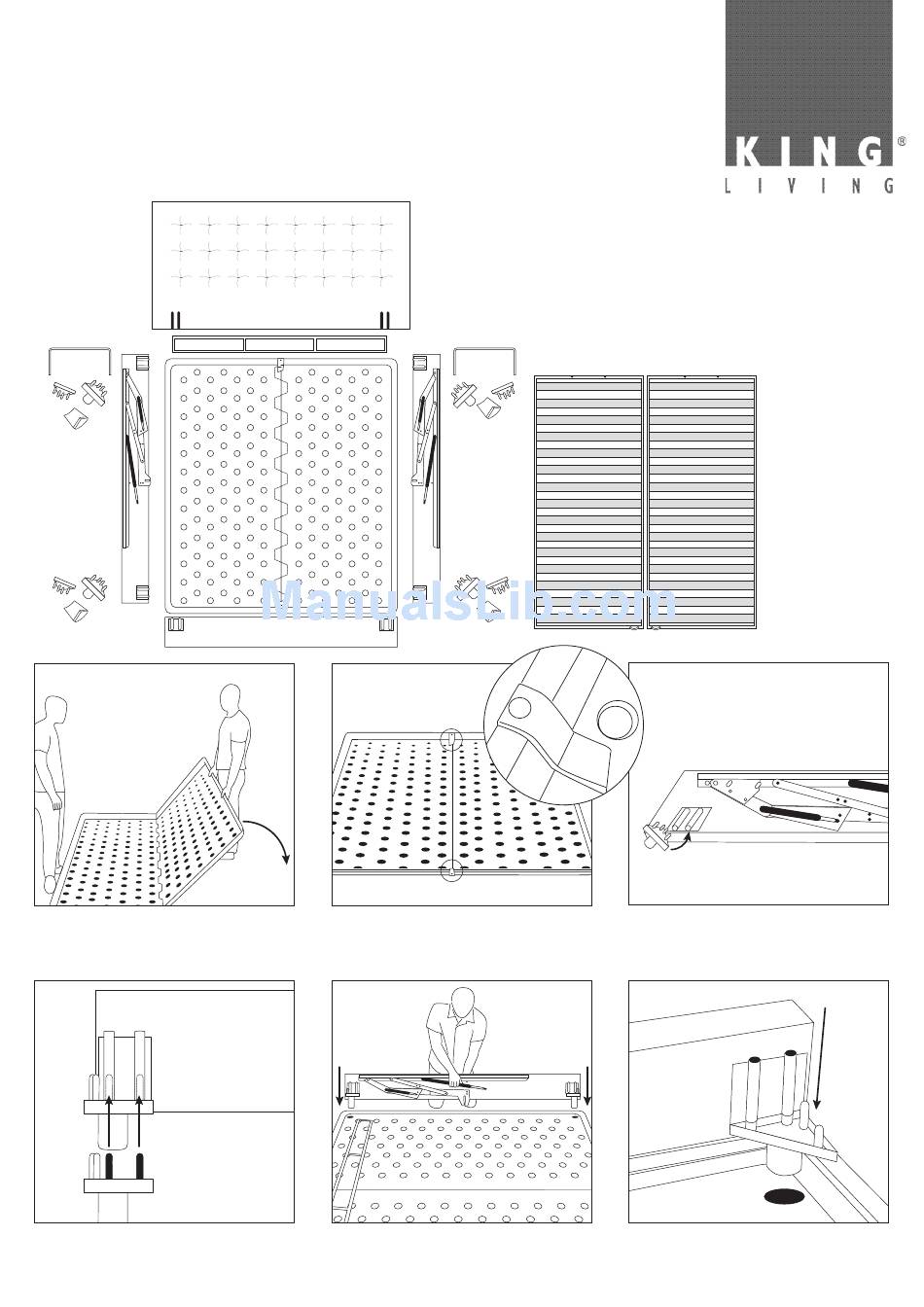

Assembly Instructions
Two people are required for Safe Assembly.
1
Connect tub halves.
4
Connect leg to side.
Layout Components as shown. Follow the Steps until
assembly completed. Please note: The Serenade has
been designed with a 'Click System' for attaching the Bed
Rail to the Bed Frame.
2
Connect & secure tub halves.
5
Lower side onto tub.
3
Connect leg to side.
6
Line up legs to the tub indents.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for King Living Serenade
Summary of Contents for King Living Serenade
- Page 1 Assembly Instructions Two people are required for Safe Assembly. Layout Components as shown. Follow the Steps until assembly completed. Please note: The Serenade has been designed with a ‘Click System’ for attaching the Bed Rail to the Bed Frame. Connect tub halves.
- Page 2 Repeat for both sides. Lower bed end onto tub. Connect to sides using leg pins. Attach one end of spreader rail. Attach other end of spreader rail When sides joined with the head & end, and push together. cover the exposed corner leg pins with triangle pieces –...
- Page 3 & bolts to ensure bed frame carefully. supports into bed frame. frame, bed rail and bed base are all securely attached. Close the assembled bed. KING LIVING CUSTOMER CARE: AUSTRALIA: NEW ZEALAND: SINGAPORE: MALAYSIA: 1300 135 464...
