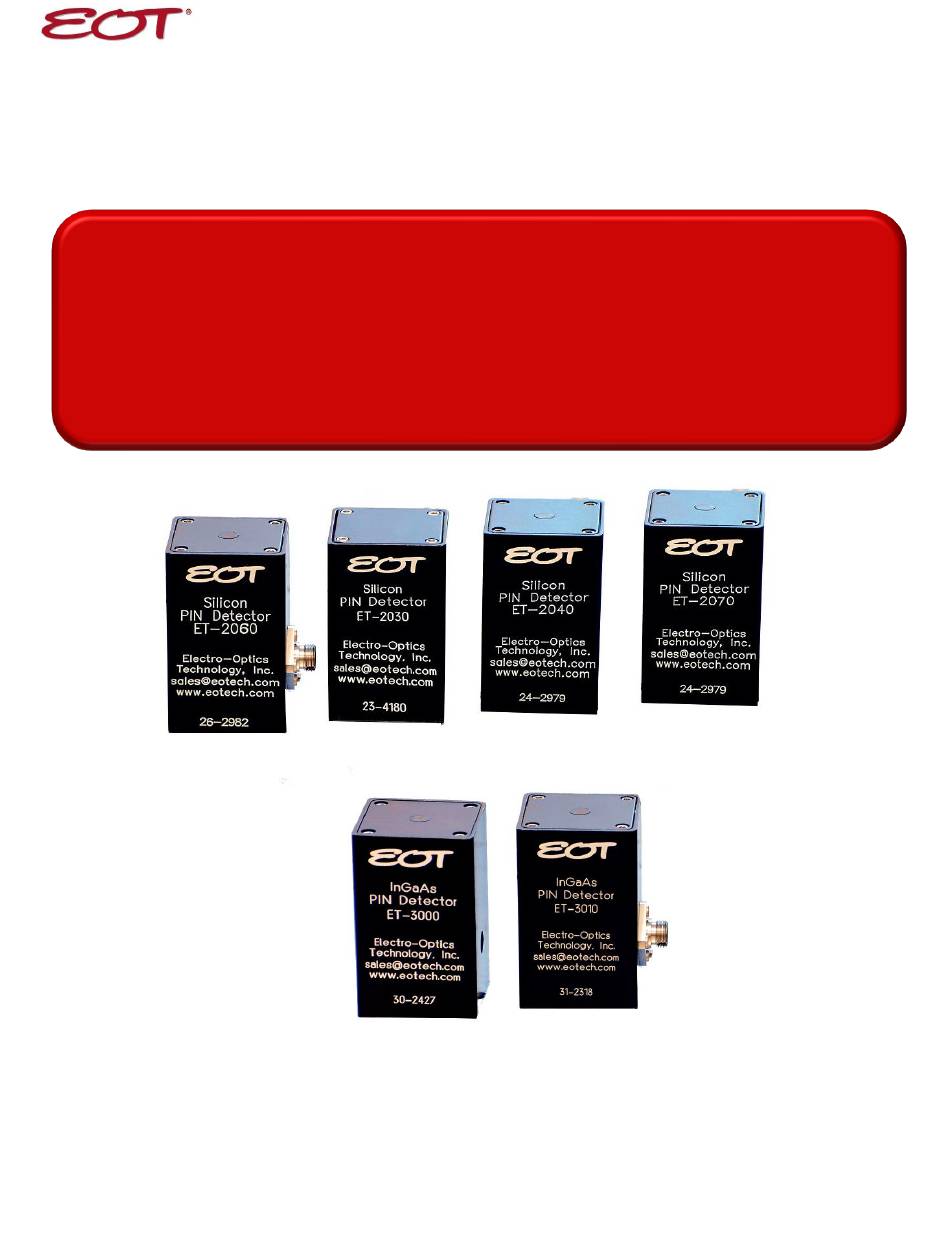

- Page 1 Non-amplified Photodetectors User Guide Electro-Optics Technology, Inc. 3340 Parkland Ct. Traverse City, MI 49686 USA (231)935-4044 ׀ 2876-796)008( ׀sales@eotech.com ׀www.eotech.com Page 1 of 9...
-
Page 2: Table Of Contents
Laser beams may reflect from the surface of the detector or the optical mount and caution must be exercised. Electro-Optics Technology, Inc. 3340 Parkland Ct. Traverse City, MI 49686 USA (231)935-4044 ׀ 2876-796)008( ׀sales@eotech.com ׀www.eotech.com... -
Page 3: Troubleshooting
Units with an external power supply should at least receive the voltage that is printed on the plug. Electro-Optics Technology, Inc. 3340 Parkland Ct. Traverse City, MI 49686 USA (231)935-4044 ׀ 2876-796)008( ׀sales@eotech.com ׀www.eotech.com Page 3 of 9... -
Page 4: Drawings: Non-Amplified Photodetectors
1. The detector is probably saturated. You should lower the power incident on the detector to a level below the saturation point. Drawings: Non-amplified Photodetectors A. ET-2030 Dimensions: B. ET-2040, ET-2070 Dimensions: Electro-Optics Technology, Inc. 3340 Parkland Ct. Traverse City, MI 49686 USA (231)935-4044 ׀ 2876-796)008( ׀sales@eotech.com ׀www.eotech.com Page 4 of 9... - Page 5 C. ET-2060 Dimensions: D. ET-3000 Dimensions: E. ET-3010 Dimensions Electro-Optics Technology, Inc. 3340 Parkland Ct. Traverse City, MI 49686 USA (231)935-4044 ׀ 2876-796)008( ׀sales@eotech.com ׀www.eotech.com Page 5 of 9...
-
Page 6: Specifications: Non-Amplified Photodetectors
Maximum Linear Rating CW current: 5mA CW current: 5mA Mounting (Tapped Holes) 8-32 or M4 8-32 or M4 Output Connector Electro-Optics Technology, Inc. 3340 Parkland Ct. Traverse City, MI 49686 USA (231)935-4044 ׀ 2876-796)008( ׀sales@eotech.com ׀www.eotech.com Page 6 of 9... -
Page 7: Schematics: Non-Amplified Photodetectors
Service department will either issue an RMA for the device, or provide the customer with a procedure and authorize the customer to modify the device. All returns should reference the RMA number on the outside of the shipping container and should be sent to: Electro-Optics Technology, Inc. Attn: Sales/Customer Service 3340 Parkland Ct. -
Page 8: Viii. Glossary Of Terms
Rise Time/Fall Time: Rise Time is the time taken by a signal to change from a specified low value to a specified high value. Fall Time is the time taken for the amplitude of a pulse to decrease from a Electro-Optics Technology, Inc. 3340 Parkland Ct. Traverse City, MI 49686 USA (231)935-4044 ... - Page 9 A larger junction capacitance will slow the detector’s response time. Electro-Optics Technology, Inc. 3340 Parkland Ct. Traverse City, MI 49686 USA (231)935-4044 ׀ 2876-796)008( ׀sales@eotech.com ׀www.eotech.com Page 9 of 9...
