American Landmaster LS455EFI 2018 Assembly Instructions

Congratulations on the purchase of your Utility Vehicle! These
instructions will guide you through the assembly process. Carefully
read these instructions and familiarize yourself with the tools and
fasteners required before starting the assembly of your vehicle.
The following fasteners are included for the assembly of this vehicle.
please make sure you have all fasteners before beginning assembly. If
any parts are missing or if you have questions regarding the packaged
vehicle, call American Landmaster customer service at 800-643-7332.
Bag contents
Overhead bars / Bed tubes (black bag)
(8) - 5/16-18 x 2 Socket yellow (2-50172)
(8) - 5/16 Bent washer zinc (2-50702)
(8) - 5/16-18 Nylon LN yellow (2-50007)
Steering wheel (clear bag)
(6) - 1/4-20 x 3/4 Socket SS (2-50636)
(6) - 1/4-20 Nylon LN yellow (2-50001)
Bumper (red bag)
(4) - 5/16-18 x 1.25 Hex head bolt (2-50161)
(4) - 5/16-18 Keps lock nut yellow (2-50005)
(4) - 5/16 SAE flat washer yellow (2-50701)
Cargo Bed (clear bag)
(2) - 5/8-11 x 4 HHCS Gr.8 yellow (2-50255)
(2) - 5/8-11 Nylon LN yellow (2-50015)
Seat Belt (yellow bag)
(2) - M12 x 1.75 x 25 FHCS (15829)
(2) - M12 x 1.75 x FH toplock hex nut (2-50001)
Fenders (white bag)
(4) - 1/4-20 x 1 HHCS Gr.5 zinc (2-50087)
(4) - 1/4-20 Nylon LN yellow (2-50001)
(4) - 1/4 SAE flat washer yellow (2-50717)
(4) - 1/4-20 x 3/4 Carriage bolt Gr.5 zinc (2-50087)
TOOLS REQUIRED
Hammer Box or Side Cutter
Safety Glasses ½" Wrench
¼" Allen Wrench Phillips Screw Driver
3/16" Allen Wrench (2) 15/16" Wrench
WARNING
!
Wear proper eye protection during the uncrating and assembly
process to avoid potential eye injuries.
WARNING
!
RISK OF SERIOUS INJURY OR DEATH
The Brush Bars and the Shoulder Belts are critical parts of the
Operator / Passenger safety system on this vehicle. Do not attempt to
operate the unit until these components have been properly installed.

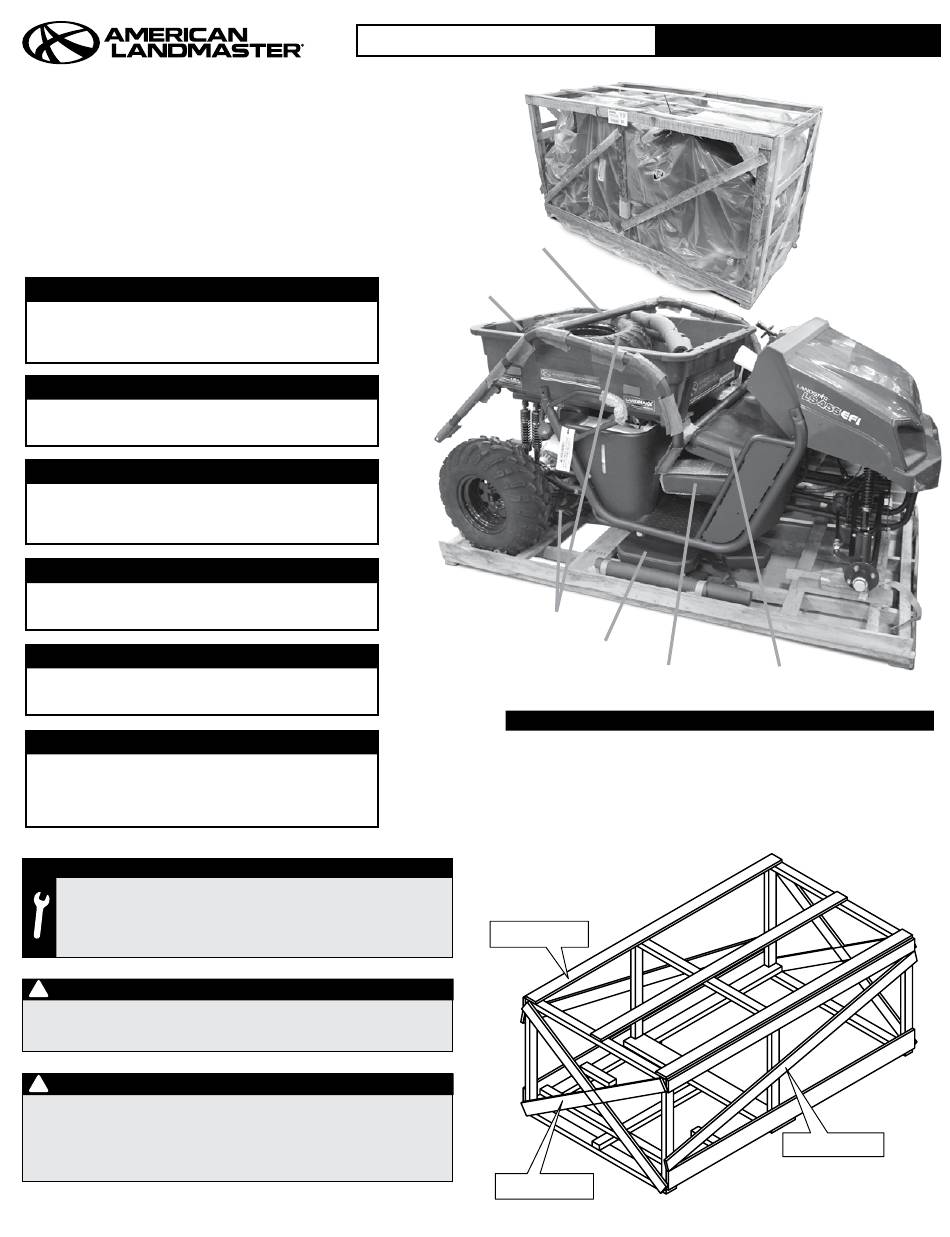

FULL SIZE UTILITY VEHICLE
overhead bars
front bumper
1 Uncrating the vehicle (refer to figure 1)
• Wear your Safety Glasses to prevent eye injury.
• Using the Hammer and Pry Bar, remove crate ends and discard.
• Carefully pry and remove crate top and discard.
• Remove crate sides and discard.
• Using a Box Cutter, cut and remove the hold down ties.
• Unpack all loose components and set aside.
Figure 1
Pry Bar
Typical crate construction
½" Socket
7/16" Wrench
2: Remove Top
(2) 17mm Wrench
1: Remove Ends
ASSEMBLY INSTRUCTIONS
front tires
seat back
seat bottom
2018 MODEL
underseat storage tray
(not available on all units)
3: Remove Sides
16616 rev. B page 1 of 4
