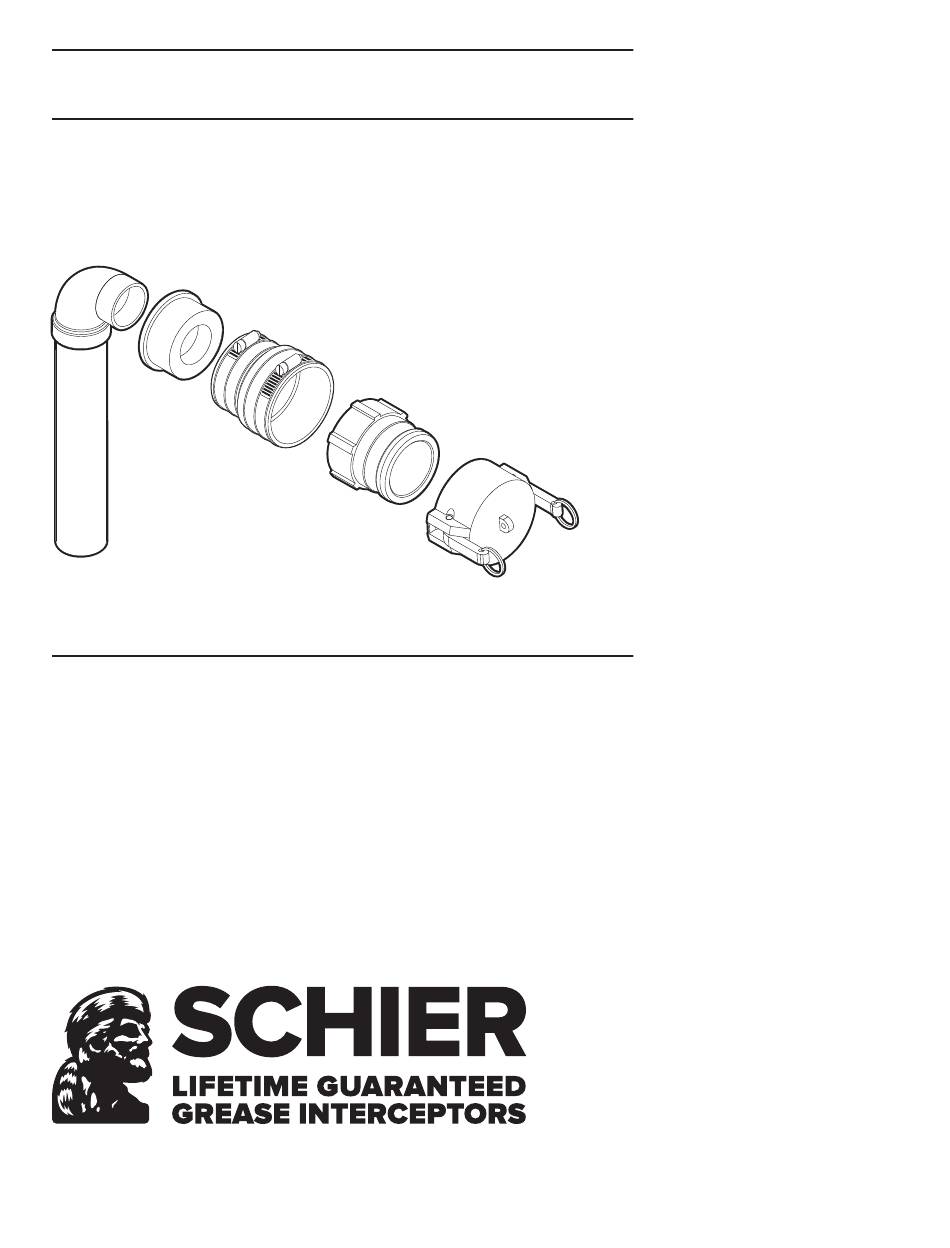

Schier PP2 Installation Manual

Pumpout port kit for use with grease interceptors models gb-50, gb-75 and gb-250

Advertisement

INSTALLATION GUIDE
Model #PP2 Pumpout Port Kit
For Use with Grease Interceptors Models GB-50, GB-75 and GB-250
Contents
Special Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Getting to Know the PP2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Installation Ideas . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-7
Part #: 057-1360-02
Find these instructions online at: schierproducts.com/pages/pp2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PP2 and is the answer not in the manual?

Questions and answers

Summary of Contents for Schier PP2

  • Page 1 Getting to Know the PP2 ........
  • Page 2: Special Precautions

    SPECIAL PRECAUTIONS For All Schier Grease Interceptor Installations - Failure to follow this guidance voids your warranty Installation Instructions High Temperature Kitchen Water installation Installation instructions and additional If water is entering the interceptor at excessive temperature (over 140º F), a...
  • Page 3: Getting To Know The Pp2

    GETTING TO KNOW THE PP2 Internal 2" PVC SCH. 40 Pipe 4. Flexible PVC Reducing Coupling with Stainless Steel Hose Clamps 2. 2" PVC SCH. 40 Elbow Fitting 5. 3" Cam and Groove Fitting 3" x 2" PVC SCH. 40 Pumpout Adapter 6.
  • Page 4: Installation Ideas

    At Grade Basement Installation with Below Grade Installation with Outdoor Remote Pumpout Hook-up Indoor Remote Pumpout Hook-up At Grade Floor Below Installation with Recessed and Suspended Installation with Indoor Remote Pumpout Hook-up Outdoor Remote Pumpout Hook-up Page 4 of 7 PP2 Installation Guide...
  • Page 5: Installation

    Prepare interceptor for pumpout port installation Remove cover bolts, then Remove preinstalled test/sealing cap from remove cover. outlet chosen to become a pumpout port. Page 5 of 7 PP2 Installation Guide...
  • Page 6 (Not included with this kit). Maximum quantity of 6 elbow fittings. Max. height from static water line of interceptor to hook-up is 21 feet. Max horizontal distance from interceptor to pumper truck (including hose) is 100 feet. Page 6 of 7 PP2 Installation Guide...
  • Page 7 Cap off hookup and re-assemble interceptor Install Cam and Groove Cap at hookup Replace cover and cover bolts, tightening securely. Page 7 of 7 PP2 Installation Guide...
