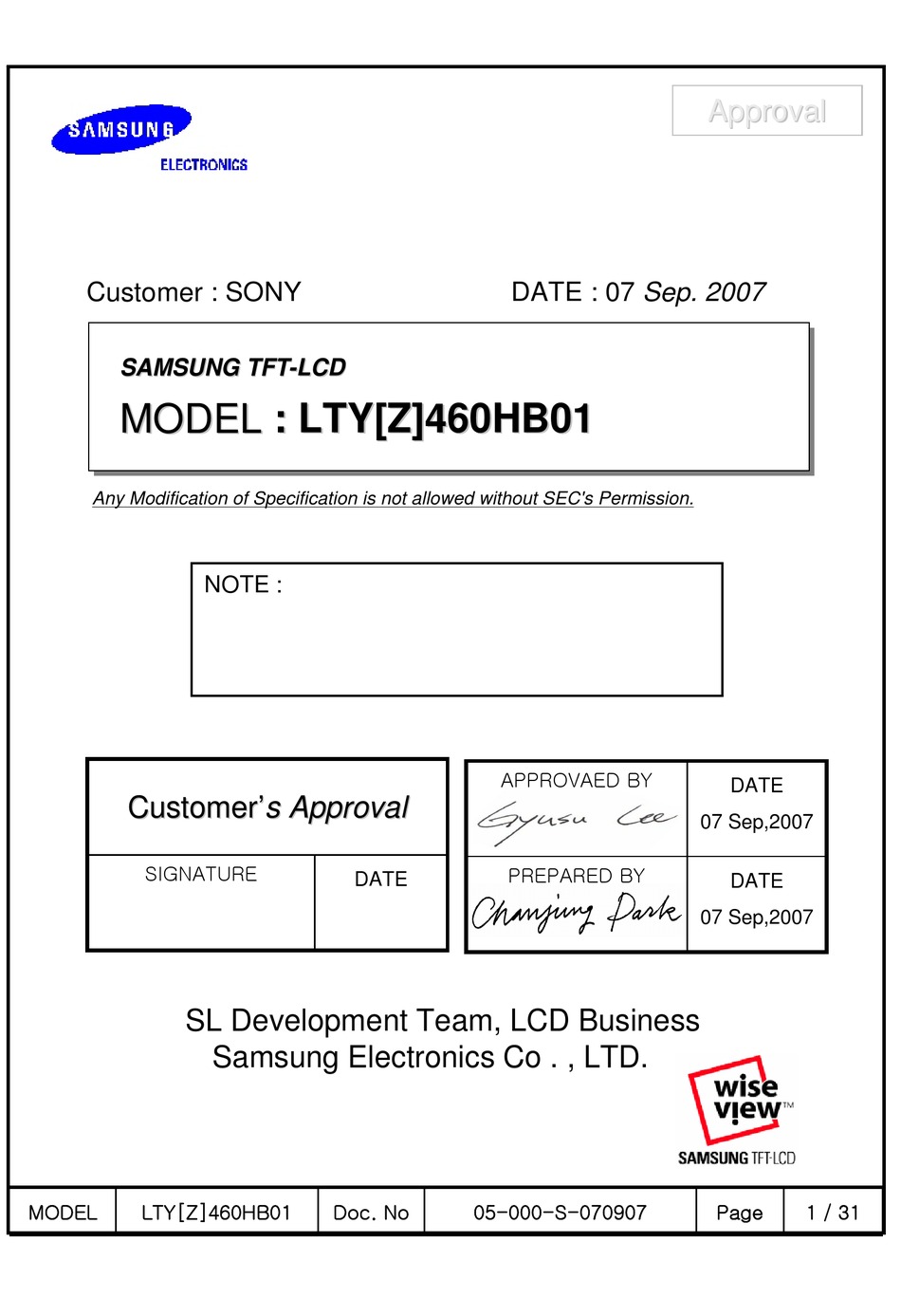

Customer : SONY
SAMSUNG TFT
SAMSUNG TFT
SAMSUNG TFT-LCD
MODEL
MODEL
MODEL : LTY[Z]460HB01
Any Modification of Specification is not allowed without SEC's Permission.
Customer
Customer
SIGNATURE
SL Development Team, LCD Business
MODEL
LTY[Z]460HB01
-
LCD
-
LCD
: LTY[Z]460HB01
: LTY[Z]460HB01
NOTE :
'
s Approval
'
s Approval
DATE
Samsung Electronics Co . , LTD.
Doc. No
DATE : 07 Sep. 2007
APPROVAED BY
PREPARED BY
05-000-S-070907
Approval
Approval
DATE
07 Sep,2007
DATE
07 Sep,2007
Page
1 / 31

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LTY[Z]460HB01 and is the answer not in the manual?

Questions and answers

Summary of Contents for Samsung LTY[Z]460HB01

  • Page 1 Any Modification of Specification is not allowed without SEC's Permission. NOTE : Customer ’ Customer ’ SIGNATURE SL Development Team, LCD Business Samsung Electronics Co . , LTD. MODEL LTY[Z]460HB01 : LTY[Z]460HB01 : LTY[Z]460HB01 s Approval s Approval DATE Doc. No...
  • Page 2: Table Of Contents

    11. Reliability Test ----------------------------------------------------------------------------------------- (26) 12. Packing ------------------------------------------------------------------------------------------------ (27) 13. Marking & Others ------------------------------------------------------------------------------------- (28) 14. General Precaution ---------------------------------------------------------------------------------- (29) 14.1 Handling 14.2 Storage 14.3 Operation 14.4 Operation Condition Guide 14.5 Others MODEL LTY[Z]460HB01 Contents Doc. No 05-000-S-070907 Page 2 / 31...
  • Page 3: Revision History

    * Revision History Rev. Date Page Sep. 2007 MODEL LTY[Z]460HB01 Summary First Issued Doc. No 05-000-S-070907 Page 3 / 31...
  • Page 4: General Description

    General Description Description LTY[Z]460HB01 is a color active matrix liquid crystal display (LCD) that uses amorphous silicon TFT(Thin Film Transistor) as switching components. This model is composed of a TFT LCD panel, a driver circuit and a back light unit. The resolution of a 46.0“ is 1920 x 1080 and this model can display up to 1.07 billion colors with wide viewing angle of 89°...
  • Page 5: Absolute Maximum Ratings

    (3) Polarizer will not be damaged in this range, even though abnormal visual problems occur range. (4) 11ms, sine wave, one time for ±X, ±Y, ±Z axis (5) 10-300 Hz, Sweep rate 10min, 30min for X,Y,Z axis Fig. Temperature and Relative humidity range MODEL LTY[Z]460HB01 Symbol Min. GND-0.5 ±XY axis ±Z axis Doc.
  • Page 6: Optical Characteristics

    This should be measured in the center of screen. Single lamp current @ I Environment condition : Ta = 25 ± 2 °C MODEL LTY[Z]460HB01 TOPCON BM-7,SPECTRORADIOMETER SR-3 (Ta = 25 ± 2°C, VDD=12V, fv= 60Hz, f Condition Min.
  • Page 7 Note (3) Definition of Contrast Ratio (C/R) : Ratio of gray max (Gmax) & gray min (Gmin) at the center point ⑤ of the panel Gmax : Luminance with all pixels white Gmin : Luminance with all pixels black MODEL LTY[Z]460HB01 Photo detector Field 1° Field 2°...
  • Page 8 Note (7) Definition of Color Chromaticity (CIE 1931) Color coordinate of Red, Green, Blue & White at center point ⑤ Note (8) Definition of Viewing Angle : Viewing angle range (C/R ≥10) MODEL LTY[Z]460HB01 − min) White (data on) off) Black (data Doc.
  • Page 9: Electrical Characteristics

    =60Hz, f = 148.5MHz, DCLK (3) Power dissipation check pattern (LCD Module only) a) Black Pattern (4) Measurement Conditions 100% Rush Current I MODEL LTY[Z]460HB01 Symbol Min. DCLK RUSH = 12.0V, DC Current. b) White Pattern =1ms RUSH can be measured when T RUSH Doc.
  • Page 10: Back Light Unit

    Note (1) It is defined as the time to take until the brightness reduces to 50% of its original value. [Operating condition : Ta = 25±2℃, I Socket HOT 1 HOT 2 Balance Board HOT 23 HOT 24 MODEL LTY[Z]460HB01 Symbol Min. Typ. 30,000 =6.5mArms(typ.), For single lamp only. ] Module Doc. No 05-000-S-070907 Ta=25 ± 2°C Max.
  • Page 11: Block Diagram

    CONTROL R-STRING +FB R-STRING +FB DATA VIN(12.0V) AVDD Von/Voff VCOM CONTROL PCB ΥVoltage VCC(1.8V) VCC(3.3V) MODEL LTY[Z]460HB01 DCC MEMORY DCC MEMORY GAMMA GEN GAMMA GEN Von/off GEN Von/off GEN VCOM-GEN Doc. No 05-000-S-070907 GATE Dr. IC GATE Dr. IC (540CH)X4 (540CH)X4 DATA Dr.IC...
  • Page 12: Input Terminal Pin Assignment

    Odd LVDS Signal + RE[0]N Even LVDS Signal - ■ ACC SEL - HIGH : ACC OFF ■ B-INT : I2C BUS RELEASE MODEL LTY[Z]460HB01 Description PIN No. N.C. Odd LVDS CLK - Odd LVDS CLK + LOW/OPEN : ACC ON...
  • Page 13 ■ DCC SELECTION L/OPEN Select Bit ■ DCC Look Up Table Selection Pin N.O. Select ■ TCON Ready Operation High High MODEL LTY[Z]460HB01 DCC 1.5 On DCC 1.5 Off Description Normal Operation Error Operation Doc. No 05-000-S-070907 Description 60Hz*175% 60Hz*50%...
  • Page 14 All GND pins should be connected together and also be connected to the LCD’s metal chassis. b. All power input pins should be connected together. c. All NC pins should be separated from other signal or power. MODEL LTY[Z]460HB01 Doc. No 05-000-S-070907 Page 14 / 31...
  • Page 15: Balance Board

    Crest factor must be from 90 % to 110 % ( 0.9 < I (1) Striking Voltage( HV Soft rising time must be - at starting time Tsoft > 300msec - at PWM dimming condition Trise < 100usec MODEL LTY[Z]460HB01 Recommendation Min. Typ. Max. 4200 rms@T/2 X √2...
  • Page 16 PIN NO. 2. Feed Back Interface : KN30-7P-1.25H(Hirose) PIN NO. 4,5,6,7 3. HV Input Connector : BM03-XASS-TF(LF)(SN)(JST) PIN NO. 4. HV Input Connector : BM04B-XASS-TF(LF)(SN)(JST) PIN NO. MODEL LTY[Z]460HB01 SYMBOL SYMBOL SYMBOL SYMBOL Doc. No 05-000-S-070907 REMARK Power Supply for CCFL...
  • Page 17 6,5, 4,3,2,1 7,8,9,10 5.2.3 Feedback I/O Specification ITEM SYMBOL Supply Voltage Input current Of Vcc High (Normal) Lamp Detection (LD) MODEL LTY[Z]460HB01 SYMBOL PROT LOOP Recommendation Min. Typ. Vcc-1 Doc. No 05-000-S-070907 REMARK Ground Protect Interface JIN Coil Loop UNIT REMARKS Max.
  • Page 18: Lvds Interface

    5.3 LVDS Interface TxOUT/RxIN0 TxOUT/RxIN1 TxOUT/RxIN2 TxOUT/RxIN3 TxOUT/RxIN4 MODEL LTY[Z]460HB01 LVDS pin Odd Data TxIN/RxOUT0 TxIN/RxOUT1 TxIN/RxOUT2 TxIN/RxOUT3 TxIN/RxOUT4 TxIN/RxOUT6 TxIN/RxOUT7 TxIN/RxOUT8 TxIN/RxOUT9 TxIN/RxOUT12 TxIN/RxOUT13 TxIN/RxOUT14 TxIN/RxOUT15 TxIN/RxOUT18 TxIN/RxOUT19 TxIN/RxOUT20 TxIN/RxOUT21 TxIN/RxOUT22 TxIN/RxOUT24 HSYNC TxIN/RxOUT25 VSYNC TxIN/RxOUT26 TxIN/RxOUT27 TxIN/RxOUT5 TxIN/RxOUT10...
  • Page 19: Input Signals, Basic Display Colors And Gray Scale Of Each Color

    Note) Definition of Gray : Rn : Red Gray, Gn : Green Gray, Bn : Blue Gray (n = Gray level) Input Signal : 0 = Low level voltage, 1 = High level voltage MODEL LTY[Z]460HB01 DATA SIGNAL GREEN Doc. No...
  • Page 20: Interface Timing

    Note) This product is DE only mode. The input of Hsync & Vsync signal does not have an effect on normal operation. (1) Test Point : TTL control signal and CLK at LVDS Tx input terminal in system (2) Internal V MODEL LTY[Z]460HB01 SYMBOL MIN. 1100 2154 = 3.3V...
  • Page 21: Timing Diagrams Of Interface Signal (De Only Mode)

    6.2 Timing diagrams of interface signal ( DE only mode ) DATA SIGNALS DISPLAY DATA MODEL LTY[Z]460HB01 Doc. No 05-000-S-070907 Page 21 / 31...
  • Page 22: Power On/Off Sequence

    T4 should be measured after the Module has been fully discharged between power off and on period. Interface signal should not be kept at high impedance when the power is on. MODEL LTY[Z]460HB01 0.9V VALID T-Con Ready = 0.1V T-Con Ready = 0.9...
  • Page 23: Outline Dimension

    7. Outline dimension (Front view) MODEL LTY[Z]460HB01 Doc. No 05-000-S-070907 Page 23 / 31...
  • Page 24 Outline dimension (Rear View) MODEL LTY[Z]460HB01 Doc. No 05-000-S-070907 Page 24 / 31...
  • Page 25: Emi Specification

    This EMI Recommendation is recommended to be measured at SET Condition. 9. Input Spread Spectrum Specification Modulation Rate Modulation Frequency Modulation Frequency (Max.) (Min.) (Max.) Input ±1.2% 50KHz 200Khz Signal 10. UL Approval MODEL LTY[Z]460HB01 Doc. No 05-000-S-070907 Page 25 / 31...
  • Page 26: Reliability Test

    HTOL/ LTOL : High/Low Temperature Operating Life, : Temperature Humidity Bias HTS/LTS : High/Low Temperature Storage WHTS : Wet High Temperature Storage MODEL LTY[Z]460HB01 Test condition 0 ∼ 50℃,10Cycle determination 50℃, 1000hr (500hr determination) 0℃, 1000hr (500hr determination) 20 ℃, continue ~ 60℃, 1000hr (500hr determination) -30℃,1000hr (500hr determination)
  • Page 27: Packing

    Cushion Set 12.2 Packing Specification Item LCD Packing Pallet Packing Direction Total Pallet Size Total Pallet Weight MODEL LTY[Z]460HB01 Module (10EA) Pallet Specification 1. 160Kg/LCD(10ea) 2. 10kg/Cushion Set(2ea) 10 ea / (Packing- 3. 8kg/Packing-Pallet Box(1ea) Pallet Box) 4. Cushion Material : EPS 5.
  • Page 28: Marking & Others

    13. MARKING & OTHERS A nameplate bearing followed by is affixed to a shipped product at the specified location on each product. (1) Parts number : LTY[Z]460HB01-XXXX (2) Revision: One letters (3) Lot number : X X X X XXX XX X...
  • Page 29: General Precautions

    (m) Protection film for polarizer on the Module should be slowly peeled off just before use so that the electrostatic charge can be minimized. (n) Pins of I/F connector should not be touched directly with bare hands. MODEL LTY[Z]460HB01 Doc. No 05-000-S-070907 Page...
  • Page 30: Operation Condition Guide

    SEC for Application engineering advice. Otherwise, its reliability and function may not be guaranteed. Extreme conditions are commonly found at Airports, Transit Stations, Banks, Stock market, and Controlling systems. MODEL LTY[Z]460HB01 Doc. No 05-000-S-070907 Page 30 / 31...
  • Page 31: Others

    (e) This Module has its circuitry PCB's on the rear side and should be handled carefully in order not to be stressed. (f) Please contact SEC in advance when you display the same pattern for a long time. MODEL LTY[Z]460HB01 Doc. No 05-000-S-070907 Page...
