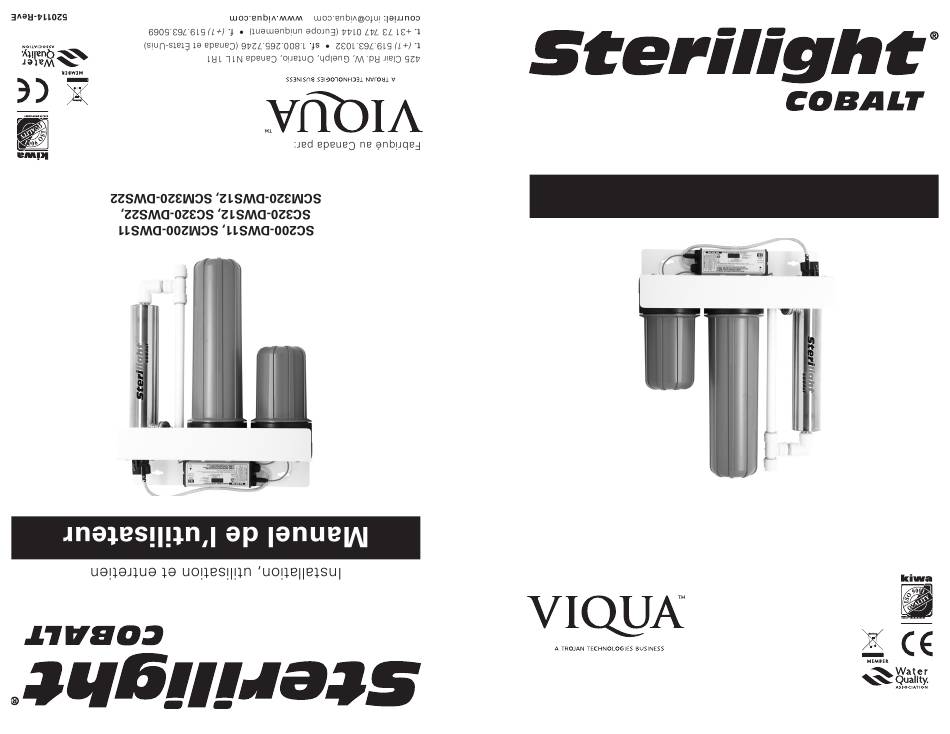

Installation, Operation and Maintenance
Owner's Manual
SC200-DWS11, SCM200-DWS11
SC320-DWS12, SC320-DWS22,
SCM320-DWS12, SCM320-DWS22
Manufactured in Canada by:
425 Clair Rd. W, Guelph, Ontario, Canada N1L 1R1
t. (+1) 519.763.1032 • tf. 1.800.265.7246 (US and Canada only)
t. +31 73 747 0144 (Europe only) • f. (+1) 519.763.5069
e-mail: info@viqua.com
www.viqua.com
520114-RevE
Advertisement
Table of Contents
Related Manuals for Sterilight SC200-DWS11
Summary of Contents for Sterilight SC200-DWS11
- Page 1 Installation, Operation and Maintenance Owner’s Manual SC200-DWS11, SCM200-DWS11 SC320-DWS12, SC320-DWS22, SCM320-DWS12, SCM320-DWS22 Manufactured in Canada by: 425 Clair Rd. W, Guelph, Ontario, Canada N1L 1R1 t. (+1) 519.763.1032 • tf. 1.800.265.7246 (US and Canada only) t. +31 73 747 0144 (Europe only) • f. (+1) 519.763.5069 e-mail: info@viqua.com...
- Page 3 Each component of your VIQUA system has been designed and developed through extensive research and development to be part of an overall system that operates safely and efficiently over its entire lifetime. genuine Sterilight lamps are: [Replacement with any other lamp voids NSF 55 and UL/CSA/CE certification and Safety certified.
- Page 4 Your Sterilight system uses the most advanced UV technology on the market and is designed to provide you with years of trouble free operation with...
-
Page 5: Table Of Contents
Table of Contents: Parts / Schematic Breakdown Safety Instructions Water Chemistry Installing Your UV Disinfection System Disinfection Procedure Operating and Maintenance Instructions 7-10 Operation 11-14 Troubleshooting 15-16 Dose Flow Chart Specifications 17-18 Manufacture’s Warranty 19-20 *CSA/UL certification with approved power cord and lamps only. Potential Safety Measures Hazard... - Page 6 Symbols: Protective Caution Ground Electrical Fragile Warning WEEE (waste electrical or Eye Protection electronic equipment)* * This symbol indicates that you should not discard wasted electrical or elec- tronic equipment (WEEE) in the trash. For proper disposal, contact your local recycling/reuse or hazardous waste center.
-
Page 7: Parts / Schematic Breakdown
Parts: Hard glass, coated Sterilume ®- HO UV lamps for long, consistent life (9000 hours) Controller S200RL-HO FOR 200 SERIES POWER - 100-240V/50-60HZ S320RL-HO FOR 320 SERIES BA-ICE-C COBALT “BASIC” SYSTEM BA-ICE-CM COBALT “PLUS” SYSTEM lamp connector 214 fused quartz sleeves retaining clip with fire polished ends QS-200... -
Page 8: Safety Instructions
Safety Instructions: WARNING - Always shut-off water flow and release water pressure before servicing. WARNING - to guard against injury, basic safety precautions should be observed, including the following: READ AND FOLLOW ALL SAFETY INSTRUCTIONS. CAUTION - Always disconnect power before servicing. DANGER - To avoid possible electric shock, special care should be taken since water is present near electrical equipment. -
Page 9: Water Chemistry
Water Chemistry: Water quality is extremely important for the optimum performance of your UV disinfection system. The following levels are recommended for installation: • Iron: < 0.3 ppm (0.3 mg/L) • Hardness*: < 7 gpg (120 mg/L) • Turbidity: < 1 NTU •... - Page 10 OPTIONAL 4-20MA of this document. If the water is to be consumed “Y” CABLE while the system is off-line, the water must be boiled for twenty minutes prior to consumption. Select a suitable location for the disinfection system and its related components.
- Page 11 Once it is determined that there are no leaks, plug the system into the ground fault interrupter, and check controller to ensure the system is operating properly. The controller is designed to detect both power to the system and lamp illumination. It is important to NEVER LOOK DIRECTLY AT THE GLOWING UV LAMP .
-
Page 12: Disinfection Procedure
Disinfection Procedure: UV disinfection is a physical disinfection process and does not add any potentially harmful chemicals to the water. As UV does not provide a disinfection residual, it is imperative that the entire distribution system located after the UV be chemically disinfected to ensure that the water is free from any bacteriological contaminants. -
Page 13: Operating And Maintenance Instructions
OPERATION • Always disconnect power before performing any work on the disinfection system. • Regularly inspect your disinfection system to ensure that the power indicators are on and no alarms are present. • Replace the UV lamp annually (or biennially if seasonal home use) to ensure maximum disinfection. - Page 14 Quartz Sleeve Replacement / Cleaning: Mineral deposits and sediment may accumulate on the quartz sleeve decreasing the UV energy detected. Good maintenance of filtration equipment will reduce the accumulation of residues. If necessary, remove the quartz sleeve and clean with a commercially available scale remover (CLR, Lime-Away, etc.) and a lint free cloth.
- Page 15 UV Sensor Replacement / Cleaning (SCM models only): The UV sensor is very delicate instrument. Extreme care is required when handling and cleaning. The sensor window itself is constructed from quartz which is extremely fragile, be careful you do not chip or break this quartz window. Manufacturer’s warranty does not cover damage due to neglect or misuse.
- Page 16 It is recommended to change the filter cartridges every six months (or earlier). A gradual drop in water pressure after the filtration device is an accurate method of determining that the pre-filter cartridges are nearing the end of their useful life! To change the cartridges, please follow the following procedures: Note: Prior to performing any work on the whole home system, ALWAYS DISCONNECT THE POWER SUPPLY FIRST.
-
Page 17: Operation
Operation: Basic Systems incorporating BA-ICE-C controller: To be used with Model SC Series only. 178973 1. Lamp life remaining (days): The controller tracks the number of days of operation of the lamp and the controller. The default screen will display the total lamp life remaining (in days). The controller will count down the number of days remaining until the lamp requires changing (365 days to 1 day). - Page 18 “Plus” Systems incorporating BA-ICE-CM controller: To be used with Model SCM Series only. 178973 1. UV intensity (%): The Cobalt “Plus” series of products incorporate a UV sensor which detects the discrete 254 nm wavelength of the UV lamp. This information is relayed to the Cobalt “Plus”...
-
Page 19: Operation
Possible causes for low UV alarm conditions: a) The UV lamp has perhaps reached a level whereby it can no longer adequately provide a sufficient level of disinfection due to age (> 9000 hours). The lamp should be replaced with a new lamp from the manufacturer of the same size and type. b) The quartz sleeve and/or the sensor window have become stained or dirty. - Page 20 6. 4-20mA output (optional): For those looking for the capability to transmit the UV intensity data to a remote location via a 4-20 mA signal, an optional “Y” cable is available from your dealer (Figure 5A). Please order PN 260134. This “Y” cable comes with 20 meters (65‘) of cable for the 4-20 mA signal.
-
Page 21: Troubleshooting
Troubleshooting: TROUBLESHOOTING GUIDE Symptom Possible Causes Solutions • replace filter cartridge with appropriate 5 Sediment pre-filter micron cartridge clogged Note: check source water supply as fluctuations Pressure Drop may occur in source pressure • flow regulator will result in pressure drop Flow regulator when approaching full flow •... -
Page 22: Dose Flow Chart
DISPLAY FAULT MODES LED display reads • lamp life expired - countdown is at “0” days “A3” • press reset button for a deferred alarm, replace UV lamp • controller is in lamp failure mode LED display is • power system down, allowing it to reset itself; apply power in order to blank confirm that the controller is able to power lamp •... -
Page 23: Specifications
Specifications – 200 series: MODEL SC200-DWS11 SCM200-DWS11 30.3 lpm 30.3 lpm VIQUA Standard (8 gpm) (8 gpm) 30 mJ/cm (1.8 m /hr) (1.8 m /hr) 22.7 lpm 22.7 lpm NSF/EPA (6 gpm) (6 gpm) 40mJ/cm (1.4 m /hr) (1.4 m /hr) 59.7 cm x 20.3 cm x 56 cm... -
Page 24: Specifications
Specifications – 320 Series: MODEL SC320-DWS12 SC320-DWS22 SCM320- SCM320- DWS12 DWS22 49.2 lpm 49.2 lpm 49.2 lpm 49.2 lpm VIQUA Standard (13 gpm) (13 gpm) (13 gpm) (13 gpm) 30 mJ/cm (3.0 m /hr) (3.0 m /hr) (3.0 m /hr) (3.0 m /hr) 37 .8 lpm... -
Page 25: Manufacture's Warranty
® material and workmanship for a period of seven (7) years from the date of purchase. During this time, VIQUA will repair or replace, at its option, any defective Sterilight ® chamber. Please return the defective part to your dealer who will process your claim. - Page 26 IMPORTANT NOTE: Use only genuine Sterilight replacement lamps and sleeves in ® your system. Failure to do so may seriously compromise disinfection performance and affect warranty coverage. General Conditions and Limitations None of the above warranties cover damage caused by improper use or maintenance, accidents, acts of God or minor scratches or imperfections that do not materially impair the operation of the product.
