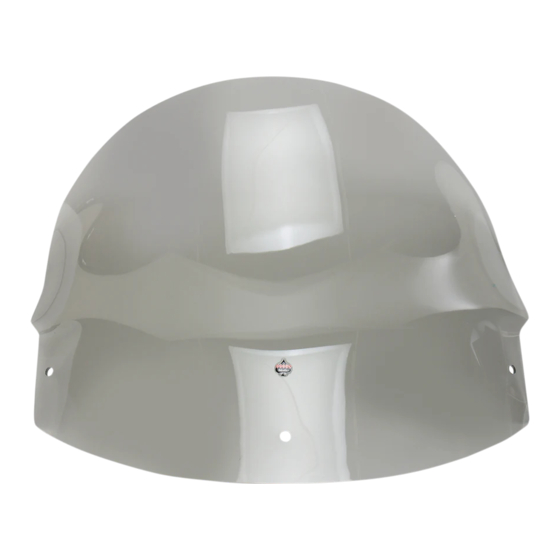

FLARE™ WINDSHIELD FOR HONDA F6B
TOOLS NEEDED FOR INSTALLATION:
- 10mm box end wrench
- 8mm nut driver or 8mm socket and ratchet
- plastic putty knife
Klock Werks cannot be held responsible for any damage resulting from improper installation performed by any consumer or their dealer.
C U S T O M E R C O P Y
NOTE:
Klock Werks Flare™ Windshield uses all of the
stock mounting hardware. Instructions lead you
through removing the stock shield and hardware,
and re-installing the Flare™.
1. Remove mirror boots from
outer fairing.
2. Gently fold the mirrors
forward to expose the 6mm
fairing mount bolts.
3. Place a rag underneath
the mounting bolts to help
prevent them from falling
into the fairing.
4. Using a 10mm wrench,
remove the two mounting
bolts.
K LO C K W E R K S / / G E T K LO C K E D . C O M
QUESTIONS?
EMAIL:
info@getklocked.com
CALL: (605) 996.3700
5. Use a plastic putty knife
or similar non-abrasive
tool, gently lift the nose of
the fairing off of the four
grommets in the lower
fairing.
6. Carefully remove front fairing
and set aside.
7. Use an 8mm wrench to loosen
the windshield mounting
screws and remove the stock
windshield.
8. Install your new Flare™
Windshield with the hardware
removed in step 7 and
torque fasteners to factory
specifications.
Reference your service manual for
proper windshield torque specs.
Over-tightening may crack windshield
material.
SEE PAGE 2 FOR VENT REPLACEMENT
