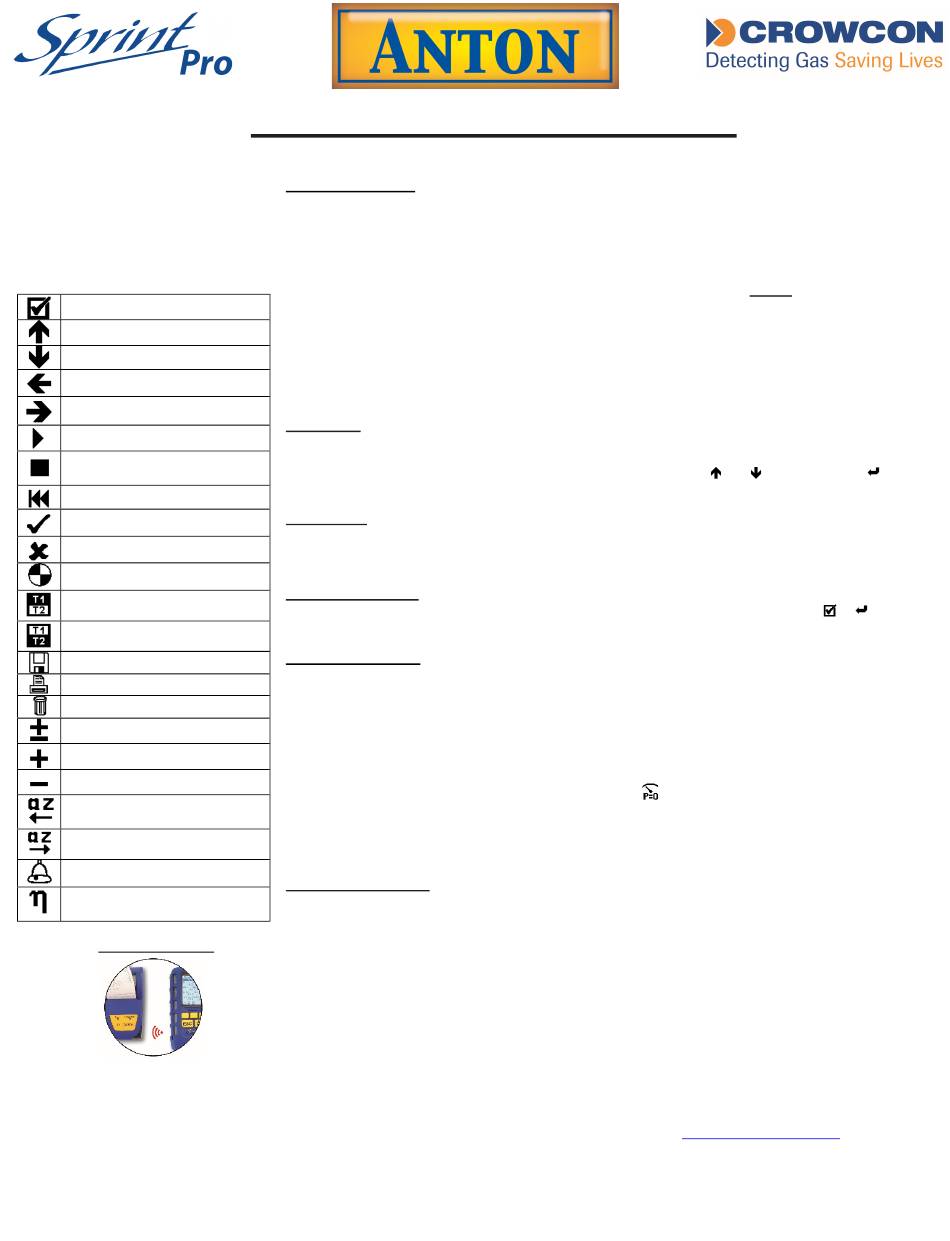

Anton Sprint Pro 1 Quick Start Manuals

Summary of screen icons
Select, pick or action
Up item or entry
Down item or entry
Left field
Right field
Start timed test
Stop timed test
Restart timed test
Yes, pass or done
No or fail or cancel
Purge or pump running icon
Select temp 1 (flow)
(Differential Temperature Test)
Select temp 2 (return)
(Differential Temperature Test)
Save log
Export report/log to IR Printer
Delete
Edit value
Increase value
Decrease value
Descend through character
list
(string edit)
Ascend through character list
(string edit)
CO Alarm
Select Net/Gross/NetHE
Efficiency
IR Printer Alignment
Unit 6 Greenhill House, 26 Greenhill Crescent, Watford Business Park, Watford WD18 8JA
Tel. No: +44 (0)870 428 0075
Quick Start Guide - Sprint Pro 1
IMPORTANT NOTES:
Please read the user manual for full instructions on the use of Sprint Pro this guide should be
used for a quick reference only (full user manual is available at www.anton-group.com).
Observe all warnings and instructions detailed in the user manual or as prompted by the
analyser.
Before use ensure Sprint Pro is in good repair and do not use if damaged or if calibration has
expired.
Sprint Pro must only be used with the Sprint Pro Flue Probe Assembly and always with the water
trap and filters in place.
The water trap must be dried after use and before Sprint Pro Flue Probe Assembly is returned to
carry case.
Connect the Flue Probe Assembly to Sprint Pro before switching on and do not insert probe into
flue until after the zeroing process is complete.
Always start Sprint Pro in clean air.
Sprint Pro will lock out its Test Menu once calibration has expired.
O
SWITCH-ON
Press and hold the ON/OFF/ENTER key for two seconds until you hear two beeps. Ensure the gas
exhaust outlet on the side of the FGA is not blocked. After warm-up is complete, Sprint Pro will display
the Main Menu screen. You can now navigate the menu system using the
and ESC keys on the analyser.
SWITCH-OFF
Press and hold the ON/OFF/ENTER button for approximately two seconds until you hear a rising beep.
Press the ESC key to abort switch off sequence and return to Test Menu. Note: Unit will purge and
shut down once purge complete.
Charging battery
PERFORMING TESTS
To enter any test screen, select the required test from the menu and use the soft key marked
To end any test, press the ESC key.
FLUE GAS ANALYSIS
Select Flue gas analysis from the Test Menu. The first time this option is entered after each switch on
the Sprint Pro will perform a 'zero'. Following a successful 'zero', Sprint Pro will begin taking
measurements. Use the soft keys to log or print the results.
Press the ON/OFF/ENTER button to display the four screens available:
Screen 1: O , CO, CO , CO/CO
2 2
Screen 2: O , XSair, temperature and efficiency.
2
Screen 3: Combines elements from previous screens.
Screen 4: Temp Flue, Temp inlet, Net Temp.
To perform a manual pressure 'zero', use the soft key marked
To change the efficiency readings (Net, Gross – for NetHE see user manual), use the soft key marked η
in flue gas screen 2.
Note: The pump will remain on and continue purging for some time after leaving this option to clear any
residual gas
TEMPERATURE TESTS
Sprint Pro can perform a differential temperature test with one or two thermocouple probes. To begin
test, select Diff Temperature from the Test Menu. Check the units displayed are the correct temperature
scale. Note: If no probes are connected Sprint Pro will display ####.
Two probe test
Connect both probes to the K-type connectors and place probes in position. The screen will display the
temperature of probe 1, probe 2, and the differential temperature. Use the soft keys to log or print the
results as required.
Single probe test
When using only a single probe Sprint Pro will display an additional icon on the screen to allow the first
and second reading to be taken separately.
Anton Industrial Services Limited
Website: www.anton-group.com
Part number: INS29503 Issue 1 September 2018
ratio and pressure.
2
Email:
Page 1 of 2
and soft keys and the
or
in flue gas screen 1 or 3.
