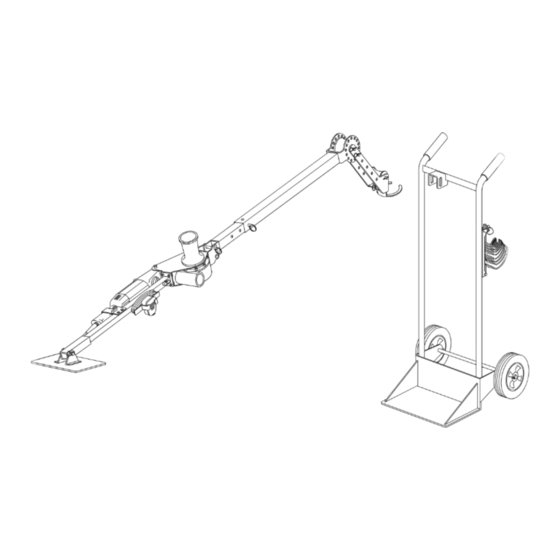

High speed cable puller with mobile cart
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Model 33 High Speed Cable Puller
Serial Number Starting With SPBE-2439
Operating, Maintenance, Safety
This manual is free of charge. All personnel who operate the Cable
Puller should have a copy of this manual and read and understand
its contents. To request a copy of this manual or replacement safety
decals, or for technical assistance, call or write to the address below.
CURRENT TOOLS • P. O. BOX 17026 GREENVILLE, SC 29606
800.230.5421 or 864.721.4230 • FAX 864.721.4232
with Mobile Cart
and Parts Manual
Read and understand this material before
operating or servicing the Cable Puller. Failure
to understand how to safely operate and service
this unit may result in serious injury or death.
www.currenttools.com
10/14

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 33 and is the answer not in the manual?

Questions and answers

Related Manuals for Current Tools 33

Summary of Contents for Current Tools 33

  • Page 1 To request a copy of this manual or replacement safety decals, or for technical assistance, call or write to the address below. CURRENT TOOLS • P. O. BOX 17026 GREENVILLE, SC 29606 800.230.5421 or 864.721.4230 • FAX 864.721.4232...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS Safety Alerts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Important Safety Information .

  • Page 3: Safety Alerts

    SAFETY ALERTS Safety Alert Symbol THIS SAFETY SYMBOL is used to call your attention to instructions that concern your personal safety. It means: ATTENTION! BE AWARE! THIS IS AN IMPORTANT SAFETY INSTRUCTION! Read, understand and follow these safety instructions. Failure to follow these safety instructions may result in injury or death.
  • Page 4 CAUTION WARNING ALWAYS disconnect cable puller before servicing. CAUTION WARNING ALWAYS plug the Model 33 Cable Puller into a grounded DANGER CAUTION receptacle with a 15 amp GFCI protected circuit. DO NOT CAUTION modify the plug provided with the Model 33 Cable Puller.

  • Page 5: Important Safety Information

    DANGER IMPORTANT SAFETY INFORMATION continued DANGER ⁄ WARNING ONLY use " or larger double-braided composite pulling rope with an average breaking strength of 16,000 lbs. NEVER allow the rope to slip on a rotating capstan for more WARNING CAUTION DANGER than a couple of seconds.

  • Page 6: Specifications

    SPECIFICATIONS model no. — 33 Cable Puller (mounted on Mobile Cart) ⁄ width — 21 " depth — 23" height — 48" fully extended length — 104" weight — 75 lbs. – cable puller only 121 lbs. – cable puller mounted on mobile cart maximum pulling force —...
  • Page 7 SET-UP and OPERATING INSTRUCTIONS Model 33 Cable Puller shown pinned Remove the transport pin to release for transport on mobile cart. the cable puller from the mobile cart. Unpin the adjustable tube from the Unfold pivot tube and secure into position as shown using transport pin.

  • Page 8: Set-Up And Operating Instructions

    SET-UP AND OPERATING INSTRUCTIONS continued Turn the adjustable tube in the Next, to position the extension direction needed for the type pull arm to the desired angle for the pull, (UP, DOWN, SIDE – See COMMON remove the pin that allows the extension SET-UPS on page 11.) and slide arm to be adjusted to various positions back onto the pivot tube to the...
  • Page 9 SET-UP AND OPERATING INSTRUCTIONS continued Next, move the cable puller into position and attach the extension arm onto the conduit coupling. You should hear a ”click“ as the conduit coupling fits into the extension arm. If extension arm is not at the correct angle to attach to conduit coupling, the angle and/or length of the extension arm may be adjusted.
  • Page 10 SET-UP AND OPERATING INSTRUCTIONS continued Depress the foot switch and check the Next, turn the High/Low speed switch rotation of the capstan with the pulling to the desired position, “H” or “L”. rotation decal on the cable puller. To begin the pull, place 2 to 3 wraps of the pulling...

  • Page 11: Common Set-Ups

    COMMON SET-UPS UP PULL DOWN PULL NOTE: Example of extension arm adjusted to shorter length. SIDE PULL...

  • Page 12: Maintenance

    Replace the capstan if it is grooved more than " deep. Gear Box The Model 33 Cable Puller has a vent-free gear box and is factory lubricated for life with synthetic, semi-fluid gear lubricant with an operating range of +5°F to +220°F.

  • Page 13: Exploded View

    EXPLODED VIEW – MODEL 33 CABLE PULLER...

  • Page 14: Wiring Drawing

    EXPLODED VIEW – MOBILE CART AND COUPLINGS WIRING DRAWING POWER CORD FROM MOTOR FOOT- SWITCH 15A PLUG...

  • Page 15: Parts List

    PARTS LIST Item # Parts Description Qty. Part # MOTOR 33 - 1 GEAR BOX 33 - 2 ADAPTER SHAFT 33 - 460 CAPSTAN SHAFT 33 - 462 ADAPTER CAP 33 - 461 CAM-DRILL SWITCH 33 - 735 WHEEL 510 - 2...
  • Page 16 PARTS LIST continued ⁄ SCREW - SOC.HD. CAP - -18 x 2" 33 - 46 ⁄ NUT - -18 NYLON INSERT 2-1301-4 ⁄ " RETAINING RING 33 - 19 ⁄ ⁄ "SQ x 1- " 33 - 49 ⁄ ⁄...
