TP-Link Archer C5200 Quick Installation Manual

Quick Installation Guide
AC5200 Wireless Tri-Band MU-MIMO Gigabit Router
5200

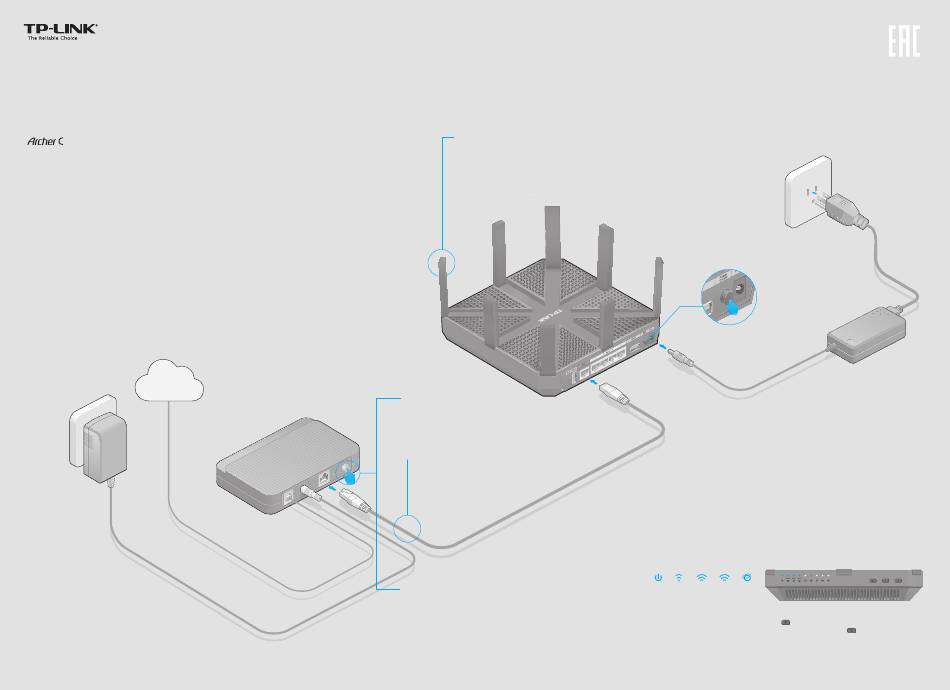

Connecting the Hardware

If your Internet connection is through an Ethernet cable from the wall
instead of through a DSL / Cable / Satellite modem, connect the
Ethernet cable directly to the router's Internet port, then follow steps
5 and 6 to complete the hardware connection.
Internet
Power adapter Modem
1
Place the router horizontally and extend the
antennas to the maximum angle.
Note: For best performance, horizontal installation is recommended.
Antenna direction and position can affect performance in vertical installation situations.
Router
2
Turn off the modem, and
remove the backup battery
if it has one.
3
Connect the modem to the
Internet port on your router
with an Ethernet cable.
4
Turn on the modem, and then wait
about 2 minutes for it to restart.
5
Turn on the router.
6
Verify that the following LEDs are on and stable before continuing with
the configuration.
Power 2.4GHz 5GHz-1 5GHz-2 Internet
On On On On On
Tips:
1. If all the LEDs are off, press the LED On/Off button for about 1 second, then check the LEDs again.
2. If the 2.4GHz, 5GHz-1, and 5GHz-2 LEDs are off, press the Wi-Fi On/Off button
check the LEDs again in a few seconds.
for about 2 seconds, then
