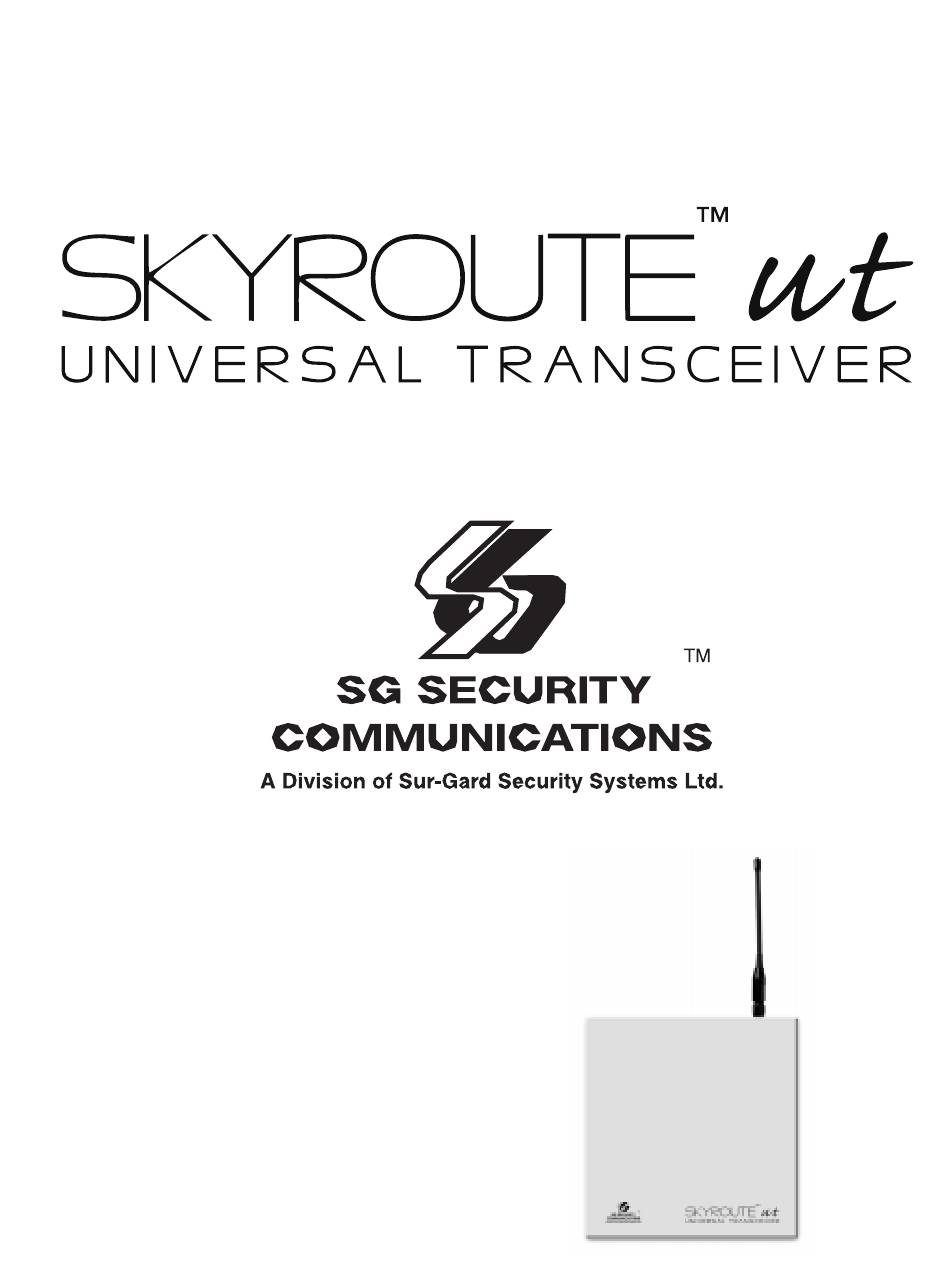

- Page 1 Installation Manual...
-
Page 2: Table Of Contents
PC16OUT with Skyroute UT Transceiver Diagram ................21 Skyroute UT with Low Voltage Output from Alarm Panel Diagram ............22 Existing Alarm Control Panel with Skyroute UT (Switched Positive Bell) Diagram ........23 Existing Alarm Control Panel with Skyroute UT (Switched Negative Bell) Diagram .......24 Summary Diagram of the Skyroute UT ....................25... -
Page 3: Introducing The Skyroute Ut
Introducing the Skyroute UT The Skyroute UT offers a new wireless method of communication for the transmission of event information using the Cellemetry service. Events are transmitted from the Skyroute transceiver via the Cellemetry network to the Clearing House and then to the Central Station in a fast and reliable manner. Skyroute has been designed for simple and straightforward installation. - Page 4 System Supervision Features The system continuously monitors a number of possible trouble conditions including: • AC power failure • Low battery condition • AUX Power Supply Trouble • Bell output trouble • Fault by zone • Tamper by zone Additional Features •...
-
Page 5: Out Of The Box
1.2 Out of the Box Please verify that the following components are included in your system: • one Skyroute module • one PC1-OUT module • one antenna • one PC5003C main control cabinet • one PC580 main control circuit board •... -
Page 6: Terminal Descriptions
Step 5: Skyroute Wiring • Keybus Connection The Skyroute transmitter has 4 terminals marked red, black, yellow and green. Connect these four terminals to the 4 terminals on the main control panel marked KEYBUS (aux+, aux-, yellow and green). • Bell IN Terminal This terminal is used to power the cellemetry modem.This connects to the BELL + on the control panel. -
Page 7: Diagram Of Positive And Negative Trigger
Programmable Output Terminals – PGM1 and PGM2 Each PGM output is designed so that when activated by the panel, the terminal will switch to ground. PGM1 can sink up to 50mA of current. Connect the positive side of the LED or buzzer to AUX+, the negative side to PGM1. PGM2 operates similarly to PGM1. -
Page 8: Diagram Of Siren Trigger
Siren Trigger Use PC1OUT Module Included Negative Siren Trigger (Bell + always active and Bell - switch to ground on alarm) Bell - + 12 volt With this configuration, Zx1 will be trigger on steady Bell and Zx2 will be trigger on pulsed Bell Positive Siren Trigger (Bell - always to ground and Bell + switch to + on alarm) Bell -... -
Page 9: Secure Installation
Secure Installation For a secure installation, the Skyroute UT must be in a secure, locked, and protected area via sensors. All entry points must be protected. An instant trip IR sensor would be the most appropriate for supervision of the panel. -
Page 10: Programming Decimal Data
2. Enter the three-digit section number corresponding to the section you wish to program. The Armed light will turn off. The Ready light will turn on to indicate that the panel is waiting for the information required to complete programming the selected section. 3. -
Page 11: Programming Toggle Option Sections
3.4 Programming Toggle Option Sections Some programming sections contain several toggle options. The panel will use zone lights 1 through 8 to indicate if the different options are enabled or disabled. Press the number corresponding to the option to turn it ON or OFF. Once all the toggle options have been selected correctly, press the [#] key to exit the section and save the changes. -
Page 12: Skyroute Programming Sections [803]
There will be no communication on zones that have exceeded the limit of alarms set in the Swinger Shutdown counter. Swinger shutdown will be reset every day at midnight or when the panel is armed. Once reset, the panel will again communicate normally. -
Page 13: Activating The Skyroute Transceiver
Activating the Skyroute Transceiver Before activating the Skyroute transceiver, ensure that the control panel is correctly wired and programmed and operating properly. Make sure that the Skyroute transmitter is properly connected to the keybus and to the bell positive circuit. When power is applied to the system, the Skyroute will go in initializing mode for few seconds and then give a visual feedback by indicating signal strength on LED1, LED2 and LED3. -
Page 14: Pgm Output Options [009]
4.5 PGM Output Options..[009] Program the programmable outputs PGM1 and PGM2 on the main board by selecting one of the output options listed below (exceptions noted). Main Board PGM OutputsSection [009] NOTE: PGM outputs cannot be completely disabled in installer’s programming. To disable a PGM output completely, you must remove all wiring from the output. -
Page 15: Pgm Output Attributes
PGM Output Attributes In addition to programming the output type, you must also program the PGM output attributes for each output. PGM output options [09] “System Trouble” and [10] “System Event” have their own unique set of attributes listed below the description of each output type. -
Page 16: Installe's Lockout [Installer's Code]
4. Apply AC power to the main panel. 5. When Zone Light 1 is lit on the keypad the default is complete. 6. Remove AC power from the control . 7. Reconnect all original wiring and power up the control. NOTE: AC power must be used to power the panel. -
Page 17: Programming Work Sheets
Programming Work Sheets Basic Interface Programming Zone Definitions 00 Null Zone (Not Used) 11 24 Hour [001] Zone 1-8 Definitions Default Default 01 I_______I_______I Zone 1 00 I_______I_______I Zone 5 03 I_______I_______I Zone 2 00 I_______I_______I Zone 6 04 I_______I_______I Zone 3 00 I_______I_______I Zone 7 04 I_______I_______I Zone 4 00 I_______I_______I Zone 8... - Page 18 Downloading Options [499] [Installer’s Code] [499] Initiate PC-Link (Local Downloading) [803] Skyroute Programming 08 Fire 09 Supervisory 11 Burglary 12 Hold-up 13 Gas 14 Heat 15 Medical 16 Panic 17 Emergency [01] Zone 1-4 Reporting Codes Default Default I_____I_____I Zone 1 I_____I_____I Zone 5 (not used) I_____I_____I Zone 2 I_____I_____I Zone 6 (not used)
- Page 19 [13] Skyroute Test Rates I_____I Option 1 Industrial Disabled I_____I Option 2 Commercial and Business Disabled I_____I Option 3 Residential and Retail Disabled I_____I Option 4 Keybus Tests Enabled Disabled I_____I Options 5 to 8 For Future Use [22] Transmission Options I_____I Option 1 Alarms/Restores...
- Page 20 [75] Maintenance Alarm Reporting Codes Default Default FF I_____I_____I Battery Trouble Alarm FF I_____I_____I Aux Power Supply Trouble Alarm FF I_____I_____I AC Failure Trouble Alarm FF I_____I_____I TLM Trouble Code FF I_____I_____I Bell Circuit Trouble Alarm FF I_____I_____I General System Trouble FF I_____I_____I Fire Trouble Alarm FF I_____I_____I General System Supervisory [76]...
-
Page 21: Antenna Relocation Diagram
Skyroute UT Antenna Cable Installation... -
Page 22: Pc16Out With Skyroute Ut Transceiver Diagram
12V 7.0Ah Typical battery Bolt charge current is 360 mA. Ground + AUX - BELL YEL GRN Z4 RING TIP R-1 T-1 EGND 120Vac 60Hz PRIMARY BELL + BELL IN SKYROUTE UT *Optional device not included with the Skyroute UT... -
Page 23: Skyroute Ut With Low Voltage Output From Alarm Panel Diagram
Skyroute UT Transceiver (With low voltage output from Alarm Panel) GENERIC CONTROL PANEL – BELL Programmable Output Switched to ground Connection for PC-Link SKYROUTE CN Max. LED 1 PC580 Signal Strength LED 2 Indicator LED 3 Min. LED 4 Rx/Tx... -
Page 24: Existing Alarm Control Panel With Skyroute Ut (Switched Positive Bell) Diagram
Existing Alarm Control with a Skyroute UT Transceiver (Switched Positive Bell) GENERIC CONTROL PANEL – BELL Parallel with Siren or Bell 50 FT MAX PC1OUT 20 FT MAX Connection for PC-Link SKYROUTE CN LED 1 Max. PC580 Signal Strength LED 2... -
Page 25: Existing Alarm Control Panel With Skyroute Ut (Switched Negative Bell) Diagram
Existing Alarm Control with a Skyroute UT Transceiver (Switched Negative Bell) GENERIC CONTROL PANEL – BELL 50 FT MAX PC1OUT 20 FT MAX Connection for PC-Link SKYROUTE CN LED 1 Max. PC580 Signal Strength LED 2 Indicator LED 3 Min. -
Page 26: Summary Diagram Of The Skyroute Ut
Skyroute UT Transceiver Positive Trigger Negative Trigger Siren Trigger Use PC1OUT Module Included 5.6K 5.6K Negative Siren Trigger (Bell + always active and Bell - switch to ground on alarm) Bell - + 12 volt COM Z COM Z With this configuration, Zx1 will be trigger on... -
Page 27: Appendix A
Appendix A SIA Communications For Skyroute SIA Communication Format: The SIA communication format used in this product follows the Level 2 specifications of the SIA Digital Communication Standard - February 1993. This format will send the Account Code along with a its data transmission. Below are the Zone Alarms & Alarm Restores (Zones 01-32) as well as any additional codes that can be transmitted;... - Page 28 SIA Communications For Skyroute(continued) Event Description SIA Message Zone# Identified Duress Alarm HA00 Opening After Alarm OR00 Keypad [F]ire FAzz/FHzz Keypad [A]uxiliary MAzz/MHzz Keypad [P]anic PAzz/PHzz PGM2: 2 Wire Smoke FA99/FH99 Audible 24 Hour UA99/UH99 Silent 24 Hour UA99/UH99 Zone Tamper (1-32) TAzz Zone Tamper Restorals (1-32) TRzz...
- Page 30 Limited Warranty Sur-Gard Ltd. warrants that for a period of sixty months from the date of purchase, the product shall be free of defects in materials and workmanship under normal use and that in fulfillment of any breach of such warranty, Sur-Gard Ltd. shall, at its option, repair or replace the defective equipment upon return of the equipment to its repair depot.
