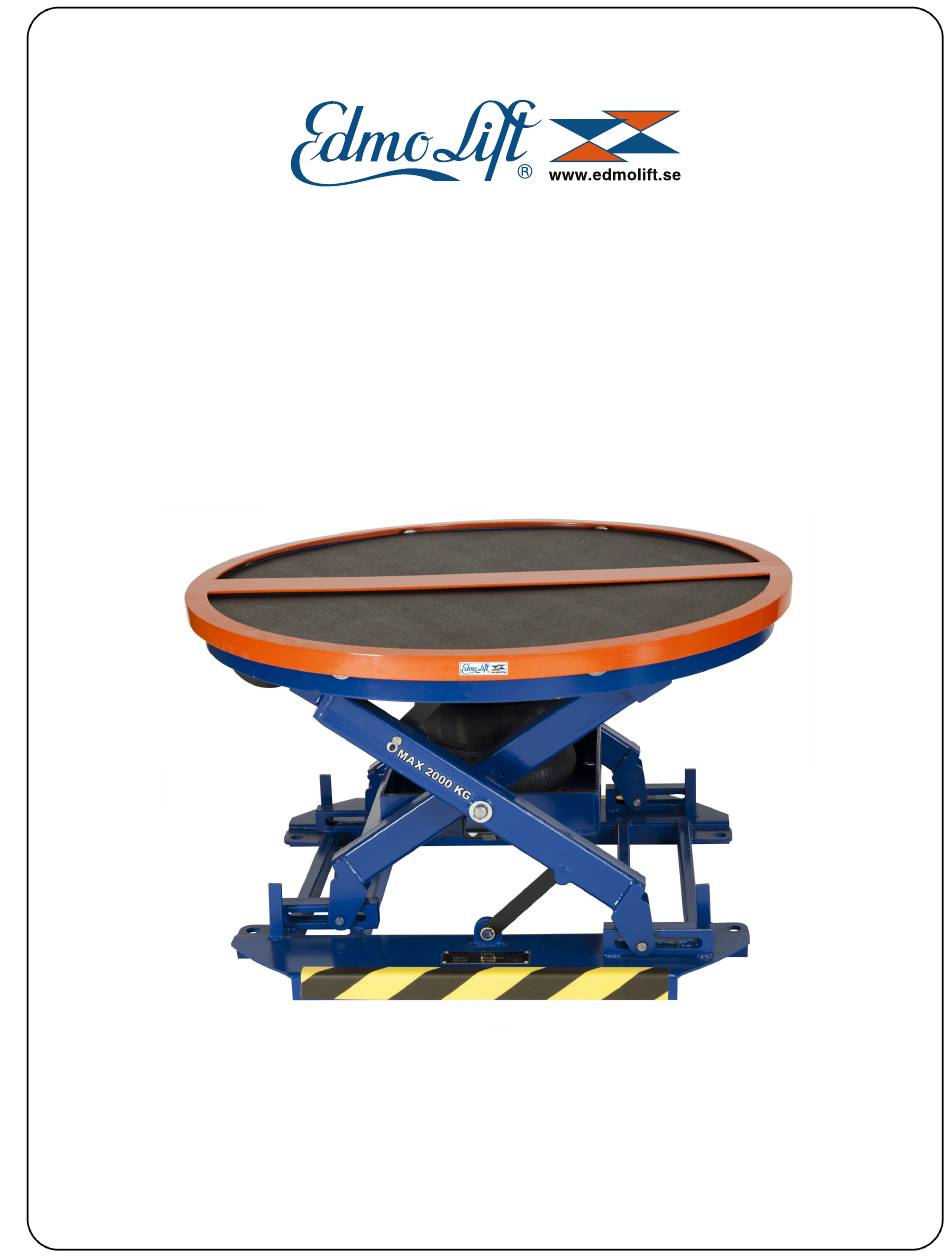

- Page 1 Owner’s Manual Pneumatic Pallet Leveler PL 2002 EdmoLift AB Website: www.edmolift.com Jägaregatan 11 Telephone: +46 (0)611-837 80 SE-871 42 HÄRNÖSAND Fax: +46 (0)611-51 15 80 SWEDEN Email: info@edmolift.se 86177 March 2014...
- Page 2 OWNER’S MANUAL This manual was current at the time of printing. To obtain the latest, most updated version, please contact EdmoLift AB or goto our website: www.edmolift.com under Manuals & Catalogues you will find a complete list of current owner’s manuals to print.
-
Page 3: Table Of Contents
Removing Loads Manually............12 Operating Safely – Manual Use ............ 12 Loading with a Fork Lift ............... 13 Unloading with a Fork Lift ............. 13 Moving the PL 2002 ............... 13 TROUBLESHOOTING ..................14 Troubleshooting Check List............14 Maintenance ................... 14 Ordering Replacement Parts ............ -
Page 4: Introduction
The unit may also be used for the reverse application. An empty pallet may be placed on the PL 2002. The unit gradually lowers as boxes or parts are added. Again, this keeps the top of the load at the correct height. Complete pallets may be loaded or unloaded using a stacker or fork lift. -
Page 5: Responsibility Of Owners And Users
It is the responsibility of the user/purchaser to advise the manufacturer where deflection may be critical to the application. Repairs All repairs shall be made by qualified personnel in conformance with EdmoLift’s instructions. Operators Only trained personnel and authorized personnel shall be permitted to operate the positioner. -
Page 6: Safety
OWNER’S MANUAL SAFETY The PL 2002 unit has been carefully designed to be as safe as possible for operators and service workers. If you take a few common-sense precautions, you will be able to use the unit safely. However, the PL 2002 is a powerful unit with moving parts, and is capable of causing personal injury if proper precautions are not taken. - Page 7 Never paint over the labels. If any of the labels are missing, please contact EdmoLift for replacements. The safety labels help to protect your workers. PALLET LEVELER PL 2002...
-
Page 8: Installation Instructions
Choose the place where you want to set If you have any questions about the steps in the unit. It is very important that the PL 2002 be the installation process, please call EdmoLift. located on a smooth and flat surface. Check the floor surface carefully and make sure that it is free of all loose debris and dirt. -
Page 9: Operation Notes
The boards or nails on the bottom grease to collect. These materials may cause of the pallet should not extend down more you to slip while the unit is operating, and you than 3 mm. may be injured. PALLET LEVELER PL 2002... -
Page 10: Specifications
Maximum system air pressure 4,21 bar Safety relief valve setting 8,62 bar Rotating ring, outer diameter 1110 mm Rotating ring, inner diameter 1032 mm Ship weight 220 kg Operating environment indoor Operating temperature -18 ºC to 49 ºC PALLET LEVELER PL 2002... -
Page 11: Operating Instructions
120º APART APPLY BLACK AND YELLOW TAPE TO SIDE AND TOP OF FORK POCKETS 2 X 3 SERIAL TAG ON LOWER CROSS TUBE Item 2990413* *1 PSI = 0,06895 bar Item 2990414* Decal 43588 Figure 1. PALLET LEVELER PL 2002... -
Page 12: Loading Manually
WARNING! Ensure that loading and unloading of the PL 2002 is done in even layers. Loading or unloading a load on one side may cause the load to tip over and you may be injured. -
Page 13: Loading With A Fork Lift
See Figure 5. the pallet. You may be hurt or the unit or load may be damaged. • Lower the load until the airbag on the PL 2002 is fully compressed. Unloading with a Fork Lift •... -
Page 14: Troubleshooting
With no load on the unit, pressurize the actuation 3. Gradually load the PL 2002 to 75% of the setup system to 4,27 bar. Place about half of the pallet capacity, up to 1500 kg maximum. Check to see if load onto the unit, then slowly bleed air from the the unit is fully compressed. -
Page 15: Ordering Replacement Parts
Ordering Replacement Parts EdmoLift has carefully chosen the components in your unit to be the best available for the purpose. Replacement parts should be identical to the original equipment. EdmoLift will not be responsible for equipment failures resulting from the use of incorrect replacement parts or from unauthorized modifications to the unit. -
Page 16: Warranty
EdmoLift AB discretion. This is buyer’s sole remedy. Except as stated herein, EdmoLift AB will not be liable for any loss, injury or damage to persons or property, nor for direct, indirect, or consequential damage of any kind resulting from failure or defective operation of said material or equipment.
