Focus Bikes R.A.T. Manual

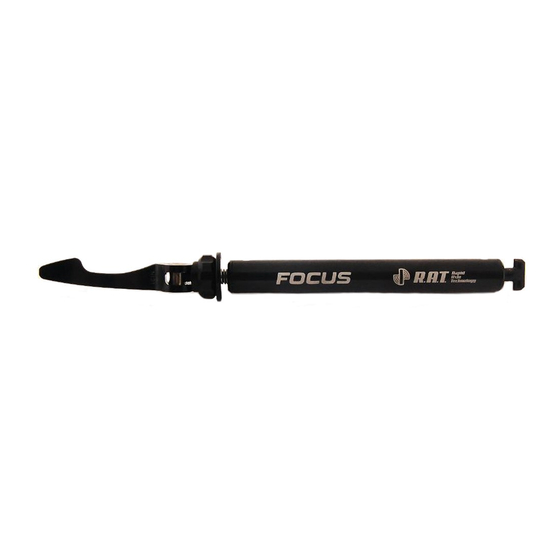

R.A.T.
MANUAL
1

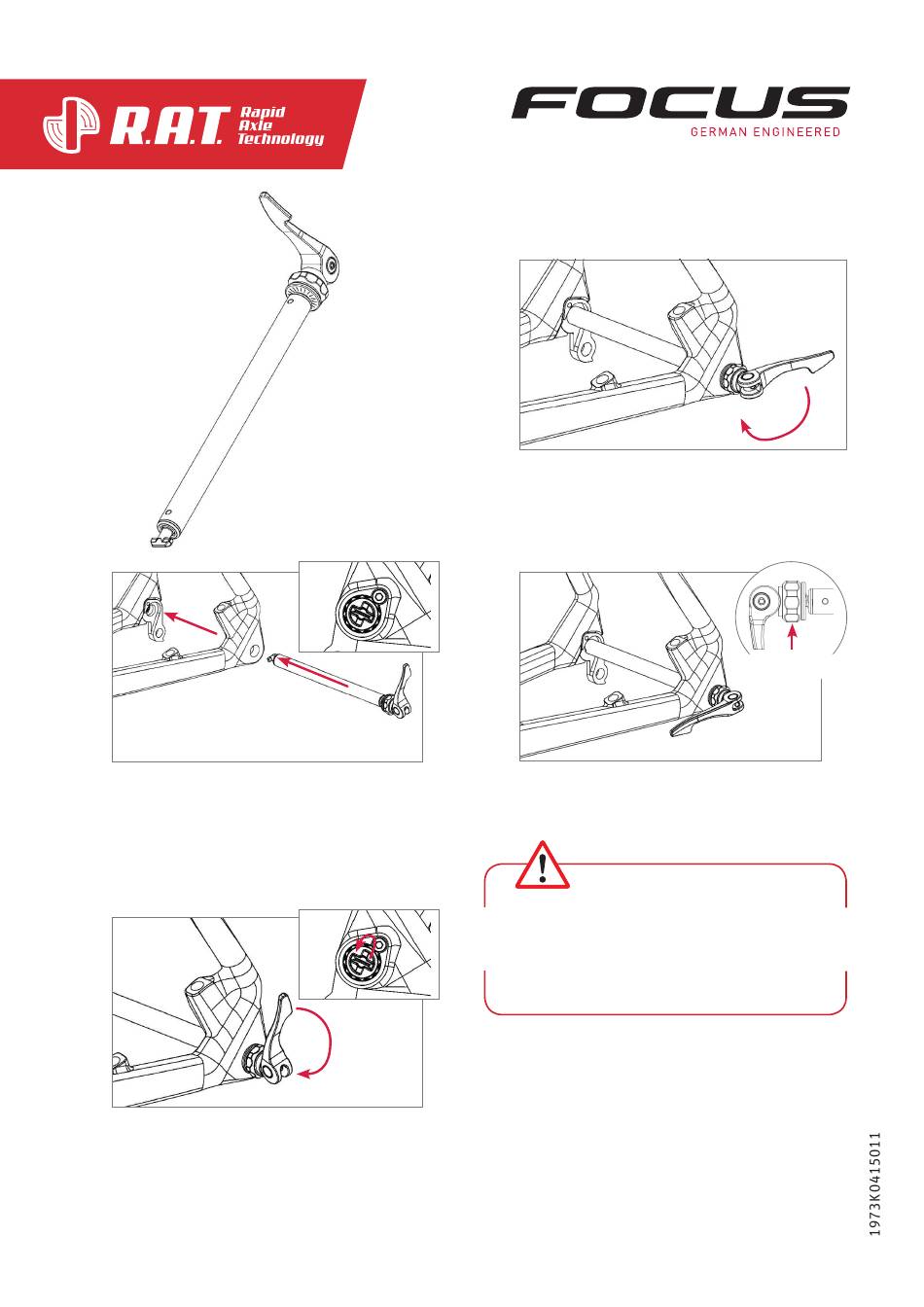

Insert the R.A.T. axle with open lever in the
correct position.The T-end of the axle should
be aligned with the insert.
2
Rotate the axle 90° clockwise till the T-End is
stopped by the insert. Never overtighten the
axle or use a lot of force to turn it.
The axle should rotate easily.
R . A . T . t h r u - a x l e s a r e s o l d u n d e r l i c e n c e i n t h e U K ( U K p a t e n t G B 2 4 1 4 9 7 1 B )
3
Flip the lever appr. 180° until it stops.
4
If the lever is clamping to much/less adjust the
preload nut until the lever is clamping stoutly.
Incorrect closed lever or low clamping force could
result in disengagement of the wheel may result in
injuries or death
Turn to adjust play
