Summary of Contents for Eminent EM4594

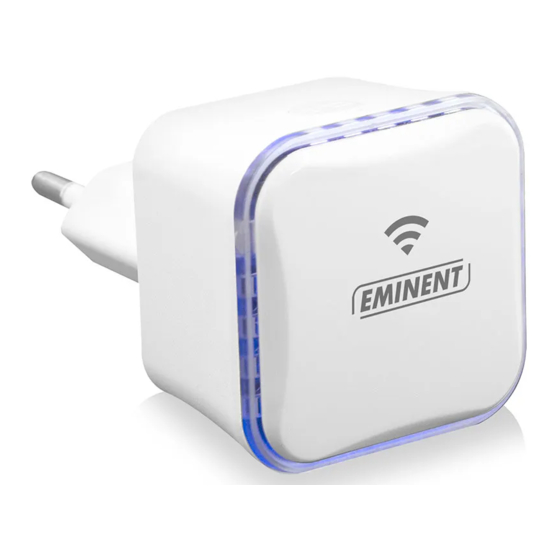

- Page 1 EM4594 Mini Wifi Repeater with WPS...
-
Page 2: Table Of Contents
7.0 Warning and points of attention ................13 8.0 Warranty conditions ..................... 15 1.0 Introduction Congratulations with the purchase of this high-quality Eminent product! This product has undergone extensive testing by Eminent’s technical experts. Should you experience any problems with this product, you are covered by Eminent warranty. -
Page 3: Device Overview
WPS and Reset button LABEL DESCRIPTION WPS Button Connect EM4594 to any WPS capable devices (1 sec. to connect to router. Reset Press the reset button for at least 6 seconds to restore the device to default factory settings. Wait approx. 1 minute for the... - Page 4 ENGLISH Bottom LABEL DESCRIPTION LAN port Connect to computers / Ethernet devices...
- Page 5 ENGLISH Side panel...
-
Page 6: Where To Place The Em4594 Repeater
Hint: Before placing the EM4594 on its destined location, the device needs to be setup. Setting up the EM4594 wireless repeater can be done best, if the EM4594 is located near your wireless modem/router. After setting up the EM4594, you can place the EM4594 at a location defined by using the signal indicator LEDs and the recommended setup as described previously. - Page 7 ENGLISH 6. The connection between your wireless router and the EM4594 wireless repeater will be established automatically. This will take approx. 1 minute including reboot. Note: If the WPS button is used, the SSID and network key and frequencies are the same as used on your wireless router.
-
Page 8: Manual Configuration Using Encryption Key
2. Wait for the signal indicator to flash blue. This will take approximately 1 minute. 3. Connect to the EM4594 via Wi-Fi SSID: Eminent_repeater, or use the Ethernet cable to connect directly from your PC LAN port to the EM4594 “LAN” port 4. Open your internet browser and type http://192.168.10.1 in your internet browser and then hit Enter. - Page 9 ENGLISH 7. You will see a screen with all the available Wi-Fi networks. 8. Select the corresponding network you want to connect to in the “Choose” field.
-
Page 10: Access Point Mode
SSID and entering the wireless encryption key of the wireless network you previously connected. Note: After the settings have been applied, the EM4594 will reboot. Your device will no longer be connected to the wireless network SSID of the EM4594. - Page 11 11 | ENGLISH 6. Select “AP Wizard” from the Menu. 7. The following screen will appear:...
- Page 12 12. Install your Ethernet cable from modem/router or router into the “LAN” port of the repeater. 13. Connect the EM4594 back to the wall outlet. 14. Wait until the “signal indicator” lights up the blue led. This will take approximately 1 minute.
-
Page 13: Frequently Asked Questions And Other Related Information
A power socket is needed which should be close and easy accessible from the device. Repairing of the device should be done by qualified Eminent staff. Never try to repair the device yourself. The warranty immediately voids when products have undergone self-repair and/or by misuse. - Page 14 - Unplug the device when you don’t use it for a long time - Use the device at a well ventilated place *Tip: Eminent manuals are written with great care. However, due to new technological developments it can happen that a printed manual does not longer contain the most recent information.
-
Page 15: Warranty Conditions
Eminent warranty. Products are not covered by the Eminent warranty when exposed to incorrect/improper use, external influences or when opening the service parts of the product by parties other than Eminent.
