Summary of Contents for Eminent EM4595
- Page 1 EM4595 Universal Wi-Fi repeater with WPS...
-
Page 2: Table Of Contents
2.0 Where to place the EM4595 repeater? ..............5 3.0 Configure the wireless repeater using the WPS button .......... 6 4.0 Connecting a wireless WPS adapter to the EM4595 ..........7 5.0 Configuring the EM4595 manually ................. 7 5.1 Manual configuration ..................7 6.0 Access Point mode .................... -

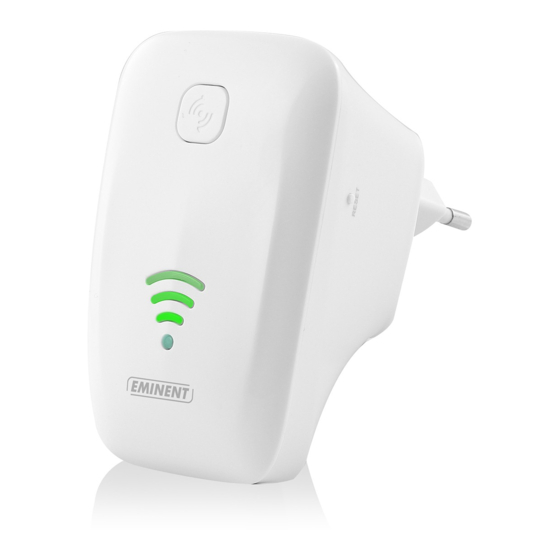

Page 3: Device Overview
Connected 90% and above (Excellent) 2 BARS Connected 55-89% (Recommended) 1 BAR Connected 10-54% (Weak) LABEL DESCRIPTION WPS Button Connect EM4595 to any WPS capable devices (5 sec. to connect to router/AP or 2 sec. when connecting a wireless client) - Page 4 ENGLISH Bottom panel Side panel Reset LABEL DESCRIPTION RESET Press the reset button for 5-7 seconds to restore the device to default factory settings wait approx. 1 minute for the device to reboot (Signal indicator turns green). Ethernet port Connect to computers / Ethernet devices, or modem/router using as AP...
-
Page 5: Where To Place The Em4595 Repeater
Hint: Before placing the EM4595 on its destined location, the device needs to be setup. Setting up the EM4595 wireless repeater can be done best, if the EM4595 is located near your wireless router. After setting up the EM4595, you can place the EM4595 at a location defined by using the signal indicator LEDs and the recommended setup as described previously. -
Page 6: Configure The Wireless Repeater Using The Wps Button
1. Please check if your wireless modem/router has a WPS button. Also check whether your wireless router has a properly configured internet connection. 2. Connect the EM4595 to a wall outlet. Please place the EM4595 close to the modem/router during setup. -
Page 7: Connecting A Wireless Wps Adapter To The Em4595
It is possible to configure the repeater manually instead of using the WPS button. 5.1 Manual configuration 1. Connect the EM4595 to a wall outlet (preferably close to the modem/router). 2. Wait for the signal indicator to turn green. This will take approximately 1 minute. - Page 8 ENGLISH 6. The Repeaters menu will appear.
- Page 9 Note: After the settings have been applied, the EM4595 will reboot. Your device will no longer be connected to the wireless network SSID of the EM4595.
-
Page 10: Access Point Mode
ENGLISH 6.0 Access Point mode 1. Connect the EM4595 to a wall outlet (preferably close to the modem/router). 2. Wait for the signal indicator to turn green. This will take approximately 1 minute. 3. Connect to the EM4595 via Wi-Fi SSID: Eminent_repeater, or use the Ethernet cable to connect to the EM4595 directly. - Page 11 11 | ENGLISH 7. Select Access Point (AP) The following screen appears. 8. You will notice that the repeater will automatically fill in the default network name from repeater in to Network Name (SSID) field. It is not necessarily needed but we...
-
Page 12: Frequently Asked Questions And Other Related Information
The latest Frequently asked questions for your product can be found on the support page of your product. Eminent will update these pages frequently to assure you have the most recent information. Visit www.eminent-online.com for more information about your product. - Page 13 A power socket is needed which should be close and easy accessible from the device. Repairing of the device should be done by qualified Eminent staff. Never try to repair the device yourself. The warranty immediately voids when products have undergone self-repair and/or by misuse.
-
Page 14: Warranty Conditions
Eminent warranty. Products are not covered by the Eminent warranty when exposed to incorrect/improper use, external influences or when opening the service parts of the product by parties other than Eminent.
