Summary of Contents for McConnel PA 5600

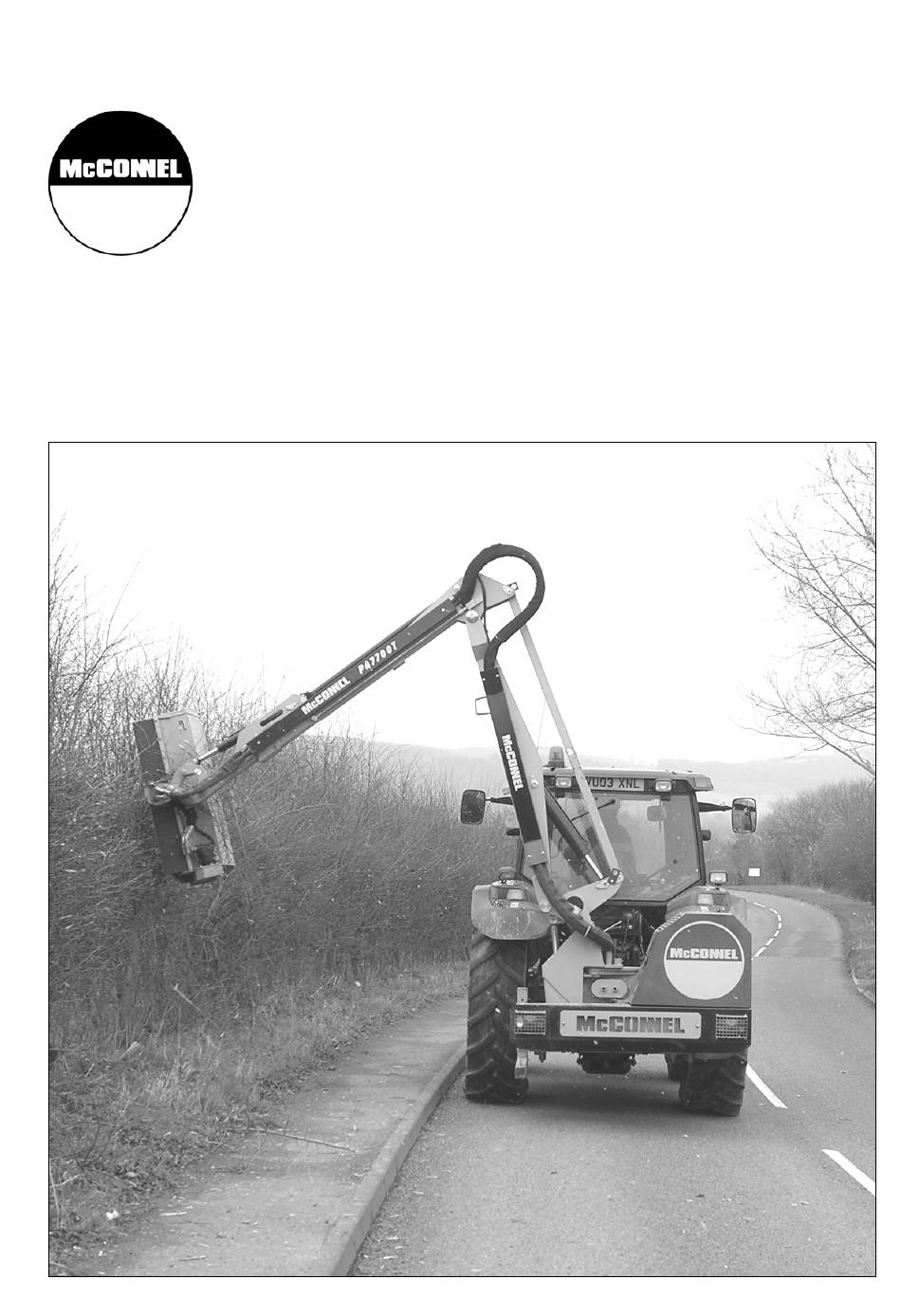

- Page 1 Publication 462 PA 5600/M August 2004 Part No. 41570.62 Revision: 24.04.18 PA 6400/M PA 6500T PA 7700T PA 8000T Operator Manual...
- Page 2 VERIFICATION OF WARRANTY REGISTRATION DEALER WARRANTY INFORMATION & REGISTRATION VERIFICATION It is imperative that the selling dealer registers this machine with McConnel Limited before delivery to the end user – failure to do so may affect the validity of the machine warranty.
- Page 4 1500 hours. Engine warranty will be specific to the Manufacturer of that unit. 1.02. All spare parts supplied by McConnel Ltd and purchased by the end user are warranted to be free from defects in material and workmanship from the date of sale to the original purchaser for a period of 6 months.
- Page 5 2.02. Any fault must be reported to an authorised McConnel Ltd dealer as soon as it occurs. Continued use of a machine, after a fault has occurred, can result in further component failure for which McConnel Ltd cannot be held liable.
- Page 6 MISCELLANEOUS 4.01. McConnel Ltd may waive compliance with any of the terms of this limited warranty, but no waiver of any terms shall be deemed to be a waiver of any other term. 4.02. If any provision of this limited warranty shall violate any applicable law and is held to be unenforceable, then the invalidity of such provision shall not invalidate any other provisions herein.
- Page 7 DECLARATION OF CONFORMITY Conforming to EU Machinery Directive 2006/42/EC McCONNEL LIMITED, Temeside Works, Ludlow, Shropshire SY8 1JL, UK Hereby declare that: The Product; Tractor Mounted Hedgecutter / Grass Mower Product Code; PA56, PA64, PA65, PA77, P800 Serial No. & Date ………………………………… Type …………………………...
- Page 8 The inspection sheet on the following page should be kept in this book as a record. A second sheet is included for you to cut out and photocopy or the inspection sheets can be downloaded from our website at; http://www.mcconnel.com/support/aftersales/default.aspx?nav=After Sales...
- Page 10 POWER ARM PRE-OPERATION Inspection Power Arm ID ________________ Date: _______________ Shift: _______________ WARNING Before conducting the inspection, make sure the tractor engine is off, the key removed, all rotation has stopped and the tractor is in park with the parking brake engaged. Make sure the mower head is resting on the ground or is securely blocked up and supported and all hydraulic pressure has been relieved.
- Page 11 TRACTOR PRE-OPERATION Inspection Power Arm ID ________________ Date: _______________ Shift: _______________ WARNING Before conducting the inspection, make sure the tractor engine is off, the key is removed all rotation has stopped and the tractor is in park with the parking brake engaged. Any implement attached to the tractor is firmly on the ground.
- Page 12 POWER ARM PRE-OPERATION Inspection Power Arm ID ________________ Date: _______________ Shift: _______________ WARNING Before conducting the inspection, make sure the tractor engine is off, the key removed, all rotation has stopped and the tractor is in park with the parking brake engaged. Make sure the mower head is resting on the ground or is securely blocked up and supported and all hydraulic pressure has been relieved.
- Page 13 TRACTOR PRE-OPERATION Inspection Power Arm ID ________________ Date: _______________ Shift: _______________ WARNING Before conducting the inspection, make sure the tractor engine is off, the key is removed all rotation has stopped and the tractor is in park with the parking brake engaged. Any implement attached to the tractor is firmly on the ground.
- Page 14 Shropshire England Telephone: +44 (0)1584 873131 www.mcconnel.com - NOISE STATEMENT - The equivalent daily personal noise exposure from this machine measured at the operators’ ear is within the range 78 – 85 dB, these figures apply to a normal distribution of use where the noise fluctuates between zero and maximum.
-
Page 16: Table Of Contents
LIST OF CONTENTS Page No. General Information Features Safety Information Safety & Information Decals Tractor Requirements Tractor Preparation Axle Bracket/Catch Assembly Fitting Initial Attachment Tractor Attachment Removal PTO Driveshaft Installation Hydraulic Oil Control Unit Fitting Flailhead Attachment Running Up Procedure Emergency Stopping Pre-Operational Checks Operator Guard... -
Page 18: General Information
GENERAL INFORMATION Read this manual before fitting or operating the machine or accessory. Whenever any doubt exists contact your local dealer or the McConnel Service Department for assistance. Only use ‘Genuine McConnel Parts’ on McConnel machinery and equipment. DEFINITIONS The following definitions apply throughout this manual;... -
Page 19: Features
FEATURES All Models Axle mounting for rigid attachment. Rubber buffer mounted top link pivot. Right or Left hand cutting. 65HP Cast iron gearbox. 72HP variable servo piston pump flail drive - Optional. Independent reversible, on/off rotor operation. ... -
Page 20: Safety Information
SAFETY SECTION This machine has the potential to be extremely dangerous - in the wrong hands it can kill or maim; It is therefore imperative that both owner and operator of the machine reads and understands the following section to ensure they are fully aware of the dangers that do, or may exist, and their responsibilities surrounding the use and operation of the machine. - Page 21 BEFORE USING THIS MACHINE YOU MUST: ▲ Ensure you read all sections of the operator handbook. ▲ Ensure the operator is, or has been, properly trained to use the machine. ▲ Ensure the operator has been issued with and reads the operator handbook. ▲...
- Page 22 ▲ Always disengage the machine, kill the tractor engine, remove and pocket the key before dismounting for any reason. ▲ Always clear up all debris left at the work area, it may cause hazard to others. ▲ Always ensure when you remove your machine from the tractor that it is left in a safe and stable position using the stands and props provided and secured if necessary.
- Page 23 No advice given here can replace ‘good common sense’ and ‘total awareness’ at all times, but will go a long way towards the safe use of your McConnel machine.
- Page 24 Health and Safety Health and Safety Executive Executive Safe use of rotary flail hedge cutters HSE information sheet Agriculture Information Sheet No 21 (Revision 1) Introduction Control measures This information sheet outlines typical hazards when It is extremely dangerous to carry out any work on a using most types of tractor-mounted rotary flail hedge machine while it is under power.
- Page 25 Health and Safety Executive General guidance on safe working Consult your local authority highways department and practice the Department for Transport for advice (see Further reading). Operators should receive adequate instructions ■ and training to enable them to use the machine Further reading safely.
-
Page 26: Safety & Information Decals
SAFETY & INFORMATION DECALS (Power Arms) Power Arm machines are equipped with safety and information decals designed to warn of dangers, operational information and machine protection. Operators must understand the decals and heed all warnings. Keep decals in a good condition and replace immediately if they are damaged or missing. - Page 27 0.5m at a horizontal distance of 2.0m from the rotor. Keep all persons at 90m from the working machine, stop machine if persons are closer. Refer to front hood height setting section for details. 10. Important! Parts information; for safety and performance only use ‘Genuine McConnel Service Parts’.
-
Page 28: Tractor Requirements
TRACTOR REQUIREMENTS Minimum Tractor Weights (including ballast weight if necessary) PA5600 & PA6400 Models– 4000kg. PA6500, PA7700T & PA8000T Models – 4500kg. Minimum HP Requirements: All models – 75 HP Linkage: Category 2 PTO Shaft: Tractor must be equipped with a live drive PTO to enable forward motion to be stopped while the flailhead continues to operate. -
Page 29: Tractor Preparation
VEHICLE/ TRACTOR PREPARATION We recommend vehicles be fitted with cabs using safety glass windows and protective guarding when used with our machines. Fit Operator Guard (part no. 73 13 324) using the hooks provided. Shape mesh to cover all vulnerable areas. Remember the driver must be looking through mesh and/or polycarbonate glazing when viewing the flail head in any working position - unless the vehicle/ cab manufacturer... -
Page 30: Axle Bracket/Catch Assembly Fitting
AXLE BRACKET/CATCH ASSEMBLY FITTING Bolt axle plates to the tractor axle at either 1.0m or 1.1m apart - this may necessitate the to removal of the tractor's check chains and/or assister ram brackets, if this is the case the axle plate will include replacement brackets for these functions. The axle brackets supplied will be accompanied by a fitting sheet with instruction for their attachment to your tractor, follow the instructions exactly as they are specific to your particular make and model of tractor. -
Page 31: Initial Attachment
INITIAL ATTACHMENT TO TRACTOR The machine will be delivered in a partially dismantled condition, secured with transport strap and banding. Choose a firm level site. Remove the transport strap, banding straps and loose items. Fill the hydraulic tank to the correct level using a type and grade of oil listed in the oil chart (or high quality equivalent) - Page 32 The correct mounting position is determined by the formula outlined below - Note: in some cases certain tractors have a low PTO and/or small wheels and therefore have limited ground clearance, where this is the case, the operator must decide what is sufficient ground clearance for his needs;...
-
Page 33: Tractor Attachment
TRACTOR ATTACHMENT Reverse tractor squarely into position adjacent to the machine and connect the draft links to the machine - manoeuvre tractor until both draft pin rockers are vertical. Lifting equipment may now be removed. Raise the machine on the tractors linkage sufficient only for the latch bar to fully engage in the axle catch. - Page 34 Raise the machine on the tractors linkage until the frame is vertical. Fit top link. Measure PTO shaft and cut to dimension shown - see diagram opposite and refer to PTO installation section for further details. For subsequent use on different tractors measure again;...
- Page 35 Fit PTO shaft in position. Attach the torque chains to a convenient location to prevent rotation of the shaft guards. Fit machine controls into the cab. Request Assistance Operate 'Lift Up' on machine controls sufficient only for the dipper arm to clear the ground.
- Page 36 Raise the stand legs into the work position and secure with their pins - see diagram opposite. Tighten check chains and/or stabiliser bars. The machine should now be carefully operated throughout its full range of movements to check hoses are not being strained, pinched, chafed or kinked, and that all movements are functioning correctly.
-
Page 37: Removal
REMOVAL FROM TRACTOR (Axle Mounted Machines) Removal of the machine must always be performed on a firm level site. Keep all bystanders at a safe distance from the machine. Never stand between tractor and machine with the tractor running or when operating the tractor’s draft links. -
Page 38: Pto Driveshaft Installation
PTO DRIVESHAFT INSTALLATION The PTO driveshaft attaches between the tractor and the machine gearbox to transfer the power required to the run and operate the machine – it is important to achieve the correct shaft length to avoid risk of it ‘bottoming out’ when raising or lowering the machine. The procedure for measuring and cutting the shaft is as follows: Measuring the PTO Shaft With the machine attached to the... -
Page 39: Hydraulic Oil
HYDRAULIC OIL Hydraulic Oil Reservoir Fill the tank with oil selected from the chart below or a good quality equivalent to a point where the level is between the minimum and maximum marks on the tank gauge. When the machine is initially run the level will drop as the oil is drawn into the circuit - top back up as required to the correct level on the gauge. -
Page 40: Control Unit Fitting
FITTING OPERATOR CONTROL UNITS Fitment of the operator controls in the tractor cab will vary depending on the particular model or specification of machine – the information below lists the differing methods of fitment for the various types of controls available. NOTE: Electric control units work within the range of 12v-16v DC and will require a minimum power supply of 12v DC. -
Page 41: Flailhead Attachment
FLAILHEAD ATTACHMENT For ease of attachment and safety this procedure is best performed on a firm level site. With the tractor parked alongside the flailhead operate the controls of the machine to position the pivot bracket of the machines head angling mechanism directly behind flailhead with the base of the hose tray (or junction bracket) parallel to the ground. -
Page 42: Running Up Procedure
RUNNING UP PROCEDURE Before initial use of a new machine, all lubrication points must be greased and the gearbox and oil tank levels checked and where required topped up before attempting to use the machine. See maintenance section for details. Ensure that the rotor control valve is in ‘STOP’... -
Page 43: Pre-Operational Checks
PRE-OPERATIONAL CHECKS Before initial use of a new machine, all lubrication points must be greased and the gearbox and oil tank levels checked and where required topped up before attempting to use the machine. Check: Oil level in Hydraulic Tank. Check: Oil level in Gearbox. -
Page 44: Operator Guard
OPERATION Operator Guard Machine Guards Before each period of work, check that all the relevant tractor and machine guards are in place and in good working condition. Small splits and abrasions on the lower edges of the flail head rubber flaps are permissible, but should one or more of these cuts or splits become fifty per cent or more of the flap height they should be replaced immediately as they will have become ineffective for debris containment. -
Page 45: Pre-Work Preparation & Precautions
PRE-WORK PREPARATION & PRECAUTIONS IMPORTANT: Always read the book first before attempting to operate the machine – practise operating the machine, without the rotor running, in a safe open space until you are fully familiar with all controls and functions of the machine. Only begin using the machine for work when you are confident that you have mastered the controls and operation sufficient for safe use of the machine. - Page 46 ‘Running In’ a New Machine For the first day’s work with a new machine it is recommended that tractor forward speed is restricted to 3 km/hr. (2 mph) maximum. This will allow machine components ‘bed in’ and allow the operator to become familiar with the controls and their response under working conditions whilst operating at a relatively slow speed.
-
Page 47: Electric Switchbox Controls
ELECTRIC SWITCHBOX CONTROLS Machines with Electric Switchbox Controls will be supplied with one of the control units shown below, the particular version will be dependent on the specification of the machine; machines fitted with cable rotor control will use the unit shown left whilst machines with electric rotor control will use the unit shown right –... - Page 48 ARM OPERATION Auto Reset Tele or Midcut/VFR Models only...
- Page 49 HEAD FLOAT OPERATION (Angle Float standard / Lift Float optional) Angle Float OFF Lift Float OFF Angle Float OFF Lift Float ON Angle Float ON Lift Float ON ROTOR OPERATION – Electric Rotor Control Models only NOTE: The following section relates to machines with Electric Rotor Control only – for Cable Rotor Control models refer to the cable rotor control section.
- Page 50 Switching the Rotor On For safety reasons, to prevent accidental starting of the rotor, the ‘Rotor On’ switch cannot be activated in a single operation or without first selecting the direction of cut – the procedure for starting the rotor is as follows: Select the required cutting direction - the Rotor On/Off Switch (D) must then be switched upwards and held in position for a minimum of 8 seconds before switching it into the fully down ‘on’...
-
Page 51: Electric Monolever Controls
ELECTRIC MONOLEVER CONTROLS Machines with Electric Monolever Controls will be supplied with one of the control units shown below, the particular version will be dependent on the specification of the machine; machines fitted with cable rotor control will use the unit shown left whilst machines with electric rotor control will use the unit shown right –... - Page 52 ARM OPERATION Auto Reset Tele or Midcut/VFR Models only...
- Page 53 HEAD FLOAT OPERATION (Angle Float standard / Lift Float optional) Angle Float OFF Lift Float OFF Angle Float OFF Lift Float ON Angle Float ON Lift Float ON ROTOR OPERATION – Electric Rotor Control Models only NOTE: The following section relates to machines with Electric Rotor Control only – for Cable Rotor Control models refer to the cable rotor control section.
- Page 54 Switching the Rotor On For safety reasons, to prevent accidental starting of the rotor, the ‘Rotor On’ switch cannot be activated in a single operation or without first selecting the direction of cut – the procedure for starting the rotor is as follows: Select the required cutting direction - the Rotor On/Off Switch (D) must then be switched upwards and held in position for a minimum of 8 seconds before switching it into the fully down ‘on’...
-
Page 55: Xtc Mk2 Proportional Controls
XTC (Mk2) PROPORTIONAL SWITCHBOX CONTROLS (5 Service Models) Machines with XTC Mk2 Proportional Controls (5 service models) will be supplied with the control unit shown below. The units for both electric and cable controlled rotor machines are identical except that for cable versions the rotor control switches B, C & D (shown below) will not provide a function as rotor operation will be controlled by a separate cable lever unit (refer to specific cable rotor control page for operation details of that unit). - Page 56 ARM OPERATION Tele or Midcut/VFR Models only...
- Page 57 HEAD FLOAT OPERATION Angle Float (Standard Feature) Lift Float (Optional Feature) ROTOR OPERATION – Electric Rotor Control Models only NOTE: The following section relates to machines with electric rotor control only – for cable rotor control models refer to the specific cable rotor control section. Rotor Start (Selection of Rotor Cutting Direction) Select rotor start for required direction (LED will light to indicate the active direction).
- Page 58 Switching Rotor Direction With the rotor running, changing the rotor cutting direction can only be achieved after first operating ‘rotor stop’, when stop has been selected the specific direction button can then be operated to command the rotor to switch to the desired direction. NOTE: This function has a built in time delay of approximately 8 seconds - this is a machine protection feature that allows the rotor sufficient time to de-accelerate before restarting in the opposite direction.
-
Page 59: Xtc Mk3 Proportional Controls
XTC (Mk3) PROPORTIONAL SWITCHBOX CONTROLS (7 Service) Machines with XTC Mk3 Proportional Controls (7 service) will be supplied with the control unit shown below. The units for both electric and cable controlled rotor machines are identical except that for cable versions the rotor control switches B, C & D (shown below) will not provide a function as rotor operation will be controlled by a separate cable lever unit (refer to specific cable rotor control page for operation details of that unit). - Page 60 ARMHEAD OPERATION...
- Page 61 SERVICE (Where applicable) Default Mode Swapped Mode (D1 Activated) On machines fitted with a controllable 6 service default operation of that function will be via the ◄ ► buttons on the control unit. If required, control of the function can be swapped to the left hand toggle switch by activating the D1 button on the control panel;...
- Page 62 HEAD FLOAT OPERATION Angle Float (Optional) Lift Float (Optional) ROTOR OPERATION – Electric Rotor Control Models only NOTE: The following section relates to machines with electric rotor control only – for cable rotor control models refer to the specific cable rotor control section in the manual. Rotor Start (Selection of Rotor Cutting Direction) Select rotor start for required direction (LED will light to indicate the active direction).
- Page 63 Switching Rotor Direction With the rotor running, changing the rotor cutting direction can only be achieved after first operating ‘rotor stop’, when stop has been selected the specific direction button can then be operated to command the rotor to switch to the desired direction. NOTE: This function has a built in time delay of approximately 8 seconds - this is a machine protection feature that allows the rotor sufficient time to de-accelerate before restarting in the opposite direction.
- Page 64 CONTROL UNIT CALIBRATION If for any reason the controls should stop responding the unit will need to be calibrated; the procedure for this is shown below. When all the led’s light up; release both buttons. With the unit powered off; simultaneously press and hold both rotor direction buttons before then powering on the unit.
-
Page 65: Breakaway
BREAKAWAY The machine is fitted with a hydraulic breakaway device which protects the structure of the machine should an unforeseen obstacle be encountered. The breakaway function does not relieve the operator of his responsibility to drive carefully. Always stay alert and avoid obvious hazards before contact occurs. Breakaway may occur momentarily during normal work should an extra thick or dense patch of vegetation be encountered. -
Page 66: Vfr Operating Caution
VFR ARMS – OPERATING CAUTION The advanced manoeuvrability that VFR armset s offer permits cutting att achments to be positioned extremely close to t he rear and working side of the tractor; this increases the opportunity of tractor and machine to suffer accidental damage from each other. Apply extr eme caution whilst operating the arms et cl ose to the tractor and keep at a safe distance. -
Page 67: Powered Slew
POWERED SLEW The slew feature allows a 100° arc of powered arm movement on the working side of the tractor – from the position at right angles to the tractor rearwards to 10° beyond the direct line astern - this feature is required to place the machine in the transport position but can also be used to sweep the arm ‘to and fro’... -
Page 68: Lift Float
LIFT FLOAT (Optional Extra for Ground Work) Work without lift float requires far more concentration and input from the operator to quickly react and re-adjust to the ground contours often resulting in patches of higher cut material where the head is cutting too high and ‘scalping’ of the ground where it is cutting too low –... -
Page 69: Easy Drive System (Eds)
EASY DRIVE SYSTEM (EDS) The Easy Drive System (EDS) is an optional extra on larger proportional machines with V3, V4 or Revolution digital controls – where fitted it provides ‘hands free’ cruise control operation with automatic head and lift float at greater working speed that increase both safety and efficiency. -
Page 70: Parallel Arm Geometry
PARALLEL ARM GEOMETRY Parallel Arm Geometry This feature enables the operator to adjust the 'in and out' reach of the machines arms, without the need to continuously adjust the 'lift' service in order to compensate for the change in head pivot height - as would be the case with conventional arm geometry. The performance of this feature is at its most accurate during the mid-range of the reach travel, with some deterioration in performance being experienced when the outer extremities of reach adjustment are approached. -
Page 71: Telescopic Dipper Arm
TELESCOPIC DIPPER – PA6500T /PA7700T / PA8000T PA6500T / PA7700T / PA8000T models are equipped with telescopic dipper arms giving them extended reach capabilities. In normal working conditions, the 'tele' will be pre-set and the machine operated using the controls in the normal manner - the tele function mode can be used as an alternative to 'reach' but a slower response to the commands must be expected. -
Page 72: Moving Into Transport Position
MOVING INTO TRANSPORT POSITION Select 'Rotor Off' and wait until the rotor has stopped turning. Ensure that the lift and angle float are switched off and, on tele models operate 'Tele In' and fully retract the telescopic arms. Select ‘Slew’ mode on the controls and operate ‘Slew In’... -
Page 73: Transport Position
TRANSPORT POSITION The machine is transported in line to the rear of the tractor with a minimum of 300mm clearance between the tension link and the rear cross member of the tractor cab. Transport Position with Flailhead Removed With the flailhead removed the arms are fully folded but the lift ram remains fully retracted. If the lift ram is extended the weight of the arms will cause the balance of the machine to go ‘over centre’... -
Page 74: Transport
TRANSPORTING THE MACHINE Transport Height There is no fixed dimension for the transport height as this will vary for differing models and applications i.e. tractor size, carrying height, and degree of arm fold the particular tractor cab will permit. For the majority of installations the transport 4.1m height will fall within the region of approximately 4.1m to 4.4m. -
Page 75: Cab Protection System (Option)
CAB PROTECTION SYSTEM (Option) The cab protection system safeguards the rear crossmember of the tractor cab from possible damage caused by the arms coming into contact with it during transportation or when the arms are being manoeuvred directly behind the tractor. The system consists of a ‘shoe stop’... -
Page 76: Slew & Lift Locks
SLEW & LIFT LOCKS Slew Lock All machines with slewing capability are fitted with a slew lock – depending on the particular machine this will either be in the form of a lock tap fitted to the slew ram or a slew locking pin that locates through the pillar into the top of the mainframe. -
Page 77: Rotor Operating Speed
OPERATING SPEEDS PTO Operating Speed The correct PTO speeds for operation of machines are as follows: Gear Machines: 500 - 540 rpm (Max) Piston Machines: 800 - 830 rpm (Max) Damage to the machine may occur if the maximum PTO speed is exceeded. Engaging Drive –... -
Page 78: Tractor Forward Speed
Tractor Forward Speed The material being cut will determine the tractor forward speed. Forward speed can be as fast as that which allows the flail head sufficient time to cut the vegetation both efficiently and neatly. If forward speed is too fast this be indicated by over frequent operation of the breakaway system, a fall off in tractor revs and a poor untidy finish to the work leaving ragged uncut tufts and poorly mulched... -
Page 79: Overhead Power Lines
OVERHEAD POWER LINES (OHPLs) It cannot be stressed enough the dangers involved when working in the vicinity of Overhead Power Lines (OHPLs). Some of our machines are capable of reach in excess of 8 metres (26’); they have the potential to well exceed, by possibly 3 metres (9’ 9”), the lowest legal minimum height of 5.2 metres from the ground for 11,000 and 33,000 volt power lines. - Page 80 Definitions of Exclusion Zones Risk Assessment Before starting to work near OHPLs you should always assess the risks. The following points should be observed; Know the risks of contacting OHPLs and the risk of flashover. Find out the maximum height and maximum vertical reach of your machine. Find out the location and route of all Power Lines within the work area.
-
Page 81: Hedgecutting Procedure
HEDGECUTTING PROCEDURE Cut the side and bottom of the field side first. This leaves the maximum thickness of hedge on the road side to prevent the possibility of any debris being thrown through the hedge into the path of oncoming vehicles. Cut the side and bottom of the road side. -
Page 82: Flail Types
FLAIL TYPES Grass Flails Designed specifically for general mowing activities – low power usage, ideal for cutting materials of low density. Universal Boot Flails Designed for general purpose work - suitable for mowing duties and the cutting of hedges with up to 2 years growth. Hedge Flails Double edged flail designed specifically for heavy duty hedge cutting - capable of cutting materials up to 75/80mm diameter. - Page 83 Hedge Flails Double edged flail designed specifically for heavy duty hedge cutting, capable of cutting materials up to 75/80mm diameter. Can be used for mowing work where they produce a good finish but will require considerably more power when used for this purpose. The flails are fitted with rubber stops for both shaft protection and noise reduction purposes.
-
Page 84: Maintenance & General Information
GENERAL MAINTENANCE General Lubrication The example illustration below indicates the general locations of lubrication points - all points should be greased on a daily basis and prior storage of the machine. New machines must be greased prior to first use. PTO Shaft Lubrication... - Page 85 PTO Gearbox Check gearbox oil level on new machines prior to first use, top up if required before using the machine. Replace gearbox oil after an initial 50 hours of use and thereafter at annual or 500 hour intervals; whichever occurs earliest. Gearbox Capacity (Machines ►11/13) 0.7 Litre SAE75W90 Fully Synthetic which meets the following minimum requirements;...
- Page 86 SERVICE SCHEDULE Every Day Grease machine fully prior to work (and prior to storage). NOTE: New machines must be greased before initial use. Check for broken or damaged flails. Check tightness of flail nuts and bolts. Visually check for oil leaks and damaged hoses. ...
- Page 87 HYDRAULIC SYSTEM Oil Supply Check the oil level in the reservoir daily. Oil Condition & Replacement No fixed time period can be quoted for oil changes as operating conditions can vary widely but a visually inspection of the oil will often indicate its current overall state. Signs of a reduction in its condition will be apparent by changes in colour and appearance when compared to new oil.
- Page 88 The breather pressurises the fluid trapped in the tank up to 0.3Bar; this is to reduce pump cavitation and reduces the air flow through the breather - extending the filter life. To avoid danger; unscrew the breather two revolutions and then wait until pressure in tank is equal to the atmosphere - the breather can then be removed safely.
- Page 89 Avoid twisting the hose. Adjust the hose line to ensure freedom from rubbing or trapping before tightening hose end connections. All Hydraulic Hoses (BSP) now fitted to McConnel Power Arm Hedge/Grass Cutters have ‘soft seal’ connections on both flail and ram circuit hoses.
- Page 90 TOP LINK DAMPER Machines are equipped with a rubber top link damper - this protects the tractor’s top link attachment point by absorbing the effects of sudden weight transfer when transporting the machine over rough terrain. The rubber damper should be compressed between the reaction plates to a width of approx 110mm (4¼”) and secured in place with locking nuts –...
- Page 91 ELECTRICAL CONNECTIONS – Proportional Models Proportional Control Valve - Loom Installation...
- Page 92 AUXILIARY BOX WIRING – Proportional Models...
- Page 93 PTO SHAFT MAINTENANCE PTO Shaft Lubrication The PTO shaft should be lubricated on a regular basis using lithium based grease – each end of the shaft has 2 greasing points; one for lubrication of the universal joint and one for lubricating the rotating fixing ring of the shaft shield –...
- Page 94 TORQUE SETTINGS FOR FASTENERS The chart below lists the correct tightening torque for fasteners. This chart should be referred to when tightening or replacing bolts in order to determine the grade of bolt and the correct torque unless specific torque values are assigned in the text of the manual. Recommended torque is quoted in Foot-Pounds and Newton-Metres within this manual.
-
Page 95: Troubleshooting Chart
Raise head or operate with head float Frequent Break-back Machine not set vertical Adjust top link Internal valve leakage Contact local dealer or McConnel Service Oil level low Fill oil to correct level Oil pump suction filter blocked Replace filter element... - Page 96 McConnel Limited, Temeside Works, Ludlow, Shropshire SY8 1JL. England. Telephone: 01584 873131. Facsimile: 01584 876463. www.mcconnel.com...
