Q-See QSPMIC User Manual

User Manual
Model QSPMIC
Indoor Powered Microphone

PRECAUTIONS:

CAUTION! Risk of electrical shock. To prevent electric
shock, do not expose the insides of this unit to rain or
moisture
Do not attempt to disassemble microphone. There
are no user serviceable parts inside. Service should be
performed by a qualified Q-See technician only.
Protect from elements. This microphone is designed
for indoor use only.
Avoid excessive moisture within microphone or
adapters. Do not use strong or abrasive detergents
when cleaning microphone case. Clean with dry cloth or
mild detergent, wiping gently.
Do not use beyond prescribed voltage range. Only
use included power supply. Ensure power input source
conforms to local voltage. Voltage outside of range could
cause damage or abnormal performance.

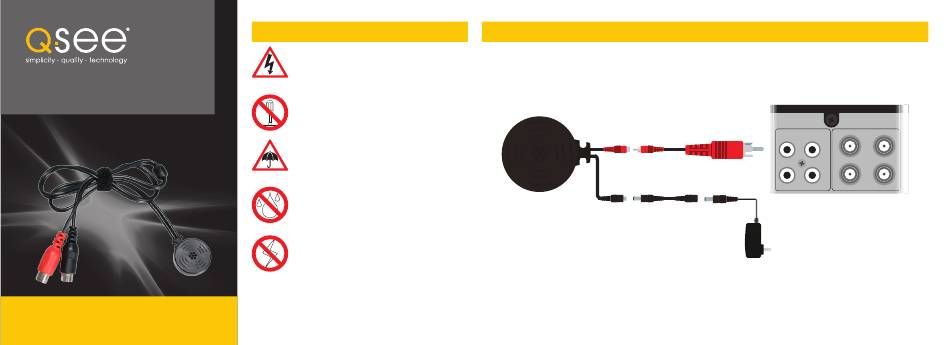

CONNECT TO A SECURITY DVR SYSTEM:

Connecting one or more microphones to your system.
Audio
DC Power
Plug RCA Audio connector into "Audio In" port
on rear panel of DVR. If the microphone is co-
located with a camera, then the microphone
should be connected to the Audio In port
that corresponds to the Video In port of the
accompanying camera.
AUDIO IN VIDEO IN
1 3 1
2 4 2
IMPORTANT! When connecting the 60' cable between
the microphone and the DVR, the "male" power end (black plug)
connects to the matching power cable on the microphone.
