Summary of Contents for IKL ELIPTIKO

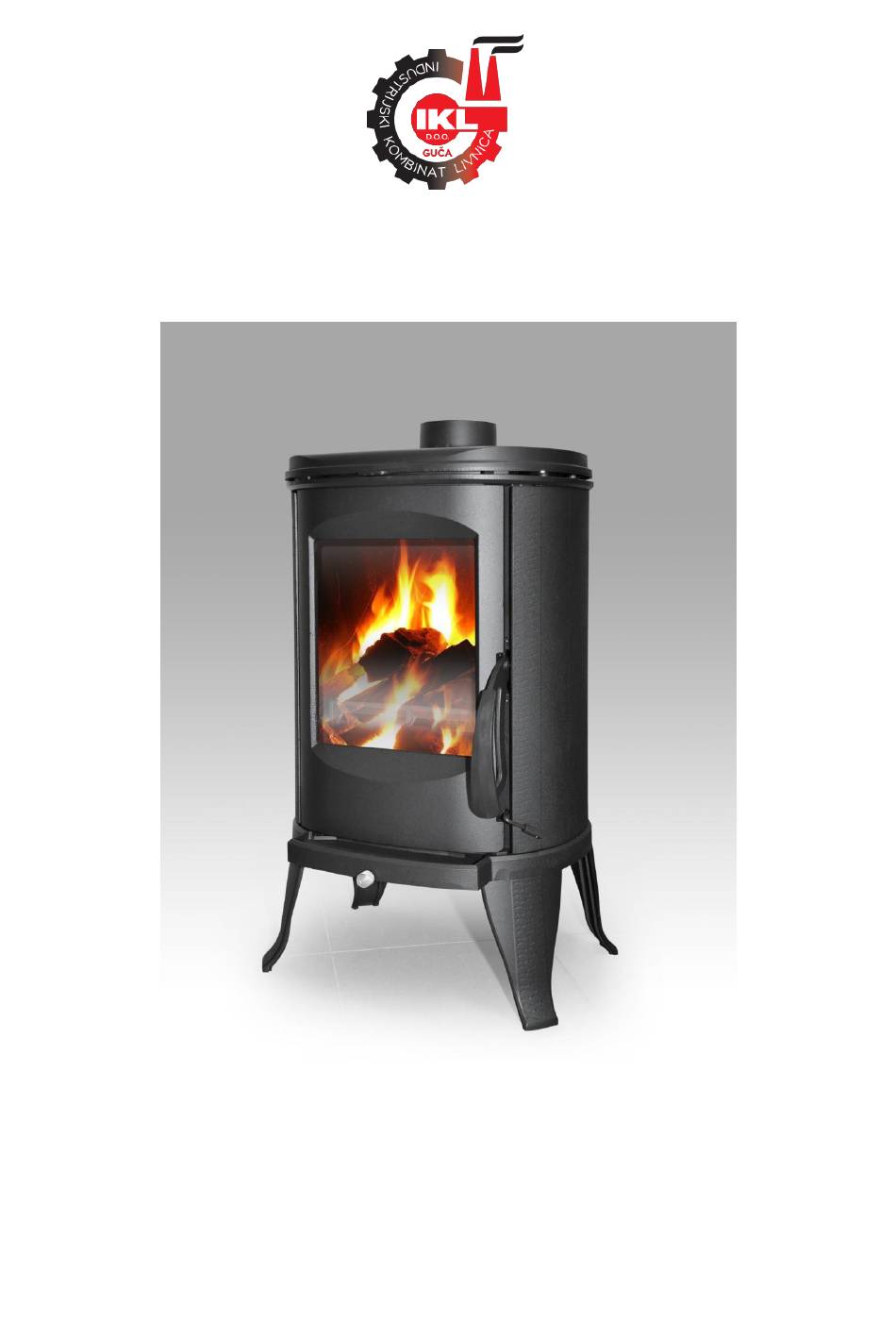

- Page 1 Model : ELIPTIKO USER MANUAL IKL-INDUSTRIJSKI KOMBINAT LIVNICA DOO GUČA Srbija,32230 Guča, Albanske spomenice bb Tel/centrala:+381(0)32 306 000, prodaja i servis;+381(0)32 854 305...
- Page 2 To our esteemed customer: By buying our furnace you have shown the trust that will not be betrayed. Your expectations will be met since properties and design our furnace adopts classify it to top furnaces in the category of similar products. Respectfully yours, GUČA CONTENT:...
-
Page 3: Introductory Remarks
1. INTRODUCTORY REMARKS Please read carefully and follow this instruction. Hereinafter you will find data on furnace itself and instructions for its installation and maintenance. Furnace efficiency and safe work depend on its correct installation, which must be carried out by a professional, in compliance with applicable standards and safety regulations. - Page 4 Cast parts of the furnace are coated with heat-resistant paint. During the first times of use smoke and odour appear as a paint stabilization product. It is therefore necessary to ventilate the room in which the furnace is placed. The furnace is intended for operation with closed door. The door may be opened for feeding fuel only.
-
Page 5: Technical Features
2. TECHNICAL FEATURES Definition: Solid fuel furnace tested in accordance with EN 13240 Design system Power in kW Efficiency in % 75,14 Smoke exhaust pipe dia in mm Air supply pipe dia in mm Maximum qty of fuel – wood in kg Mean CO content at 13% O expressed in % 0.0891... -
Page 6: Furnace Operation
3. FURNACE OPERATION 3.1. Description The purpose of this furnace is the indoor heating. The heat is emitted through the glass of the firebox door and cast furnace parts. Furnace components are made from the cast iron and the firebox door front is from the heat- resistant glass. - Page 7 4.1. Air circulation Inadequate circulation of air is the only reason for most complaints to the poor furnace performance! Draught needed for this type of furnace is 12 Pa. Lower value does not provide proper combustion which results in the buildup of carbon and an excessive amount of smoke.
- Page 8 It is strictly forbidden to connect some additional device using gas or easy evaporating fuels to the same chimney to which is your Eliptiko furnace already connected to. Do not reduce chimney cross-section by inserting too deep the furnace-chimney connecting pipe.
-
Page 9: Wear Parts
5.1 Drying Wet wood both burns poorly and makes firing harder, reduces furnace efficiency and damages the chimney. Furthermore, water vapor transports products of condensation, such as acetic acid, alcohol, methyl alcohol and tar, which facilitate formation of deposits harmful to your furnace and chimney. Freshly cut wood is bad for fuel. -
Page 10: Technical Description
8. PROCEEDING IN CASE OF IRREGULARITY 8.1. Functional difficulties Check whether the pipe correctly enters the chimney Check the chimney draught Check thermal insulation and design appropriateness of the chimney Check air regulator operation Check the air supply to the furnace ... -
Page 11: Installation
9.2. SECONDARY air control Secondary air control is performed by moving horizontally the regulator which is installed above the door. When the regulator is opened (handle pulled to the right), firewood burns better. The regulator should be opened as the furnace works, since in this case the glass remains clean. - closed - - key - - opened -... -
Page 12: Fire Safety
11. FIRE SAFETY Following precautions must be taken during the installation of the furnace: a) Minimum safe distance from objects and flammable or heat-sensitive pieces of furniture must be kept (furniture, wooden and plastic things, clothes, paper and other flammable materials). All set minimum safe distances must be honoured, lower values MUST NOT apply. - Page 13 In case of hermetically closing doors and windows (eg. houses built adhering to energy efficiency criteria), the ventilation and air circulation might not be guaranteed, endagering thus people's well-being and safety. It is necessary to ensure air input into the room where the furnace is. This can be done through the external air hole and the required air volume to be provided is up to 20m /h.
- Page 14 6. After this start-up period you can use your product according to the manual, avoiding sudden heating and overloading. 7. To set fire use small wood pieces and paper or some other means for ignition. Usage of fluids of any kind, such as alcohol, gasoline or oil is FORBIDDEN. Setting fire: Open the primary and secondary air controls as well as the valve for exhaust gas regulation and set the fire.
- Page 15 minutes) close the primary air regulator . Openings for air (primary and secondary) should be open together only until stabilisation of fireplace operation is achieved. Best combustion is achieved when most of combustion air goes through secondary air regulator. Never overload the furnace! The warranty does not cover any damage due to overheating.
- Page 16 ATTENTION: Removed ash must be disposed in fireproof container with a tight cover. The container must be placed on not-flammable ground. Use auxiliary fixtures to empty the ashtray. The auxiliary fixtures are also used for shaking glow and ashtray under the grate, as shown in picture below.
-
Page 17: Furnace Components
18. FURNACE COMPONENTS... - Page 18 Poz. Oznaka/Standard Kom. Poz. Oznaka/Standard Kom. Poz. Oznaka/Standard Kom. P.400 P.422 DIN 912, ISO 4762 P.401 P.424 DIN 933, ISO 4017 P.402 P.425 DIN 933, ISO 4017 P.403 P.426 DIN 933, ISO 4017 P.404 P.427 DIN 933, ISO 4017 P.405 P.428 DIN 933, ISO 4017 P.406...
-
Page 19: Warranty
19. RECOMMENDATIONS FOR ENVIRONMENTAL PROTECTION Product: The product is made from recoverable materials. Compliance with applicable codes on environmental safety is mandatory at product disposal. Use exclusively recommended types of fuel. It is prohibited to burn organic and inorganic waste (plastic, textil, oiled wood, painted drvo etc.) because of carcinogenic and other detrimental substances released during combustion.
