1
2
3
4
5

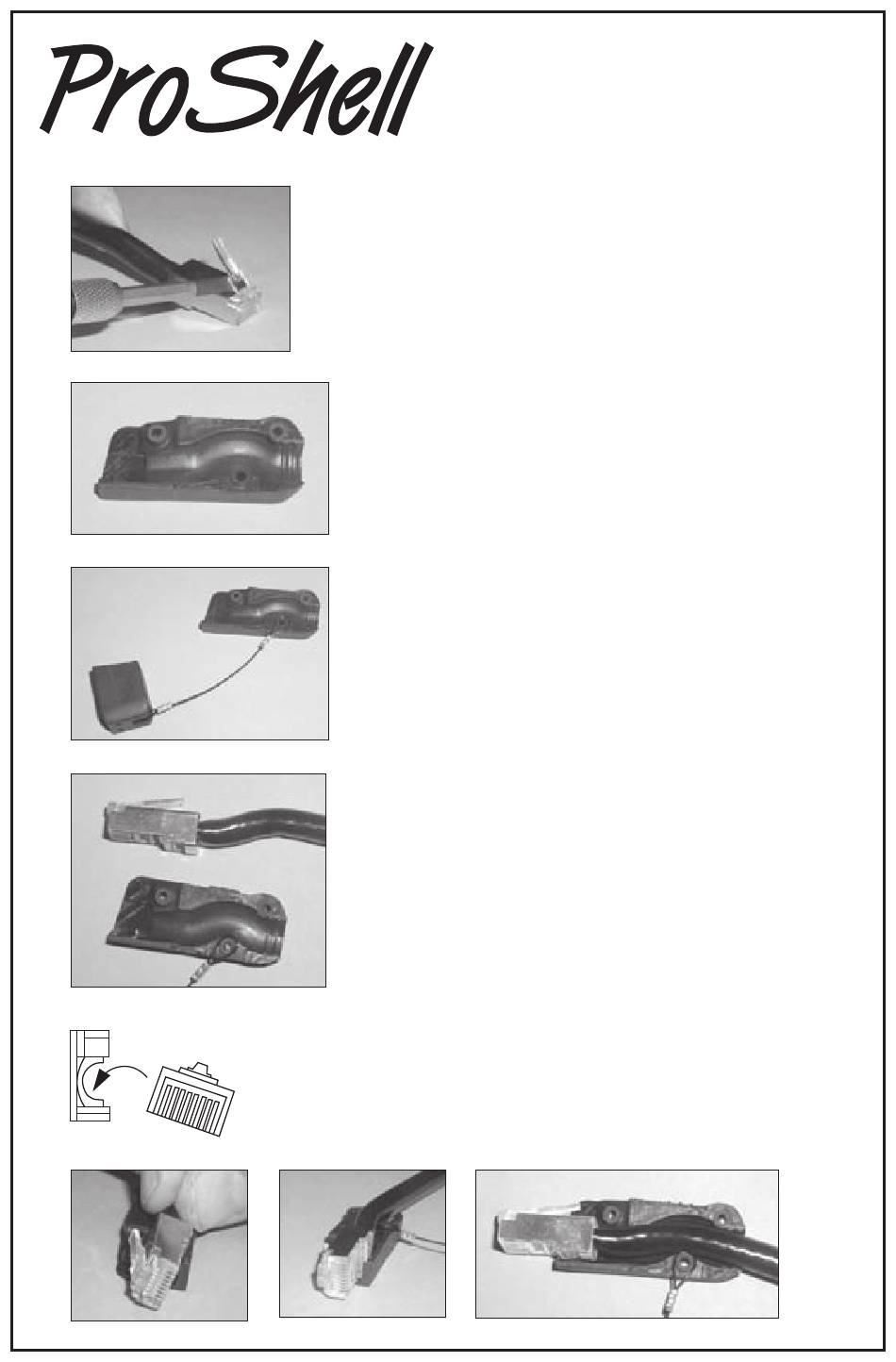

Using a small screwdriver, gently pry up the
RJ45 latch-tab 45-50 degrees. (Standard
procedure with RJ45s, as the tab may
compress during assembly.) Caution: Do not
lift too high and risk breaking the tab.
Lay non-logo side of ProShell housing (i.e.
side of housing without "ProShell" logo) on
hard surface with internal section facing up.
If installing optional protective cap, place
tether loop on tether post (bottom screw
standoff).
Prior to inserting cable into ProShell
housing, bend the cable to simulate the
shape of the internal strain relief mold of the
housing.
Insert RJ45 and cable into ProShell housing by
"rolling", bottom first, over the small hump until RJ45
"snaps" completely into position. A distinct snap
must be felt to ensure proper alignment.
ASSEMBLY INSTRUCTIONS
Advertisement
Table of Contents
Related Manuals for TMB ProShell
Summary of Contents for TMB ProShell
- Page 1 Insert RJ45 and cable into ProShell housing by “rolling”, bottom first, over the small hump until RJ45 “snaps” completely into position. A distinct snap...
- Page 2 Place the ProShell thumb lock tab on the top front screw standoff. “Roll” the logo side of the ProShell housing onto the housing/cable/ thumb lock assembly. Bottom section of housing must contact assembly first. When mating the two housing halves, a distinct “snap”...
