Educational Insights Laser Line Maker Manual

Caring for Laser Line Maker
Troubleshooting
• Laser Line Maker projects a level line on the surface to which it is
attached. Any reflection of the line on another surface, such as an
adjacent wall, is not level.
• If the laser light becomes dim, change the batteries. To prolong battery
life and avoid exposure to laser radiation, always turn Laser Line Maker
off when not in use.
How to Clean Laser Line Maker
Turn off the laser function before cleaning. Clean Laser Line Maker with a
slightly damp or dry cloth. Do not immerse the unit in water. Do not spray
liquid of any kind on the unit. Avoid dust and water which could obstruct
the lens.
Battery Installation Instructions
1. Carefully open the battery
compartment door located on
the bottom of the unit.
2. Install two (2) AAA batteries in
the orientation shown on the
battery holder.
• Batteries must be inserted with the correct polarity.
• Do not mix old and new batteries.
• Non-rechargeable batteries are not to be recharged.
• Do not use rechargeable batteries.
• Do not mix alkaline, standard (carbon-zinc), or rechargeable
(nickel-cadmium) batteries.
• Only batteries of the same or equivalent type are to be used.
• Remove exhausted batteries from the unit.
• The supply terminals are not to be short-circuited.
• To prevent corrosion and possible damage to the product, it
is recommended to remove the batteries from the unit if it
will not be used for more than two weeks.
3. Close the battery compartment door.
© 2007 Educational Insights, Inc., Rancho Dominguez, CA (USA).
All rights reserved. Learning Resources, Ltd., King's Lynn, Norfolk
(UK). Made in China. Please retain this information.
Customer Service: (800) 995-4436 M–F
I
WEBSITE: www.Educational nsights.com
Write in a straight line...every time!

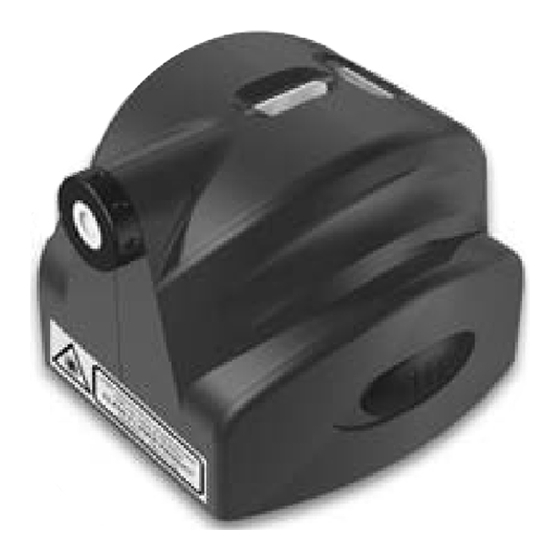

Laser Line Maker projects a highly visible laser line ideal for perfectly aligned
whiteboard writing. This guide will show you how to make the most of this
high-performance precision tool.
Features
Laser Lens
A powerful straight-line
laser is emitted through
the lens.
Magnetic Base
Attaches to magnetic
whiteboards for hands-
free usage.
On/Off
Slide the ON/OFF
switch to turn the
laser on or off.
Safety Release
Laser function automatically
deactivates when unit is
removed from a surface.
LASER RADIATION
Do not stare into beam.
1mW max output at 625-645nm
CLASS 2
LASER PRODUCT
EN60825-1: 1994+A1+A2
Dual Bubble Levels
Two built-in bubble levels provide
horizontal and vertical accuracy.
EI-1048
