Controller Configuration
Note: This page may require authentication. See "Username and Password" above, for
more information.

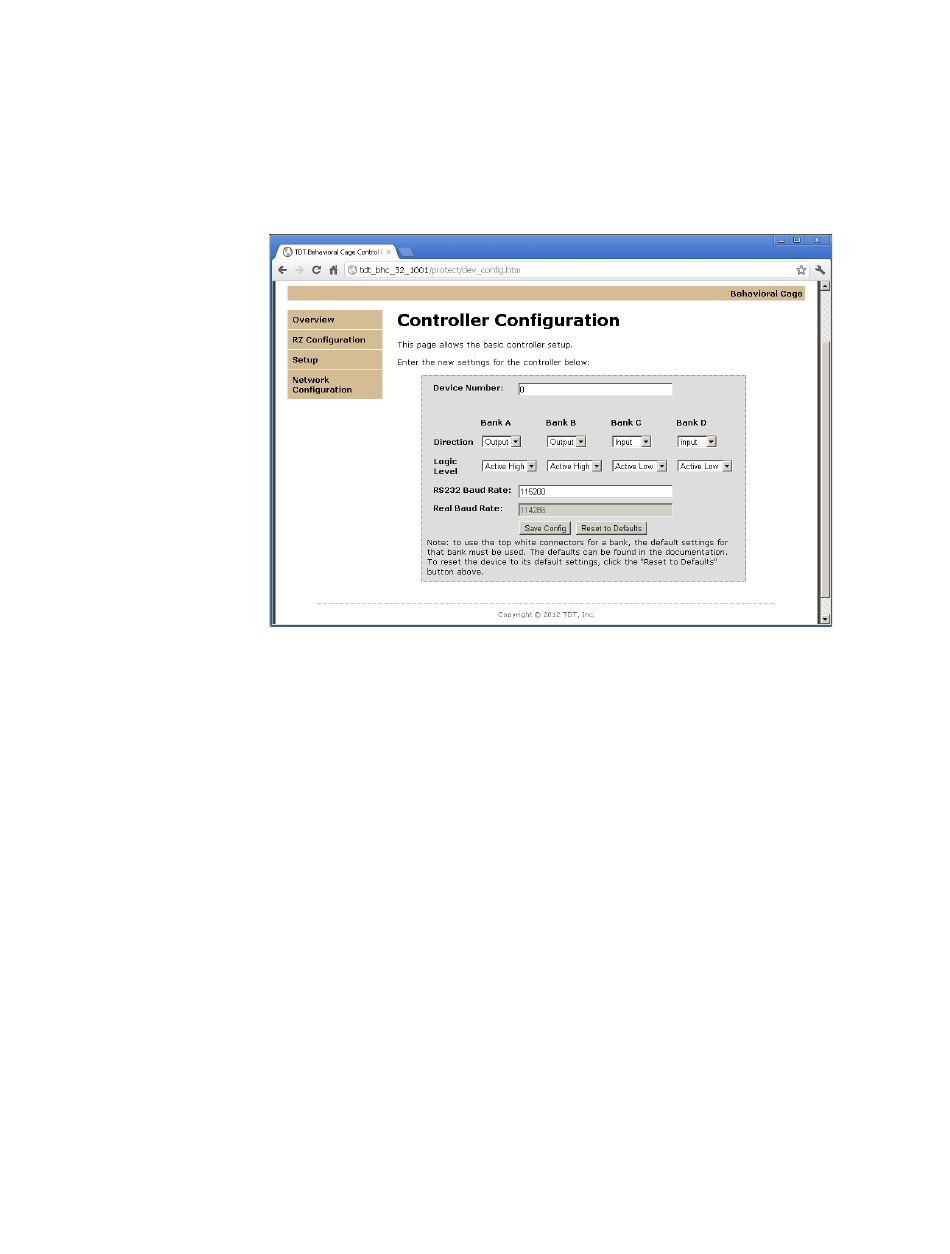

The Controller Configuration Page is used to configure properties of the BH32
hardware, including the Device Number, RS232 Baud Rate, and the behavior of
individual banks when accessed via the DB25 connectors on the back panel.
Device Number
The Device Number is used to identify the BH32 among a network of BH32s. For
single BH32 use, this value should be set to 1.
Direction
Each Bank can be configured as either Input or Output.
Logic Level
Each Bank can be configured to Active High (1 = True) or Active Low (0 =
True).
Baud Rate
The desired rate can be entered in the RS232 Baud Rate box. The actual realizable
rate will be displayed in the Real Baud Rate box after the configuration has been
updated.
Saving or Resetting the Configuration
Changes to the configuration are not implemented until they are saved and can be
reset to the default settings at any time.
