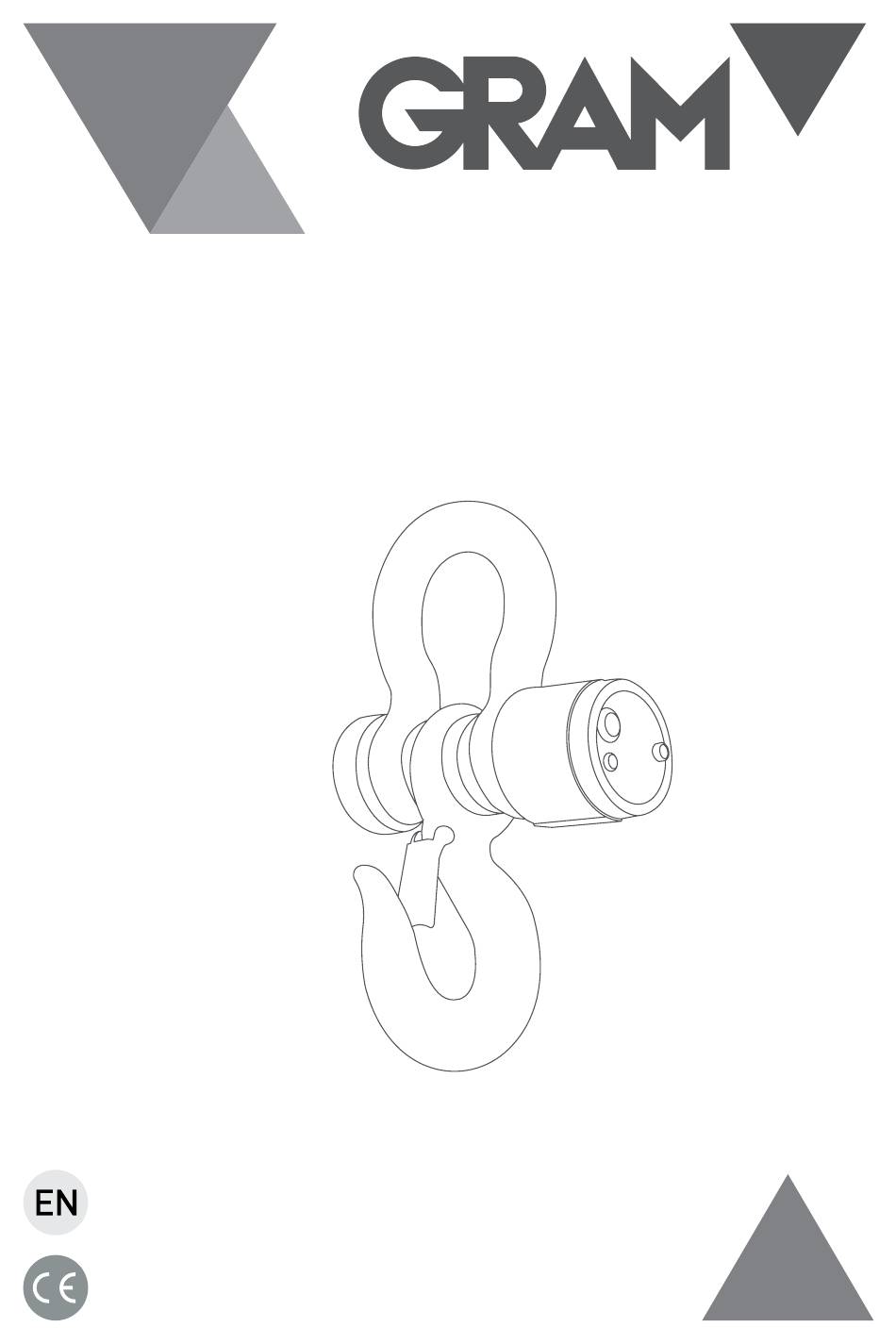

- Page 1 SERIES 3T / 5T / 10T / 15T / 20T OPERATION MANUAL...
-
Page 2: Table Of Contents
INDEX English Main specification Analog Display Ambient Environment Front and back view of the indicator Keys function Operation Turning on Zero function Tare Manual accumulation Check accumulation Clear accumulation Parameters setup Calibration Error indication Rechargeable lithium battery Maintenance Guarantee... -
Page 3: Main Specification
ENGLISH MAIN SPECIFICATION Analog Accuracy: n=3000 Input Signal: 1.5~3mv/V Converting Speed: 10 times/second Display Display: 0~999999 5 digits LCD/LED, 7 indicators Division Value: 1/2/5/10/20/50 (optional) Ambient Environment Distance between scale and indicator: 150m Power Supply: DC: 3.7V Ambient Temperature: 0~40 ºC Storing Temperature: -25 ºC ~55 ºC Ambient Moisture: ≤... -
Page 4: Front And Back View Of The Indicator
FRONT AND BACK VIEW OF THE INDICATOR KEYS FUNCTION In weighing status hold the key for more than 5s, it enters setup mode (All the setting in this mode should be recorded with the calibration header on; or the data will lose). Tare function in weighing status. -
Page 5: Operation
OPERATION Turning on Turn on the power, the indicator performs self-checking and go into weighing mode. Zero function Press for zero return, indicator returns to zero within the zero range 2%FS. Please make sure the stabilization light is on when zero operation. If obstruction occurs by more than 1 wireless indicator working at same time, you can open both indicator and scale, change the number of transcoder inside with same number and restart. -
Page 6: Check Accumulation
Check accumulation At weighing mode, press , it will display the times and the value of current accumulation, after then back to normal weighing mode automatically. Clear accumulation , it displays “ADD---” and back to weighing At weighing mode, press mode which means clear the current accumulation. - Page 7 4. P4 Not available for this model 5. P5 Not available for this model 6. P6 Power saving mode X=1: No power saving X=2: Power saving available X=3: None 7. P7 Zero-tracking Scope X=1: 0.5e X=2: 1.0e X=3: 1.5e (default) X=4: 2.0e X=5:...
-
Page 8: Calibration
10. P10 x Digital filtering intensity X=1: Fast (default) X=2: Middle X=3: Slow 11. P11 x Stabile time X=1: Fast (default) X=2: Middle X=3: Slow 12. P12 x Stabile extent X=1: X=2: Middle X=3: High (default) 13. P13 x Select division value X is division value Press to select division value, then press... -
Page 9: Error Indication
Input F.S.:Press to choose the digit bit; press to select [FULL ] Setup F.S. the digit; press to confirm the input F.S. e.g.: 30000 Zero point calibration: [noLoAd] Assure there’s no loading Press when the stable light is on Load standard weights. Input weight of standard weights loaded: Press to choose... -
Page 10: Rechargeable Lithium Battery
Err 11 Load-cell problem Err 13 Resolving capability is too high Err 14 Damaged inside indicator Loch Overload and locked RECHARGEABLE LITHIUM BATTERY Battery inside of scale is Lithium battery. Please charge it after running down for 7 hours the first three times. Please charge the battery for timing if not use it often. - Page 11 5. Liquid and conducting particle should not be poured into the indicator, otherwise the electronic components will be damaged and electric shock is likely to happen. 6. You should cut off power supply of indicator and relevant device before you pull –in and out the connecting line of indicator and external device. •...
-
Page 12: Guarantee
This balance is guaranteed for one year from the delivery date. The guarantee covers any fabrication defect of the material. During this period, GRAM PRECISION, SL, covers the manpower and the spare parts necessary to repair the scale. This guarantee does not cover the failures caused by an inappropriate use or overload. - Page 13 NOTES...
- Page 14 NOTES...
- Page 15 NOTES...
