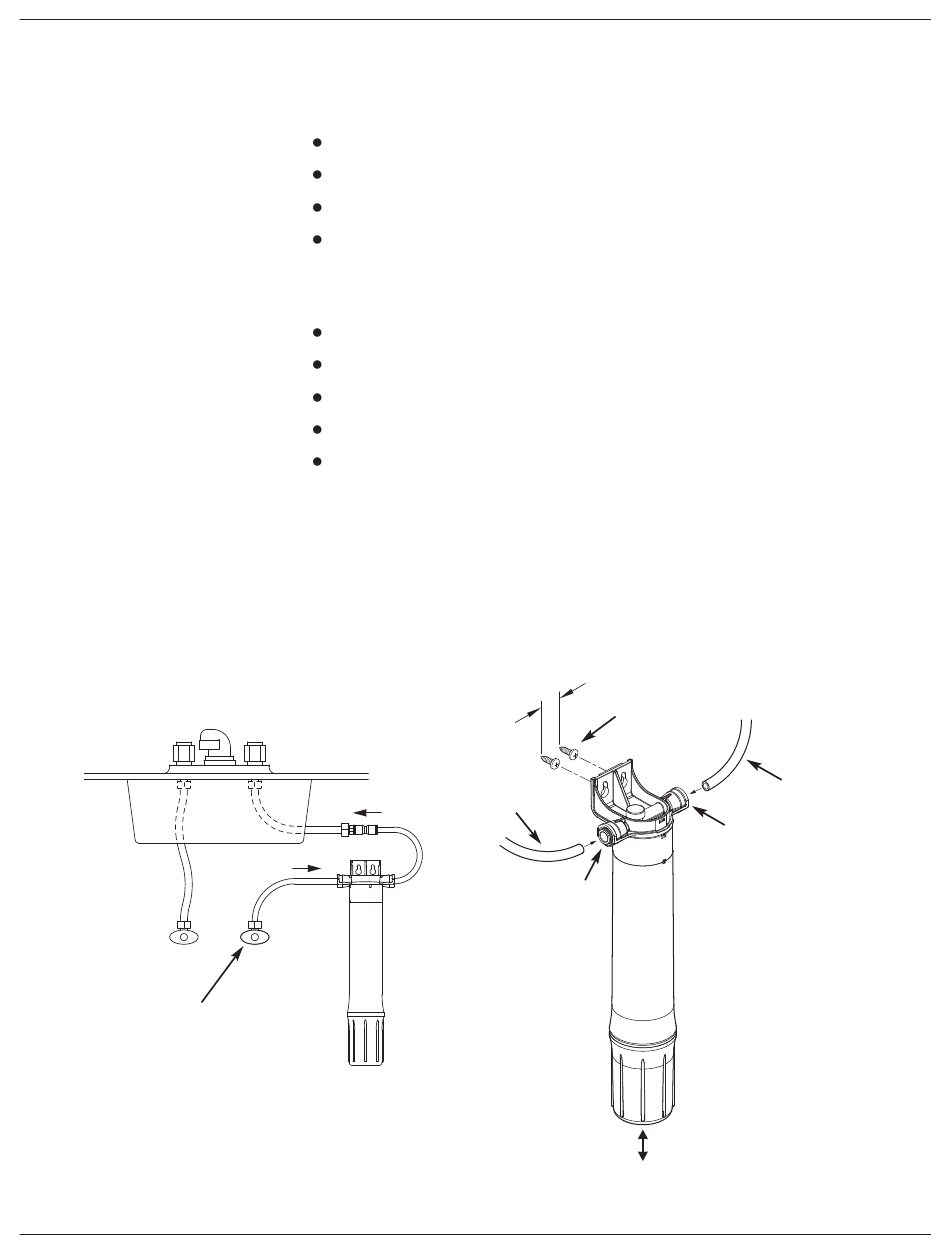

Typical Undersink Installation

Locate the water filter housing on the cold water supply pipe, under the kitchen and/or bathroom sink, to
filter the cold water. Refer to the following drawing.
filtered water
faucet
SINK
HOT COLD
shutoff valve
Parts & Tools
Included:
Filter head, bracket & mounting screws
Filter cartridge
Tubing
Faucet adaptor
Not Included:
Slotted and Phillips screwdrivers
Pliers and adjustable jaw wrench
Tubing cutter
Electric drill
Teflon tape
3/8" tubing
water supply
INLET OUTLET
NOTE: Be sure to allow a minimum space of 1-1/2" under the
system for removing the filter cartridge to change it.
1"
mounting
1"
screws (2)
from cold
INLET
yellow collar on
push-in fitting
4
3/8" tubing
to faucet
OUTLET
blue collar on
push-in fitting
FIG. 2
