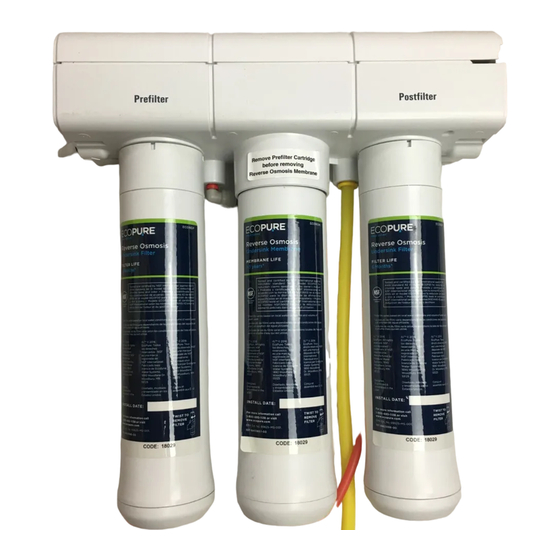

Model ECOP30
How to install, operate
and maintain your
Reverse Osmosis
Drinking Water System
PRODUCT AND WARRANTY
REGISTRATION
Register your product
online to validate and
extend your warranty.
See warranty page for
details.
www.ecopure.com
If you have any questions or concerns when
installing, operating or maintaining your reverse
osmosis system, call our toll free number:
1-800-693-1138
www.ecopure.com
or visit
When you call, please be prepared to provide
the model, date code and serial number of your
product, found on the rating decal, located
inside the cover.
System tested and certified by NSF International
against NSF/ANSI Standards 42 & 58. See
performance data on pages 27 & 28 for details.
Manufactured and warranted by
Ecodyne Water Systems
1890 Woodlane Drive
Woodbury, MN 55125
7314971 (Rev. N 1/2/18)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ECOP30 and is the answer not in the manual?

Questions and answers

d.lehto
May 1, 2025

when should the water in storage tank be changed?

0

Related Manuals for ECOPURE ECOP30

Summary of Contents for ECOPURE ECOP30

  • Page 1 Model ECOP30 How to install, operate and maintain your Reverse Osmosis Drinking Water System PRODUCT AND WARRANTY REGISTRATION Register your product online to validate and extend your warranty. See warranty page for details. www.ecopure.com If you have any questions or concerns when...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS Page Specifications & Dimensions ..............3 Unpack and Check Shipment .

  • Page 3: Specifications & Dimensions

    Specifications & Dimensions Supply water pressure limits ..........40-100 psi (280-689 kPa) Supply water temperature limits .

  • Page 4: Unpack And Check Shipment

    If your new ECOP30 has missing or damaged items, please call toll free 1-800-693-1138 for free and swift replacement of missing or damaged items.

  • Page 5: Plan Your Installation

    FIG. 3 follow the instructions provided with any tools listed here. Questions? Call Toll Free 1-800-693-1138 www.ecopure.com or visit When you call, please be prepared to provide the model, date code and serial number, found on the rating decal, located inside the cover.
  • Page 6 Plan Your Installation All install parts included in package. Drain Adapter for Reverse Osmosis Waste Water Cold Water Supply Reverse COLD Osmosis Assembly Storage Tank Sink Drain P-Trap Shutoff Valve Typical Under Sink Installation FIG. 4 Outside Faucet Outside Faucet (Hard Water) (Hard Water) To Faucet...

  • Page 7: Overview & Site Preparation

    10 grains per gallon, with no iron. Questions? Call Toll Free 1-800-693-1138 www.ecopure.com or visit When you call, please be prepared to provide the model, date code and serial number,...

  • Page 8: Installation Instructions

    Step A - Install Supply Water Fitting Check and comply with local plumbing codes as you plan, then install a cold feed (supply) water fitting. Refer to the Specifications page for supply water requirements. The fit- ting must provide a leak-tight connection to the RO 1/4" tub- ing.

  • Page 9: Step B - Install Reverse Osmosis Drain

    Step B - Install RO Drain Under Sink Under the Sink Installation INTRODUCTION A suitable drain point is needed for the drain water from Double Basin Sink Single Basin the Reverse Osmosis filter. You have two options: Sink • Install the Drain Adaptor included with your unit As shown in Figures 8-10, the drain adaptor is installed onto your sink’s drain pipe above the P-trap.
  • Page 10 Step B - Install RO Drain In Remote Location Outside Faucet (Hard Water) Outside Faucet BLUE Tubing (Hard Water) to Reverse Osmosis Faucet Soft, Cold Water Soft, Hot GREEN Tubing Soft water Water to Reverse to Reverse Osmosis System Shutoff Osmosis Valve System...

  • Page 11: Step C - Install Reverse Osmosis Filter Assembly

    Step C: Install RO Filter Assembly INSTALL REVERSE OSMOSIS FILTER Hanger ASSEMBLY Washer (2) The Reverse Osmosis Filter Assembly is mounted on Screw (2) hanger washers. See Fig 13. The hanger washers allow you to lift the filter assembly from the washers without any hardware removal.
  • Page 12 Questions? Call Toll Free 1-800-693-1138 www.ecopure.com or visit When you call, please be prepared to provide the model, date code and serial number, found on the rating decal, located inside the cover.

  • Page 13: Step E - Install Reverse Osmosis Faucet

    Step E - Install RO Faucet (cont.) INSTALL REVERSE OSMOSIS FAUCET 1. Locate and organize your RO faucet install parts. Refer to Fig. 16. 2. Mount faucet base to sink hole until the faucet base is flat against the sink surface. The rubber gasket should be between the sink surface and the faucet base.

  • Page 14: Step F - Connect Tubes

    Step F - Connect Tubes hOW TO CUT AND CONNECT ThE TUBES Push-in Fitting Your Reverse Osmosis system includes push-in fittings Foam Plug for quick tubing connection. Review the following instructions before connecting the tubes in the next step. Failure to follow these instructions may lead to future leaks.
  • Page 15 Step F - Connect Tubes (cont.) NOTE: Tubing lengths should allow for the removal of the assembly from the hanger washers for servicing. If tubing lengths are shortened for neater appearance, it may be necessary to keep the assembly on the hanger washers for service.

  • Page 16: Step G - Sanitize, Pressure Test & Purge System

    Step G - Sanitize, Test and Purge System SANITIzE ThE SYSTEM Sanitizing is recommended immediately after installa- tion of the Reverse Osmosis system. It’s also recom- mended after servicing inner parts. It is important that the person installing or servicing the system have clean hands while handling inner parts of the system.
  • Page 17 Step G - Sanitize, Test and Purge System (cont.) PRESSURE TEST ThE SYSTEM Reverse Osmosis NOTE: Complete the sanitizing procedures on the Kitchen Faucet preceding page before pressure testing. Faucet To pressure test the system, complete the following steps. 1. Open the water supply valve to the Reverse Osmosis system.

  • Page 18: How Your Reverse Osmosis System Works

    Clean, high quality drinking water is available at the faucet. Questions? Call Toll Free 1-800-693-1138 www.ecopure.com or visit When you call, please be prepared to provide the model, date code and serial number, found on the rating decal, located inside the cover.
  • Page 19 How Your RO Water System Works PRODUCT WATER FAUCET Air Gap PRODUCT WATER Gravity Drain DRAIN WATER Drain Flow AUTOMATIC Check Control SHUTOFF Valve WATER GREEN BLUE PRODUCT PREFILTER POSTFILTER WATER STORAGE MEMBRANE YELLOW FIG. 27 Reverse Osmosis Water Flow Schematic Water Flow Description 1.

  • Page 20: Maintenance

    Maintenance PREFILTER / POSTFILTER MAINTENANCE NOTE: It is recommended to replace the battery, Cover prefilter and postfilter cartridges at least every 6 months of product water use. Replace more often if they begin to plug with sediment. The prefilter and postfilter are replaceable sediment cartridges with activated carbon in their composition.
  • Page 21 Maintenance FLOW CONTROL Flow Control The flow control is required for proper operation of the Insert Reverse Osmosis system. See Fig. 29. The flow control, located inside the push-in elbow fitting on the drain port of Push-in Elbow Fitting the system housing, keeps water flowing through the mem- brane at the required rate.

  • Page 22: Troubleshooting

    Troubleshooting Problem: Chlorine taste and/or odor in the RO product water. Cause: The level of chlorine in your water supply Correction: If the water supply contains more than 2.0 ppm of chlorine, addition- exceeds maximum limits, and has al filtering of the water supply to the Reverse Osmosis is needed. destroyed the Reverse Osmosis mem- Contact your local water supplier.
  • Page 23 If removing the drain line, leave in place the elbow fitting that it con- nects to. See page 21. Need help troubleshooting? Call Toll Free 1-800-693-1138 www.ecopure.com or visit When you call, please be prepared to provide the model, date code and serial number,...

  • Page 24: Exploded View & Parts List

    Exploded View 1/4” red tubing...
  • Page 25 Parts List Part No. Description Part No. Description Mounting Hardware Kit ECOROF Pre & Post Filter Cartridge Ù – 7333129 (includes 2 ea. of Key Nos. 1 & 2) ECOROM RO Membrane Cartridge Ù Screw (2 req’d) á 7205326 Storage Tank Hanger Washer (2 req’d) á...

  • Page 26: Warranty

    ● The owner replaces both the pre and post filters every six (6) months and registers their purchase of the EcoPure ECOROF filter cartridge set on www.ecopure.com. Purchase of no more than two (2) ECOROF filter sets in a 12 month period may be applied toward compliance with this warranty.

  • Page 27: Performance Data

    Performance Data Reverse Osmosis Filter System Model ECOP30 IMPORTANT NOTICE: Read this performance data and compare the capabilities of this unit with your actual water treatment needs. It is recommended that, before purchasing a water treatment unit, you have your water supply tested to determine your actual water treatment needs.
  • Page 28 3.0 ±10% Zinc 1.5 ±10% 0.25 Daily Production Rate Model ECOP30: 18.46 gal./day (69.87 liters/day) Efficiency Rating Model ECOP30: 12.22% Recovery Rating Model ECOP30: 22.95% Milligrams per liter, which is equivalent to parts per million (PPM). Tested by NSF International according to NSF/ANSI Standard 58.
  • Page 29 Buyer/Renter __________________________________________________________ Date _________________ Seller ________________________________________________________________ Date _________________ Seller’s Address _______________________________________________________________________________ Seller’s Phone No. _____________________________________________________________________________ Model ECOP30 has been tested and certified by NSF Product: EcoPure Model ECOP30 International against NSF/ANSI Standard 42 for the Ecodyne Water Systems reduction of chlorine, taste and odor, Standard 58 for...
