Summary of Contents for AEMC Simple Logger L620

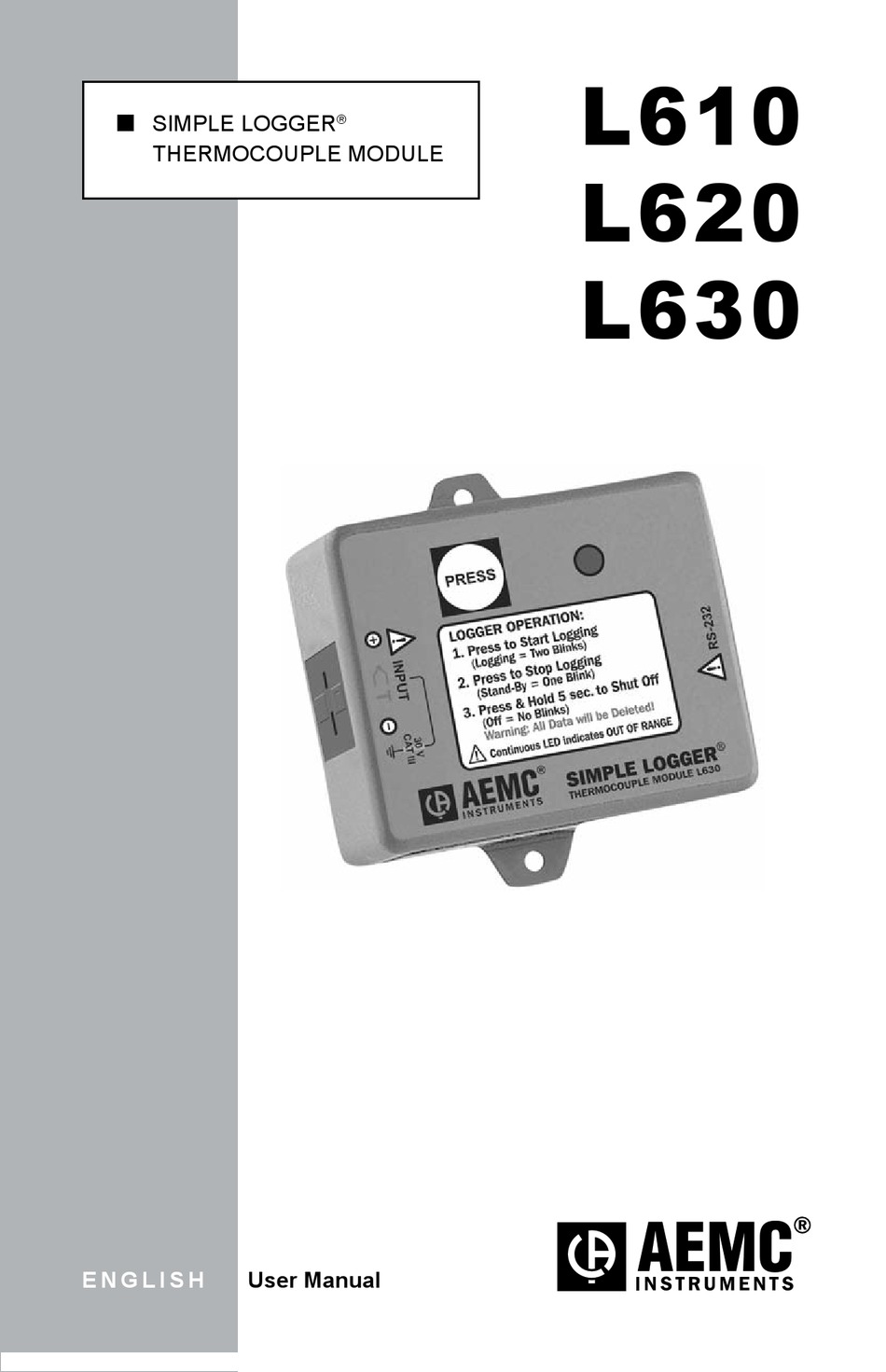

- Page 1 L610 SIMPLE LOGGER ® THERMOCOUPLE MODULE L620 L630 E N G L I S H User Manual...
- Page 2 Owner’s Record The serial number for the Models L610, L620 and L630 is located on the side of the case. Please record this number and purchase date for your records. SIMPLE LOGGER THERMOCOUPLE MODULE MODEL #: _______________________________________________ SERIAL #: _______________________________________________ PURCHASE DATE: ________________________________________ DISTRIBUTOR: ___________________________________________...
-
Page 3: Table Of Contents
Table of Contents 1. INTRODUCTION ................2 1.1 International Electrical Symbols ..........2 1.2 Receiving Your Shipment ............3 1.3 Ordering Information ..............3 1.3.1 Accessories and Replacement Parts ......3 2. PRODUCT FEATURES ..............4 2.1 Indicators and Buttons ..............4 2.2 Inputs and Outputs ..............5 2.3 Mounting ...................5 3. SPECIFICATIONS................6 3.1 Electrical Specifications ............6 3.2 Mechanical Specifications ............6 3.3 Environmental Specifications . -
Page 4: Introduction
CHAPTER 1 INTRODUCTION Warning These safety warnings are provided to ensure the safety of per- sonnel and proper operation of the instrument. • Read the instruction manual completely and follow all safety information before operating this instrument. • Use caution on any circuit: Potentially high voltages and cur- rents may be present and may pose a shock hazard. • Read the specifications section prior to using the data logger. Never exceed the maximum voltage ratings given. • Safety is the responsibility of the operator. • For maintenance, use only original replacement parts. • NEVER open the back of the instrument while connected to any circuit or input. • ALWAYS connect the leads to the logger before inserting the leads to the test voltage • ALWAYS inspect the instrument and leads prior to use. Replace any defective parts immediately. -
Page 5: Receiving Your Shipment
All models are supplied with software (CD-ROM), 6 ft DB-9 RS-232 serial cable, 9V Alkaline battery and user manual. 1.3.1 Accessories and Replacement Parts One 6 ft RS-232 cable with DB9F ........Cat. #2114.27 Order Accessories and Replacement Parts Directly Online Check our Storefront at www.aemc.com for availability Thermocouple Simple Logger Models L610 / L620 / L630 ®... -
Page 6: Product Features
CHAPTER 2 PRODUCT FEATURES PRESS LOGGER OPERATION: 1. Press to Start Logging (Logging = Two Blinks) 2. Press to Stop Logging (Stand-By = One Blink) 3. Press & Hold 5 sec. to Shut Off (Off = No Blinks) Warning: All Data will be Deleted! Continuous LED indicates OUT OF RANGE ®... -
Page 7: Inputs And Outputs
Inputs and Outputs The left side of the Simple Logger incorporates a color-coded miniature ® T.C. connector that is compatible with the thermocouple for which your logger was designed. The right side of the logger has a female 9-pin “D” shell serial connector used for data transmission from the logger to your computer. Mounting Your Simple Logger is equipped with clearance holes in the base plate ® tabs for mounting. For less permanent mounting, the Velcro pads (sup- ® plied loose) can be attached to the logger and the surface to which the logger will be mounted. Thermocouple Simple Logger Models L610 / L620 / L630 ®... -
Page 8: Specifications
CHAPTER 3 SPECIFICATIONS Electrical Specifications Number of Channels: 1 Measurement Range: L610: 32° to 1380°F (0° to 750°C) L620: -325° to 2280°F (-200° to 1250°C) L630: -325° to 660°F (-200° to 350°C) Input: L610: J Thermocouple L620: K Thermocouple L630: T Thermocouple Input Connection: M iniature color-coded thermocouple jacks Black - J, Yellow -K, Blue -T Resolution: 12 Bit (better than 0.5°C) Sample Rate: 4096/hr max; decreases by 50% each time memory is full Data Storage: 16,384 readings Data Storage Technique: TXR™ Time Extension Recording™ Power: 9V Alkaline NEDA 1604, 6LF22, 6LR61 Battery Life Recording: Up to 1 year of recording @ 77°F (25°C) Output: RS-232 via DB9 connector (4800 Baud) Reference condition: 23°C ±... -
Page 9: Environmental Specifications
Environmental Specifications Operating Temperature: -4 to 158°F (-20 to 70°C) Storage Temperature: -4 to 176°F (-20 to 80°C) Relative Humidity: 5 to 95% non-condensing Temperature Influence: 0.1%/°C over full temperature range Safety Specifications Working Voltage: EN 61010, 30V, Cat III *All specifications are subject to change without notice Thermocouple Simple Logger Models L610 / L620 / L630 ®... -
Page 10: Operation
CHAPTER 4 OPERATION Software Installation Minimum Computer Requirements 7, 8, 8.1, 10 • Windows ® • Processor - 486 or higher • 8MB of RAM • 8MB of hard disk space for application, 400K for each stored file • One 9-pin serial port; one parallel port for printer support • CD-ROM drive 1. Insert the Simple Logger CD into your CD-ROM drive. ® If auto-run is enabled, the Setup program will start automatically. If auto-run is not enabled, select Run from the Start menu and type in D:\SETUP (if your CD-ROM drive is drive D. If this is not the case, substitute the appropriate drive letter). -
Page 11: Recording Data
® Acrobat Reader. Acrobat Reader is most recent version of Adobe ® required for viewing PDF documents supplied on the CD-ROM. • *Check for Available Software Updates - Opens the AEMC Software update web site, where updated software versions are available for downloading, if necessary. • View User Guide and Manuals - Opens Windows Explorer for ® viewing of documentation files. 3. To install the software, select Simple Logger Software Setup in the top section of the Set-up window, then select Simple Logger, Version 6.xx in the Options section. -
Page 12: Using The Software
Using the Software Launch the software and connect the RS-232 cable from your computer to the logger. NOTE: The first time the program is launched you will need to select a language. Select Port from the menu bar and select the Com port (COM 1, 2 3 or 4) you will be using (see your computer manual). Once the software automati- cally detects the baud rate, the logger will communicate with the computer. (ID number of the logger and number of points recorded displayed). Select Function from the menu bar to select °F or °C. Thermocouple Simple Logger Models L610 / L620 / L630 ®... -
Page 13: Maintenance
CHAPTER 5 MAINTENANCE Battery Installation Under normal conditions, the battery will last up to a year of continuous recording unless the logger is restarted very frequently. In the OFF mode, the logger puts almost no load on the battery. Use the OFF mode when the logger is not in use. Replace the battery once a year in normal use. If the logger will be used at temperatures below 32°F (0°C) or is frequently turned on and off, replace the battery every six to nine months. 1. Make sure your logger is turned off (no blinking light) and all inputs are disconnected. 2. Turn the logger upside down. Remove the four Phillips head screws from the base plate, then take off the base plate. 3. Locate the two-wire (red/black) battery connector and attach the 9V battery to it. Make sure that you observe polarity by lining up the battery posts to the proper terminals on the connector. 4. Once the connector is plugged onto the battery, insert the battery into the holding clip on the circuit board. 5. If the unit is not in record mode after installing the new battery, dis- connect it and press the button twice then reinstall the battery. 6. Reattach the base plate using the four screws removed in Step 2. Your logger is now recording (LED blinking). Press the PRESS button for five seconds to stop the instrument. NOTE: For long-term storage, remove the battery to prevent discharge effects. -
Page 14: Importing .Txt Files Into A Spreadsheet
APPENDIX A Importing .TXT Files into a Spreadsheet Opening a Simple Logger .TXT file in Excel The following example used with Excel Ver. 7.0 or higher. 1. After opening the Excel program, select “File” from the main menu and then select “Open”. 2. In the dialog box that appears, browse and open the folder where your logger .TXT files are stored. This will be located in C:\Program Files\Simple Logger 6.xx if you accepted the default choice offered by the logger installation program. -
Page 15: Formatting The Date And Time
Arms 35401.49 3.5 35401.49 35401.49 35401.49 13.5 35401.49 35401.49 35401.49 23.5 35401.49 27.5 35401.49 35401.49 34.5 35401.49 Figure A-1. Sample Data Imported into Excel. Formatting the Date and Time Column ‘A’ contains a decimal number that represents both date and time. Excel can convert this number directly as follows: 1. Click on column ‘B’ at the top of the column to select the data, then click on “Insert” from the main menu and select “Columns” from the drop-down menu. 2. Next, click on column ‘A’ at the top of the column to select the data, then click on “Edit” from the main menu and select “Copy” to copy the entire column. 3. Click on cell 1 of column ‘B’ and then click on “Edit” and select “Paste” to insert a duplicate of column ‘A’ into column ‘B’. This is necessary if you want to show the date and time in two separate columns. - Page 16 5. In the dialog box that opens, select the “Date” option from the category list on the left. Select the date format you desire and click on “OK” to format the column. 6. Click on the top of column ‘B’, then click on “Format” and select “Cells” from the drop-down menu. 7. In the dialog box that opens, select the “Time” option from the category list on the left. Select the time format you desire and click on “OK” to format the column. Figure A-2 shows a typical spreadsheet with date, time and value displayed. It may be necessary to change the column width to see all the data. 12/02/04 11:45 AM 12/02/04 11:45 AM 12/02/04 11:45 AM 23.5 12/02/04 11:45 AM 27.5 12/02/04 11:45 AM 12/02/04 11:45 AM 34.5 12/02/04 11:45 AM 12/02/04 11:45 AM 41.5 12/02/04 11:45 AM 45.5 12/02/04 11:46 AM 12/02/04 11:46 AM Figure A-2.
-
Page 17: Repair And Calibration
For instrument repair and calibration: You must contact our Service Center for a Customer Service Authorization Number (CSA#). This will ensure that when your instrument arrives, it will be tracked and processed promptly. Please write the CSA# on the outside of the shipping container. If the instrument is returned for calibration, we need to know if you want a standard calibration, or a calibration traceable to N.I.S.T. (Includes calibration certificate plus recorded calibration data). Ship To: Chauvin Arnoux , Inc. d.b.a. AEMC Instruments ® ® 15 Faraday Drive Dover, NH 03820 USA Phone: (800) 945-2362 (Ext. 360) (603) 749-6434 (Ext. 360) -
Page 18: Limited Warranty
® For full and detailed warranty coverage, please read the Warranty Coverage Information, which is attached to the Warranty Registration Card (if enclosed) or is available at www.aemc.com. Please keep the Warranty Coverage Information with your records. What AEMC Instruments will do: ®... - Page 19 08/18 99-MAN 100214 v11 Chauvin Arnoux , Inc. d.b.a. AEMC Instruments ® ® 15 Faraday Drive • Dover, NH 03820 USA • Phone: (603) 749-6434 • Fax: (603) 742-2346 www.aemc.com...
