GAS ONE GS-800P Instruction Manual

GAS ONE

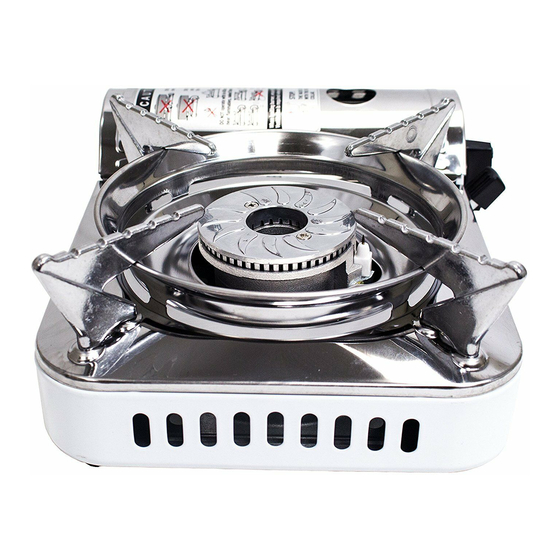

MODEL GS-800P PORTABLE BUTANE STOVE
FOR OUTDOOR USE AS A CAMPSTOVE.
NOT FOR HOUSEHOLD USE.
INSTRUCTION MANUAL
Important: Read these instructions for use carefully.
Familiarize yourself with the appliance before connecting
it to its gas container. Keep these instructions for future reference.
WARNING
CARBON MONOXIDE HAZARD
This appliance can produce carbon monoxide
which has no odor.
Using it in an enclosed space can kill you.
Never use this appliance in an enclosed space
such as a camper, tent, car or home.
Model GS-800P
16.4 oz. Propane
FOR YOUR SAFETY FOR YOUR SAFETY
If you smell gas: Do not store or use gasoline or other
liquids with ammable vapours in the
1. Do not attempt to light appliance.
vicinity of this or any other appliance.
2. Extinguish any open ame.
3. Disconnect from fuel supply. This stove is equipped for use with
4. Evacuate area, call for professional butane gas only. Do not attempt to
help.
operate this stove at temperatures
below freezing (32 degrees F).
NAME OF PARTS
Burn Head
Windshield
Igniter
Drip Pan
Control/
Igition Knob
WARNING
BEFORE INSERTING A CANISTER, ALWAYS ENSURE THAT THE PAN SUPPORT/DRIP
TRAY HAS BEEN PLACED IN THE UPRIGHT AND CORRECT POSITION.
USE OF THE APPLIANCE WITH BUTANE CANISTER
IMPORTANT
This portable gas stove shall be used with 227g (8 Oz.) GASONE Model GAS-1 non-re llable fuel
gas canister.
IT MAY BE HAZARDOUS TO ATTEMPT TO FIT OTHER TYPES OF GAS CONTAINERS.
* REMOVE ANY TRANSIT PROTECTION MATERIAL.
FITTING THE GAS CANISTER
8 oz. Butane
1. Make sure the Canister Locking Lever is in the "UNLOCK" position or the
gas canister can not be installed.
Make sure the Control Konb is turned all the way clockwise to the "OFF"
position.( Fig.1)
2. Open the Gas Canister Cover and insert the canister so that the regulator
guide is aligned with the notch in the canister rim. ( Fig.2)
Safety guide
Canister holder
Check that the seals between the appliance and the gas canister are in place and in good condition
before connecting the gas canister.
DO NOT use this appliance if it has damaged or worn seals.
•
• DO NOT use this appliance if it is leaking, damaged or does not operate properly.
3. Push down on the Canister Lever to the "FUEL LOCK" position.( Fig.3)
NOTE: If the gas canister is not connected correctly, you will hear a hissing sound.
If you hear a hissing sound, check for any leaks by using soapy water.
Never use a ame. Bubbles would indicate a gas leak.
CAUTION: When connecting or disconnecting the gas canister, be sure that
no external sources of ignition are present.
WARNING
BEFORE LIGHTING THE COOKER, ALWAYS ENSURE THAT THE PAN SUPPORT/DRIP TRAY
Pan Supports HAS BEEN PLACED IN THE UPRIGHT AND CORRECT POSITION.
Operating this appliance with the pan support in the down(storage/transportation)
position will cause the appliance to overheat and possibly explode.
WARNING
THE OPENINGS AT THE BASE OF THE BURNER PROVIDE AIR FOR COMBUSTION, THEY
SHOULD NEVER BE OBSTRUCTED. IF THE FLAME BECOMES SIGNIFICANTLY ORANGE CHECK
Canister Cover
THESE OPENINGS FOR A BLOCKAGE.
IF THE APPLIANCE CANNOT BE ADJUSTED TO PERFORM CORRECTLY IT SHOULD NOT BE
Canister Locking Lever USED UNTIL SERVICED OR REPAIRED.
LIGHTING THE STOVE
NOTE: Close the Canister Cover before lighting. Not closing the cover can cause the canister
to overheat.
Turn the Control Knob counterclockwise until you hear a click indicating that
a spark has been produced.( Fig.4)
If the stove does not light, turn the Control Knob back to the OFF position
and repeat.
If after three failed attempts, the stove does not light, turn the Control Knob to the "OFF"
position and move the canister lever to the "UNLOCK" position.
Open the canister cover and remove the canister. Shake the canister to see if it is empty.
If empty, replace the canister and begin from Fig.1
TO ADJUST HEAT
Flame can be controlled by turning the Ignition Knob between the 'IGNITION' and 'OFF' position.
EXTINGUISHING
OFF
UNLOCK 1. Turn the Ignition Knob to 'OFF' to shut o fuel supply (Fig. 5). Wait until the flame
is fully extinguished before performing the next step.
MINI STOVE
2. Raise the Canister Lock Lever to 'UNLOCK' and remove the gas canister from
LOCK
IGNITION
the compartment. (Fig.1)
( Fig.1)
Note: Do not leave the gas canister inside the unit when not in use.
Notch
AFTER USE
1. Replace the cap on the gas canister after removing it from the unit. Store upright in a cool
dry place.
2. Make sure the burner is cool to touch before packing unit away.
( Fig.2)
THE AUTOMATIC SAFETY SHUT-OFF DEVICE ACTIVATION
When used in high temperature areas, such as the beach during summer or in a hot room, the
internal pressure of the canister may rise to more than 71psi~85psi
28psi~43psi). This will activate the Automatic Safety Shut-o Device inside the regulator.
Remove the Gas Canister from the compartment.
If the stove had been in use and was working properly. the butane can should be cold to the
touch. If it is not and feels warm, go back to the "Precautions" on the Stove Use section and
con rm if you are using the stove correctly.
OFF
Turn the Ignition Knob to 'IGNITION' to release any excess gas inside the regulator.
UNLOCK
Repeat the 3 steps for inserting the gas canister after it has cooled down.
MINI STOVE
LOCK IGNITION
( Fig.3)
UNLOCK
MINI STOVE
LOCK
( Fig.4)
OFF
MINI STOVE
IGNITION
( Fig.5)
(normal pressure =
