Summary of Contents for McElroy DataLogger 6
- Page 1 DataLogger ® Operator’s Manual: DL18301 Manual Rev A 08/18 Original Language: English DataLogger ®...
- Page 2 Copyright 2018 McElroy Manufacturing, Inc. All rights reserved. P.O. Box 580550 Tulsa, Oklahoma 74158-0550, USA...
- Page 3 If a tool, procedure, work method or operating technique that is not specifically recommended by McElroy is used, you must satisfy yourself that it is safe for you and for others.
-
Page 4: Table Of Contents
McElroy University ........ - Page 5 MAINTENANCE Usage and Care ..............6 - 1 No User Serviceable Parts .
-
Page 6: Literature Information
McElroy University The graphics shown in this document are for reference only. They may differ from the actual screens generated For more than 30 years, McElroy has been the only by the actual product. pipe fusion machine manufacturer to continuously offer advanced training. -
Page 7: Limited Warranty
Product Improvement purchased items (such as electronic devices, pumps, switches, etc.), in which case that manufacturer’s McElroy reserves the right to make any changes in or warranty applies. Warranty applies when returned improvements on its products without incurring any freight is prepaid and which, upon examination, shall liability or obligation to update or change previously disclose to have been defective. -
Page 8: Safety
Do not operate this equipment in an explosive replaced, install a safety message on the replacement atmosphere. part. New safety messages can be ordered from McElroy using the part number listed. General Safety Safety is important. Report anything unusual that you notice during set up or operation. -
Page 9: Do Not Stare Into Laser Beam
Do Not Stare into Laser Beam Do not stare into beam of the laser. Damage to eyes ¡CUIDADO! could occur. Point the laser only at the object you are scanning. ОСТОРОЖНО ATTENTION Heater is Hot The heater is hot and will burn clothing and skin. Keep ¡CUIDADO! the heater in its insulated heater stand or blanket when not in use, and use care when heating the pipe. -
Page 10: General Information

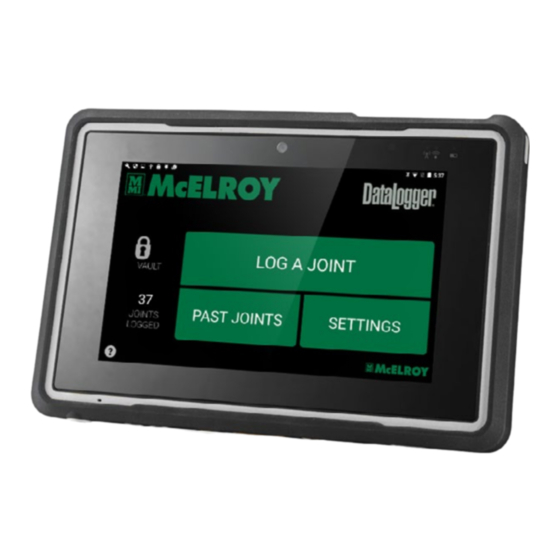

GENERAL INFORMATION DataLogger® 6 Hardware Components Volume control buttons Power button Trigger button Barcode reader lens Light sensor Power indicator Camera lens RF (Radio Frequency) indicator Battery charge indicator Tether holder Tether holder Microphone Touch screen WWAN pass-through connector USB host connector GPS pass-through connector Micro USB client connector Serial Connector... -
Page 11: Installing The Sim Card (Optional)
Installing the SIM Card (Optional) 1. Remove the screw from the SIM card cover and flip open the cover. 2. With the SIM card’s chip side facing the back of the device and the beveled corner pointing to the slot, insert the card all the way into the slot. -
Page 12: Operation
The Home screen is your starting point to access all the features on your device. 4:05 Monday, April 17 Settings DataLogger 6 Navigation bar: goes back to the previous screen. Starting the DataLogger® 6 opens the Home screen. opens a screen containing thumbnails of 1. -
Page 13: Select Software Language
If you do not have a Vault account, open an internet browser on this tablet and go to vault. mcelroy.com. Create an account and return to the DataLogger 6 App and enter the username and password. 2. Tap Preferences on the Settings Menu. -
Page 14: Troubleshooting
TROUBLESHOOTING Perform a Hard Reset 1. If the device freezes, a hard reset may fix the issue. To perform a hard reset: Hold the Power button for 10-12 seconds until the device restarts. Power button TX05353-04-18 Troubleshooting 5 - 1 DataLogger ®... -
Page 15: Usage And Care
Any attempt to open the unit can affect the weatherproofing and can damage the unit. Calibration Pressure sender must be sent to McElroy or Authorized Service Center every year for calibration to ensure accuracy. A backup pressure sender may be kept on hand to minimize down time. -
Page 16: Specifications
SPECIFICATIONS Specifications DataLogger 6 Specs Model: DL18001 Supported Standards: ASTM F3124, ASTM F2620, ISO 21307, GIS/PL2-3-07, Profuse, DS/INF 70-2 PE:HD, WIS 4-32-08, DVS 2207-1 PE-HD, DVS 2207-11 PP, DS/INF 70-2 PP, PPI TR-33, additional standards upon request. See device for latest list of supported standards. -
Page 17: Notes
NOTES Notes Acrobat™ HPU 8 - 1 Notes...
