1.2 PHYSICAL DESCRIPTION

Feature
1. Vacuum Inlet Quick disconnect valve for connecting to the gel dryer's vacuum line.
Port
2. Vacuum Line Pre-assembled with 1/4" quick disconnect fitting and 1/4" vacuum tubing.
3. Two-way Prevents foaming when the HydroTech is operating but the gel dryer is not in use.
Valve This valve is plumbed into the vacuum line.
4. Power On/ This switch can be set for 0 to 3 hours of operation or continuous operation.
Off Timer
5. Vacuum Provides vacuum pressure indicator. This gauge is plumbed into the vacuum line.
Gauge
(optional;
not shown)
2
Table 1.

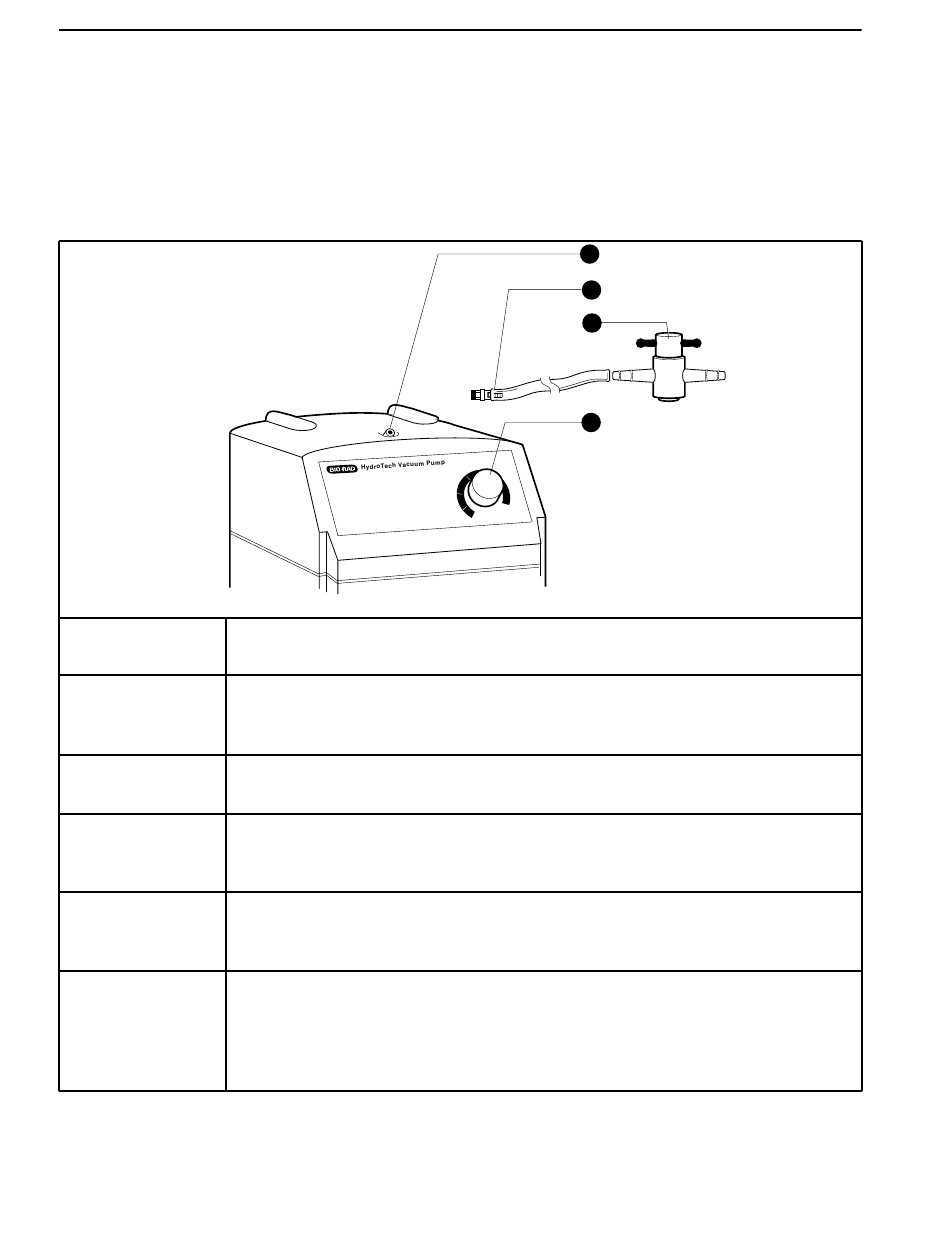

Front View Physical Features

Description
1
2
3
4
