Summary of Contents for Zylight Pro-Palette

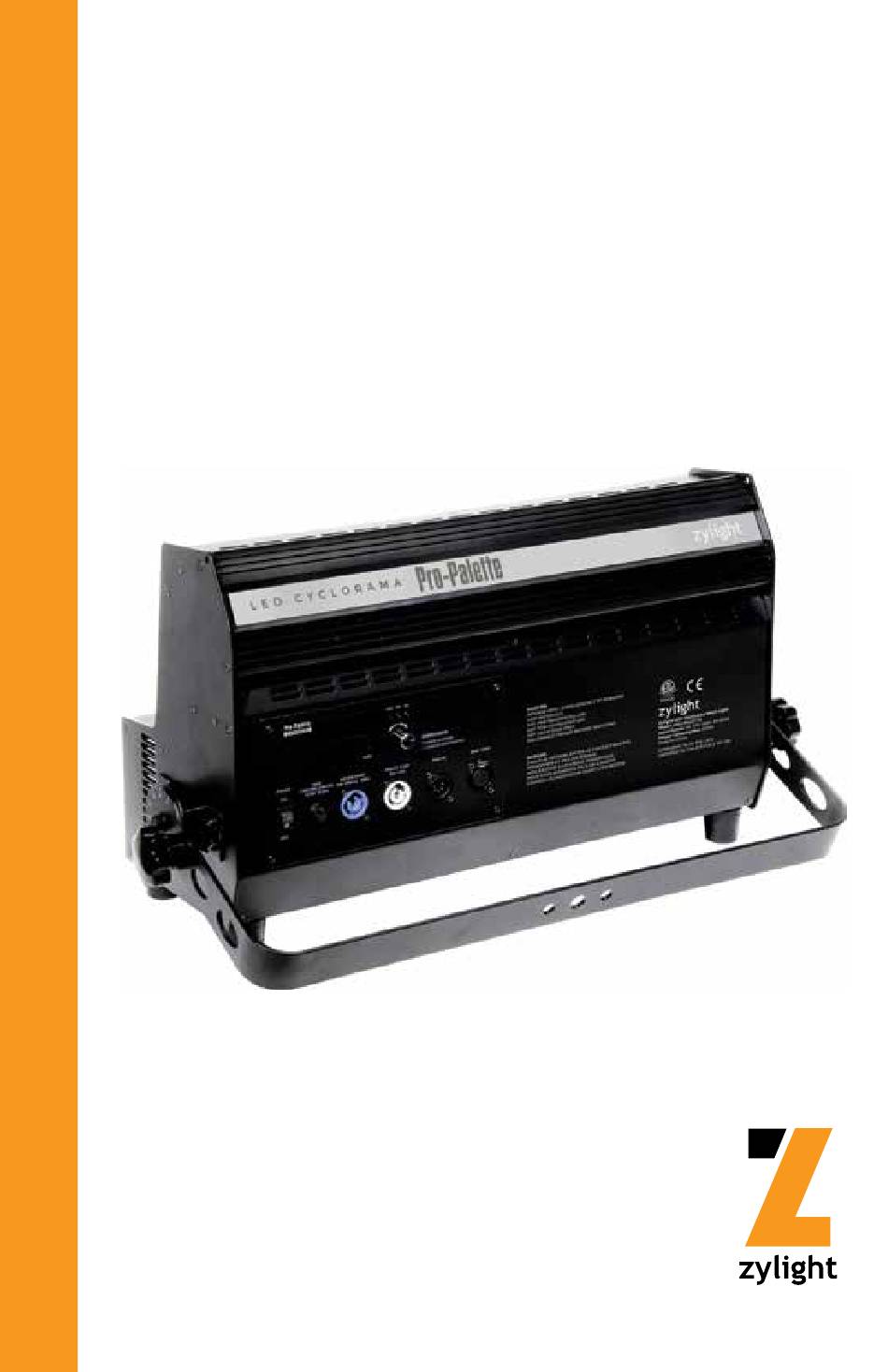

- Page 1 Pro-Palette Color LED Cyclorama User Instructions Pro-Palette Manual v1.0...
- Page 2 Thank you for choosing Zylight and the Pro-Palette LED instrument. This xture represents the state-of-the-art in LED lighting and will provide you with years of creativity. The exibility of the Pro-Palette is unmatched and this xture will be a contributing partner to your productions everyday.
- Page 3 DMX with RDM compataiblity , and rugged construction for years of reliable service. Every Pro-Palette has been thoroughly tested and has been shipped in optimal operating condition. Carefully check the shipping carton for damage that may have occurred during shipping. If the carton...
-
Page 4: Customer Support
You may also visit us on the web at www.zylight.com for any comments or suggestions. Service Hours are Monday through Friday 9:00 a.m. to 5:00 p.m. -
Page 5: Warranty
Warranty The Pro-Palette carries a two year limited warranty. Please go to www.zylight.com/product-registration and register your product and validate your purchase. All returned service items, whether under warranty or not, must be freight pre-paid and accompany a return authorization (R.A.) number. The R.A. number must be clearly written on the outside of the return package. -
Page 6: Safety Precautions
Pro-Palette Safety Precautions • To reduce the risk of electrical shock or re, do not submerge this xture in water. • Do not spill large amounts of water or other liquids into or onto your xture. • Do not attempt to operate this unit if the power cord has been frayed or broken. -
Page 7: Product Introduction
The specially designed re ector allows the Pro-Palette to produce a soft and even wash for cyclorama and walls. The Pro-Palette is also RDM ready for setting parameters remotely. - Page 8 3).FIL (Built-in color macros, Filters codes as color ref. only) Zylight has preloaded the XPRESS Color Scroller’s preference 16-colour gel-string as macros into the Pro-Palette for easier operation. Using two channels, the rst DMX channel assigned controls the intensity or brightness and the xture will automatically occupy the sequencing channel numbers for the color macros.
-
Page 9: Part Identification
(the white connector). To avoid overloading, the maximum looping for the Pro-Palette is ve units at 220V or three units at 110V. The Pro-Palette comes with a power cable terminated with a PowerCon connector on one side and a bare wire on the other side. - Page 10 Pro-Palette Electrical and Signal Connections Attention: Don’t connect or disconnect the PowerCon connector under load or live! Connect the power connectors only with an authorized and licensed technician! Power Conductor International Live (L) Black Brown Neutral (N) White Blue Earth (E)
-
Page 11: Operation
The safety cable should loop through the xture yoke and be connected to a secure attachment on the other end. The Pro-Palette may be mounted upright or upside down; however, make sure there is adequate room for ventilation, con guration, and maintenance. - Page 12 Operation (cont.) The Pro-Palette will start a self-checking process when power is applied. The unit will display the rst DMX address of the 4COL mode and is ready to use. For standard operation, connect the xture to a power source (100~240V AC single phase), and a DMX signal cable.
-
Page 13: Control Parameters
Control Parameters Operation Occupied Mode DMX Channels Control Channels DMX Value Output Value 4COL 0-255 0-100% Green 0-255 0-100% Blue 0-255 0-100% White 0-255 0-100% Intensity 0-255 0-100% 0-255 0-360º Saturation 0-255 0-100% Brightness 0-255 0-100% Effect (16 Colors) 0-15 Clear 16-31 Pale Gold... -
Page 14: Year Limited Warranty
(c) use of power supply equipment, power adapters, or cables not supplied by Zylight LLC for speci c use with the equipment for which it was speci ed; (d) any unauthorized disassembly, repair, or modi cation; (e) cosmetic damage;... - Page 15 Warranty Cont. Zylight reserves the right to make changes in design and/or improvements upon its products without any obligation to include these changes in any products previously manufactured. No warranty, whether expressed or implied, is given or made with respect to any accessory supplied with products described above.
- Page 16 Zylight LLC World Headquarters: 10718 McCune Avenue Los Angeles, CA 90034 978-244-0011 info@zylight.com...
