C

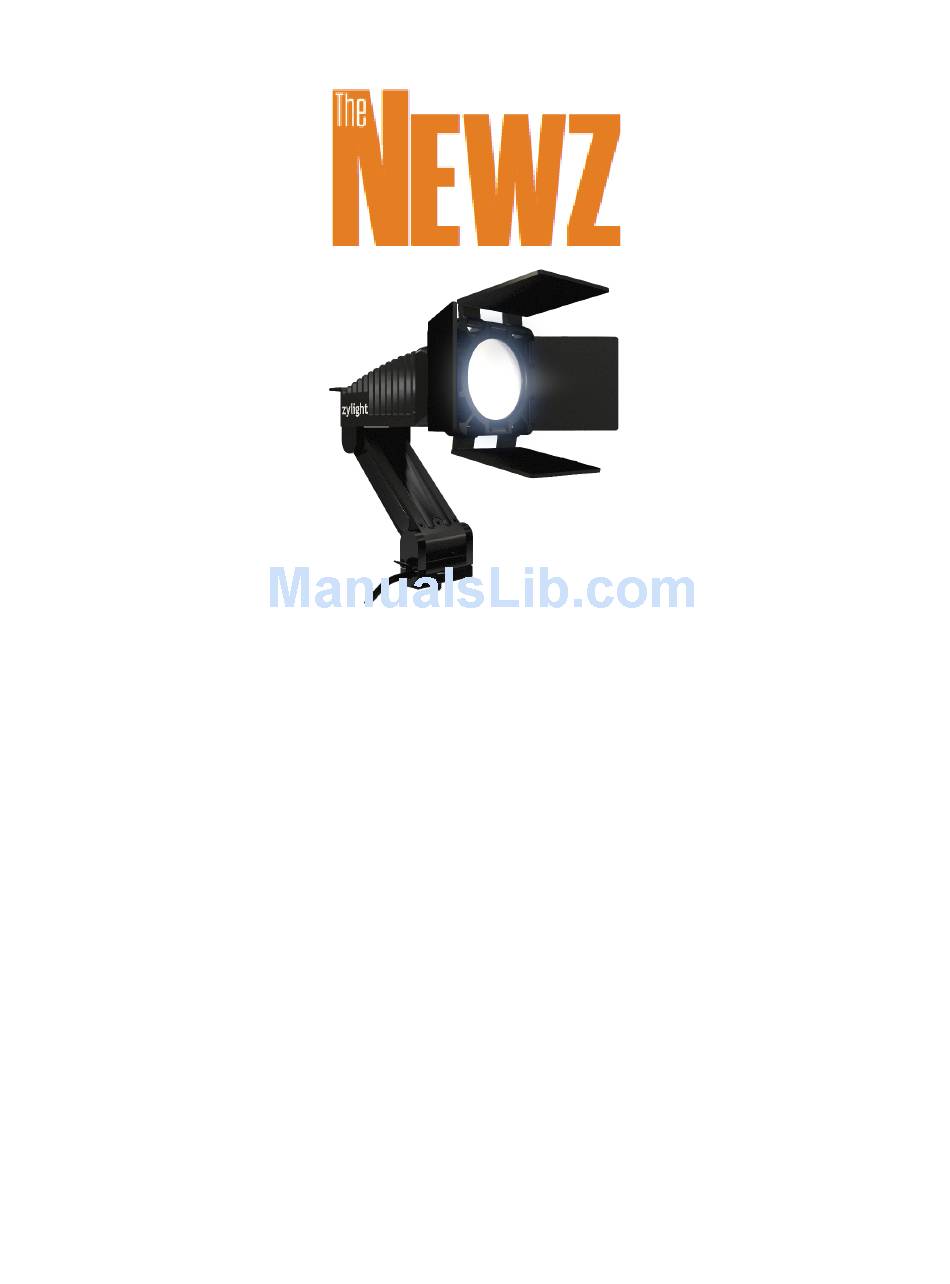

ongratulations on the purchase of your Zylight LED Newz light. Be sure to read this manual in its entirety before using
your fixture as this document contains information and important notes regarding the use of this product. Please refer to
this manual for any questions you may have in the operation and care of your new fixture.
Each Newz light contains the following:
(1)
25-03002 - Newz Light Head with integrated articulated arm
(1)
25-03001 – ZX Camera Base assembly
with ¼-20 stud & D-Tap cable
(1)
19-01008 – ZX Collapsible barn doors
Optional Equipment (sold separately)
(1)
19-02051 - Integrated hot shoe DSLR strobe plate
(1)
26-02030 - AC Worldwide power supply w/ Female DTAP
(1)
18-02034 - Female DTAP to male 4 pin XLR adaptor cable
(1)
19-02027 - D-Pro baby pin to 1/4-20 fricition mount
Customer Support: Zylight provides customer support via phone and email for any questions you may have during your set
up or
initial operation. Service Hours are Monday through Friday 9:00 a.m. to 5:00 p.m. Eastern Standard Time. You may also visit
us on the web at www.zylight.com with any comments or suggestions.
Voice/Fax (In English): (978) 244-0011
OWNER'S MANUAL
ENGLISH
V.1.7
E-mail: support@zylight.com
Advertisement
Table of Contents
Related Manuals for Zylight Newz
Summary of Contents for Zylight Newz
- Page 1 V.1.7 ongratulations on the purchase of your Zylight LED Newz light. Be sure to read this manual in its entirety before using your fixture as this document contains information and important notes regarding the use of this product. Please refer to this manual for any questions you may have in the operation and care of your new fixture.
- Page 2 1 Your Newz can be cleaned with a soft, dry cloth. In case of heavy soiling, moisten a cloth with soap solution, then dry the unit with a dry cloth. DO NOT USE DETERGENT, ALCOHOL OR SOLVENT.
- Page 3 Turn the right knob to adjust the color temperature from tungsten to daylight. The display on the articulating arm shows the color temperature readout as a scale. The Newz is capable of memorizing one preset color temperature. To set a given color temperature, press in and hold the right “CT”...
- Page 4 ‘First’, then continue folding the remaining Leaves in counter-clockwise order. ADDITIONAL DIFFUSION: There is one translucent barn door leaf included as part of the Newz Light. This leaf can be used over the face of the light to further diffuse the light output for a softer lighting effect.
-
Page 5: Specifications
2 Year Limited Warranty: Zylight LLC warrants to the original end user customer of its products that its products are free from defects in material and workmanship under normal use for (2) years from the date of purchase. Except as provided herein, Zylight LLC makes no express warranties, and any implied warranties, including those of merchantability and fitness for a particular purpose, are limited in duration to the duration of the written limited warranties contained herein. - Page 6 - Receive Notifications Ð You’ll be notified of the latest firmware and software updates and improvements to get the most out of your Zylight product. Zylight will not sell or share your information with anyone. page 7...
