iPOWER TPD-800A Quick Installation Guide
TPD-800A Quick Installation Guide
This Quick Installation Guide is a basic introduction of the TPD-800A hardware and software configuration.
It is provided with the hope of helping you to configure the device fast and easily. For more detailed
information, please refer to the User Manual.
Ⅰ . Hardware Configuration
1. Checking the devices and accessories first, one set of TPD-800A and one piece of network cable.
2. Set up the TPD-800A as Master. (M/S indicator on means the TPD-800A is Master, M/S indicator off
means the TPD-800A is slave).
Master Setting Method: Press Reset button on the device for 12 seconds (the interval of RUN light is 2
seconds) Setting is successful when the M/S indicator is on.
Slave Setting Method: Press Reset button on the device for 6 seconds (the interval of RUN light is 2 seconds.
Setting is successful when he M/S indicator is off.
Advertisement
Table of Contents
Related Manuals for iPower TPD-800A
Summary of Contents for iPower TPD-800A
- Page 1 1. Checking the devices and accessories first, one set of TPD-800A and one piece of network cable. 2. Set up the TPD-800A as Master. (M/S indicator on means the TPD-800A is Master, M/S indicator off means the TPD-800A is slave).

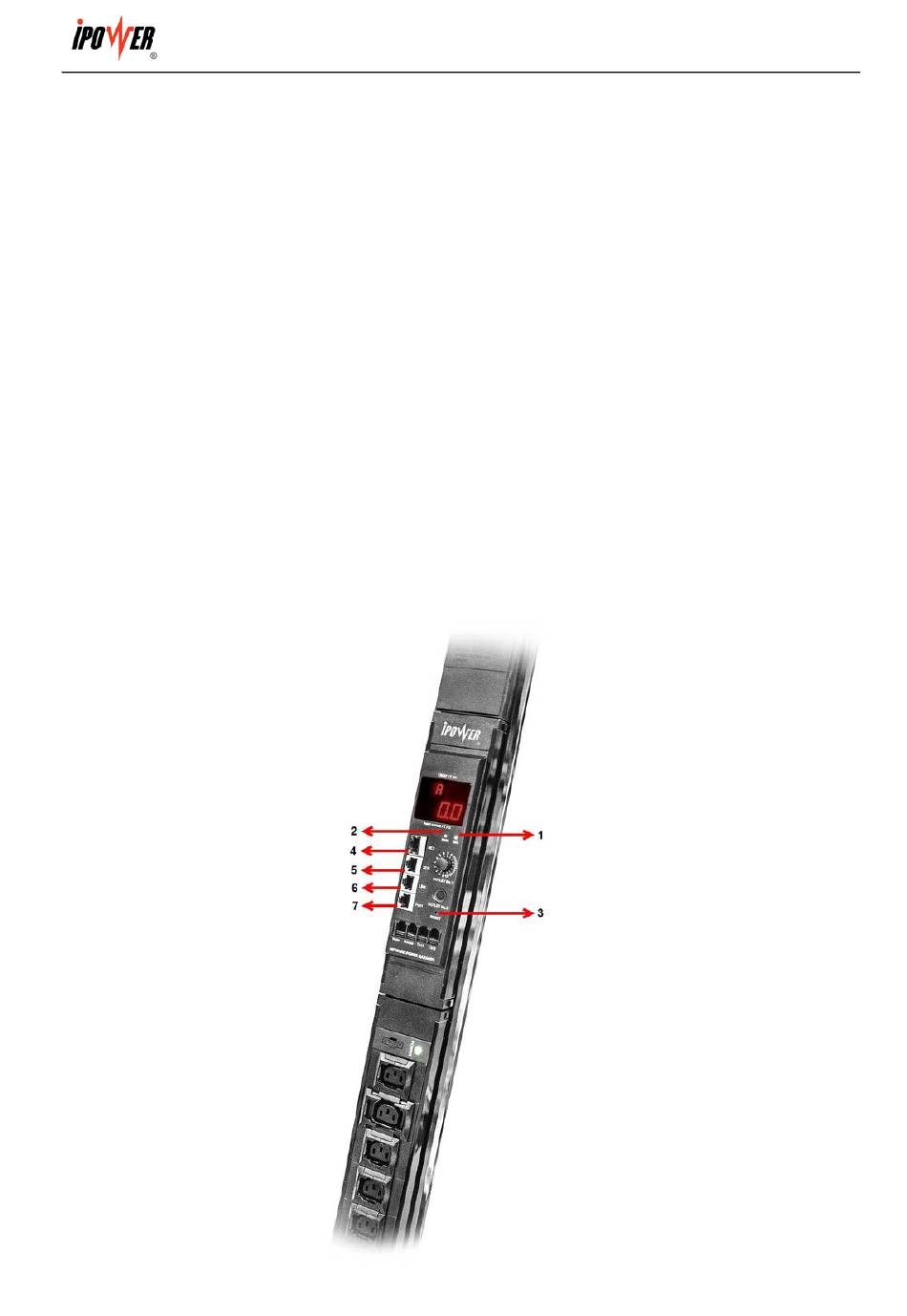

- Page 2 5. SER: for daisy-chain 6. LINK: when daisy-chain TPD-800A, connect with the SER port of the next TPD-800A 3. Device connection: a. Single device connection: Single device must be set as the Master. Connect the NET port of device to PC by network cable.
- Page 3 1. Connect the PC and the device directly; 2. Revise the PC network configuration to access TPD-800A firstly; making sure the changed PC IP address and the default device IP address are in the same network segment. For instance: set the PC IP address to be 192.168.1.X (X can be 0 to 255 except 163);...
- Page 4 TPD-800A Quick Installation Guide 3. Click on and open the "Device Configuration" interface, enter the device series number that is a unique one which could be viewed on the LED screen of the device panel:...
- Page 5 4. According to working environment to configure the TPD-800A network: open the menu of "Network" to set the network address required. Make sure the TPD-800A new IP must be in the same network segment with the original IP of your PC. Submit and save after confirmation. This configuration will come into force after software restart.
- Page 6 TPD-800A Quick Installation Guide 7. Connect TPD-800A and PC to WAN, and access TPD-800A with the new IP configured. TPD-800A also support SNMP, SSH and Telnet management. Details refer to the User Manual.
