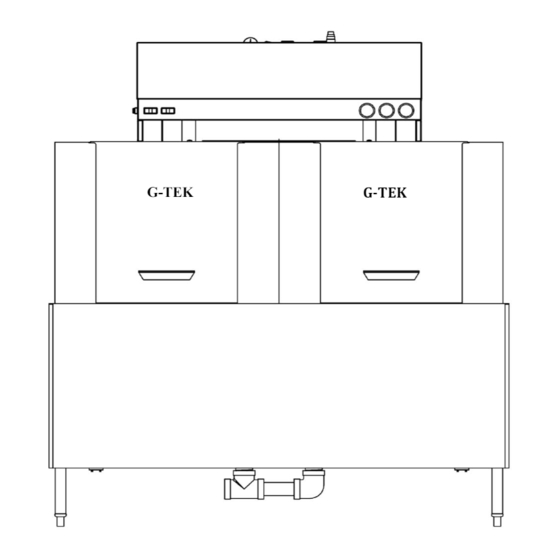

- Page 1 Global-Tek (Singapore) Pte Ltd Double Tank Dish Washing Machine Model CR-2 Model: GT-CR 2 Double Tank Conveyor Dish Washer G-TEK G-TEK 适用于 9C51L0010 9C51R0010 P a g e...
-
Page 2: Table Of Contents
Double Tank Conveyor Dish Washer Double Tank Double Ta Dish Washing nk Dish Washing Machine Model CR-2 Machine Model CR-2 CONTENTS Wash Chamber……………………………………………………………………3-4 Wash Tank Assembly………..……………………………………………………5-6 Wash and Rinse Arm Assembly (L-R)…………………………………….………7-8 Wash and Rinse Arm Assembly（R-L）…….…..…………..………………….9-10 Rinse Arm Assembly………………………………………………………11-12 Booster Heater Assembly………………………………………………………13-14 Booster Piping Assembly ……………………….………………………………15-16 Conveyor Rack Assembly………………………………………………………17-18... -
Page 3: Wash Chamber
Double Tank Conveyor Dish Washer Double Tank Double Ta Dish Washing nk Dish Washing Machine Model CR-2 Machine Model CR-2 Wash Chamber P a g e... -
Page 4: Wash Chamber
Double Tank Conveyor Dish Washer Double Tank Double Ta Dish Washing nk Dish Washing Machine Model CR-2 Machine Model CR-2 Wash Chamber Item No. Parts Series No. Parts Name 0T12D-20A-301 Upper Hood 0T12D-20A-302 Upper Hood 0T2D-65331 Door Panel (L) 0T2D-65331R Door Panel (R) F003-65326-01 Door Strip... -
Page 5: Wash Tank Assembly
Double Tank Conveyor Dish Washer Double Tank Double Ta Dish Washing nk Dish Washing Machine Model CR-2 Machine Wash Tank Assembly Model CR-2 Item No. Parts Series No. Parts Name 0T12D-10000 Double Tank 0T2D-65303 Scape Tray (right hand side tank, rear) 0T12D-65302L Scrape Tray (right hand side tank, front) P a g e... - Page 6 Double Tank Conveyor Dish Washer Double Tank Double Ta Dish Washing nk Dish Washing Machine Model CR-2 Machine Model CR-2 Item No. Parts Series No. Parts Name 0T2D-65301 Basket 0T12D-65303 Scrape Tray (left hand side tank, rear) 0T12D-65302R Scrape Tray (left hand side tank, front) 0T2D-65323 Seal 0T2D-65307...
- Page 7 Double Tank Conveyor Dish Washer Double Tank Double Ta Dish Washing nk Dish Washing Machine Model CR-2 Machine Model CR-2 Wash Assembly (left) P a g e...
- Page 8 Double Tank Conveyor Dish Washer Double Tank Double Ta Dish Washing nk Dish Washing Machine Model CR-2 Machine Model CR-2 Wash Assembly (left) Item No. Parts Series No. Parts Name 0T12D-50301L Stand Pipe F001-50305-01 Gasket 0T2D-50322 Upper Wash Arm Bracket 0T12DA-SQXG-PJ-L Upper Left Wash Arm (complete) 4,6,7,10...
- Page 9 Double Tank Conveyor Dish Washer Double Tank Double Ta Dish Washing nk Dish Washing Machine Model CR-2 Machine Model CR-2 Wash Assembly (Right P a g e...
- Page 10 Double Tank Conveyor Dish Washer Double Tank Double Ta Dish Washing nk Dish Washing Machine Model CR-2 Machine Model CR-2 Wash Assembly (Right Item No. Parts Series No. Parts Name 0T12D-50301R Stand Pipe F001-50305-01 Gasket 0T2D-50322 Upper Wash Arm Bracket 0T12DA-SQXG-PJ-R Upper Right Wash (complete) 4,6,7,10...
-
Page 11: Rinse Arm Assembly
Double Tank Conveyor Dish Washer Double Tank Double Ta Dish Washing nk Dish Washing Machine Model CR-2 Machine Model CR-2 Rinse Arm Assembly 11 | P a g e... -
Page 12: Rinse Arm Assembly
Double Tank Conveyor Dish Washer Double Tank Double Ta Dish Washing nk Dish Washing Machine Model CR-2 Machine Model CR-2 Rinse Arm Assembly Item No. Parts Series No. Parts Name 0T12D-50317L Stand Pipe (left to right) 0T12D-50317R Stand Pipe (right to left) F001-50317-01 Gasket 0T2D-50327... -
Page 13: Booster Heater Assembly
Double Tank Conveyor Dish Washer Double Tank Double Ta Dish Washing nk Dish Washing Machine Model CR-2 Machine Model CR-2 Booster Heater 13 | P a g e... - Page 14 Double Tank Conveyor Dish Washer Double Tank Double Ta Dish Washing nk Dish Washing Machine Model CR-2 Machine Model CR-2 Booster Heater Item No. Parts Series No. Parts Name 0T1D-40A-301 Booster Tank F001-40309-01 Heater Gasket G005-9KW-02 Heating Element 0T2D-40305 Cover 0T1D-40A-302 Base 0T1D-40A-303...
- Page 15 Double Tank Conveyor Dish Washer Double Tank Double Ta Dish Washing nk Dish Washing Machine Model CR-2 Machine Model CR-2 Rinse Piping 15 | P a g e...
- Page 16 Double Tank Conveyor Dish Washer Double Tank Double Ta Dish Washing nk Dish Washing Machine Model CR-2 Machine Model CR-2 Rinse Piping Item No. Parts Series No. Parts Name 0T1D-50312 Connecting pipe F001-50317-01 Gasket ½” S.S. Joint D007-1/2-01 ½” S.S. Tee Joint D006-1/2-01 A012-50311/1A-01 Bushing for Thermo Probe...
-
Page 17: Conveyor Rack Assembly
Double Tank Conveyor Dish Washer Double Tank Double Ta Dish Washing nk Dish Washing Machine Model CR-2 Machine Model CR-2 Conveyor Assembly Item No. Parts Series No. Parts Name 0T12D-30303 Rack Truck E009-M10x30-01 Hex Bolt A012-30310-01 Positioning Bushing 0T2D-30305 Conveyor Dog (left) E012-M10-01 Flat Washer E011-M10-01... -
Page 18: Guide Rail
Double Tank Conveyor Dish Washer Double Tank Double Ta Dish Washing nk Dish Washing Machine Model CR-2 Machine Model CR-2 Guide Rail Item No. Parts Series No. Parts Name E009-M8X25-01 Hex Bolt F018-30311-01 Sliding Block 0T12D-30301 Rack Guide E012-M8-01 Flat Washer E011-M8-01 Spring Washer E013-M8-01... -
Page 19: Conveyor Motor Assembly
Double Tank Conveyor Dish Washer Double Tank Double Ta Dish Washing nk Dish Washing Machine Model CR-2 Machine Model CR-2 Conveyor Motor Assembly 19 | P a g e... -
Page 20: Conveyor Motor Assembly
Double Tank Conveyor Dish Washer Double Tank Double Ta Dish Washing nk Dish Washing Machine Model CR-2 Machine Model CR-2 Conveyor Motor Assembly Item No. Parts Series No. Parts Name (1-23) 0T1D-CDZZ-PJ Drive Shaft (complete) E010-M8X55-01 Hex Bolt E012-M8-01 Flat Washer A012-60306-01 Bush F019-60304-01... -
Page 21: Control Panel
Double Tank Conveyor Dish Washer Double Tank Double Ta Dish Washing nk Dish Washing Machine Model CR-2 Machine Model CR-2 Electric Control Panel 21 | P a g e... -
Page 22: Control Panel
Double Tank Conveyor Dish Washer Double Tank Double Ta Dish Washing nk Dish Washing Machine Model CR-2 Machine Model CR-2 Electric Control Panel Item No. Parts Series No. Parts Name 0T12D-70B-301 Control Panel Cabinet G034-CD-01 Start / Stop Switch G034-CD-03 Power On / Off Switch G034-CD-04 Manual / Auto Switch... - Page 23 Double Tank Conveyor Dish Washer Double Tank Double Ta Dish Washing nk Dish Washing Machine Model CR-2 Machine Model CR-2 Electrical Control Components 23 | P a g e...
- Page 24 Double Tank Conveyor Dish Washer Double Tank Double Ta Dish Washing nk Dish Washing Machine Model CR-2 Machine Model CR-2 Electrical Control Components Item No. Parts Series No. Parts Name G027-LAEN11N-01 Auxiliary contact module 0T1D-70B-301-2 Components Plate Insulation G032-G/DUK-01 G009-D40A-04 Heater Circuit Breaker G007-E40F5N-01 Booster Heater Contactor...
