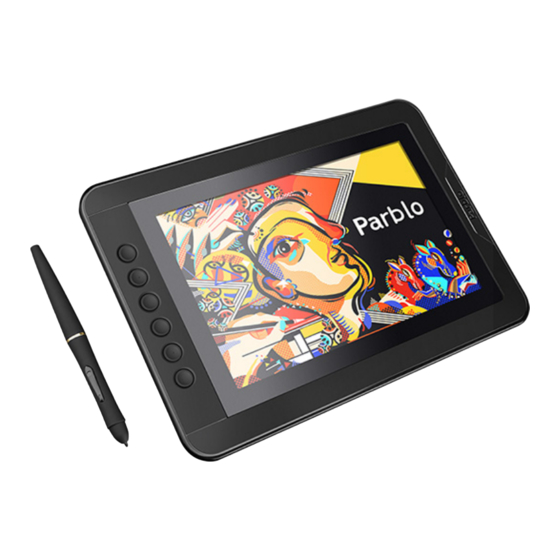

Parblo Mast10 User Manual

Windows 7/8/8.1/10, driver version 3.0 later
Hide thumbs
Table of Contents

Advertisement

Quick Links

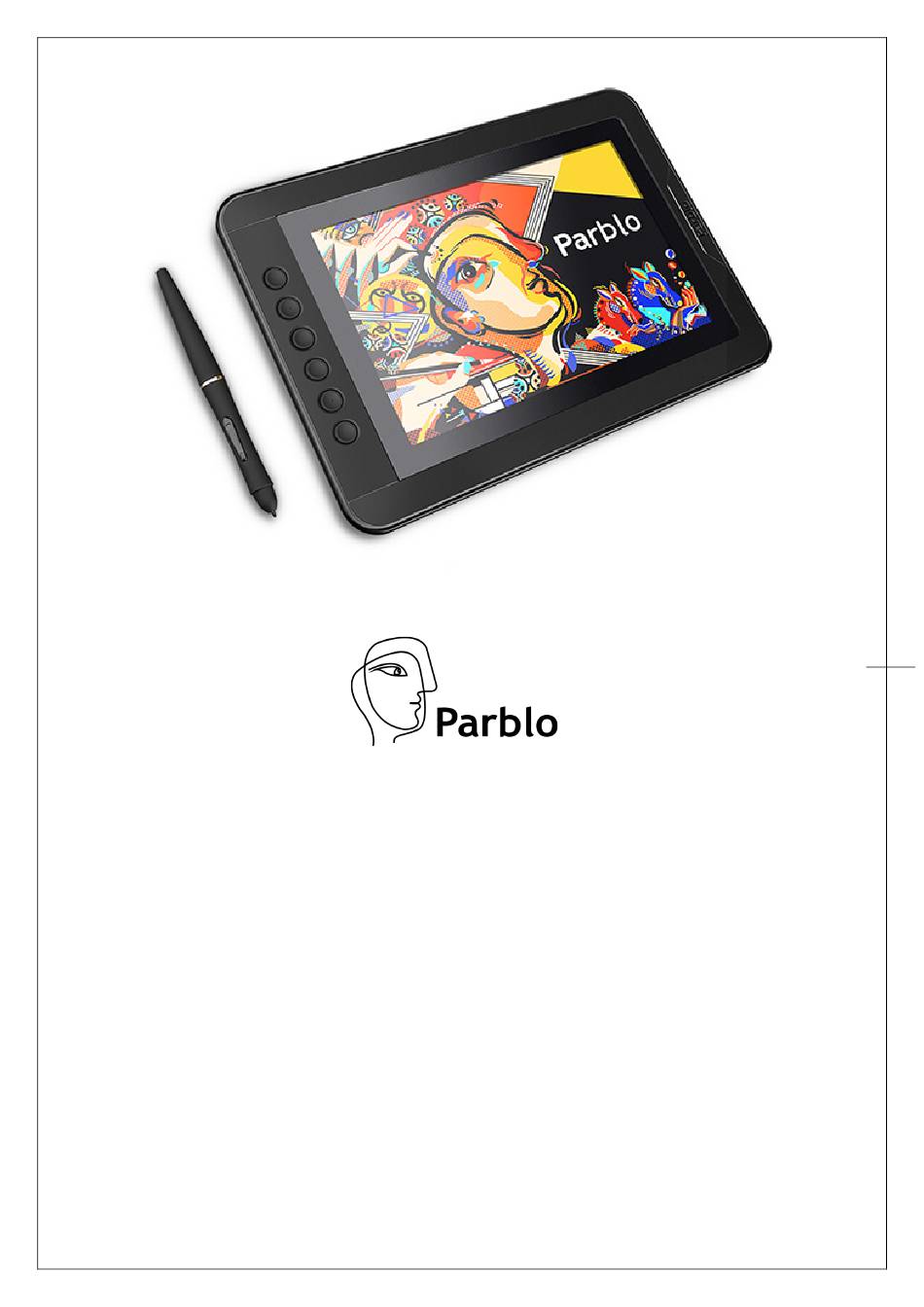

1
Mast10
User Manual
for Windows
Windows 7 / 8 / 8.1 / 10
Driver Version 3.0 later
Version: Ver.3.0 Release
Date: 2016/07

Advertisement

Table of Contents
loading

Related Manuals for Parblo Mast10

Summary of Contents for Parblo Mast10

  • Page 1 Mast10 User Manual for Windows Windows 7 / 8 / 8.1 / 10 Driver Version 3.0 later Version: Ver.3.0 Release Date: 2016/07...

  • Page 2: Table Of Contents

    III. Changing the Pen Tip ..................14 IV. Question & Answer ..................15 V. The right setting of graphic applications ............25 VI. How to care for your Parblo................27 Appendix 1: Troubles and Solutions ................28 Appendix 2: Uninstall Parblo Driver................29...

  • Page 3: General Information

    I. General Information OVERVIEW Welcome to the world of Parblo! You’ll be able to discover how easy it is to control your personal computer by using an U Pen instead of a mouse. The function of the U Pen is able to draw a line very thin, thick, light or dark (also known as “pressure sensitivity”).

  • Page 4: Verifying Hardware

    VERIFYING HARDWARE Your Parblo and package contents are shown below. If anything is missing, contact your dealer immediately.

  • Page 5: Installation

    Windows system. If the device has been successfully installed, you will see a small Parblo icon ( ) appear in the system tray, which is normally at the lower right corner of the screen. →Note: Please connected your Parblo to your computer before open your creative software.

  • Page 6: Usage Tips

    → Note: 1 . Under "extended display" view, you may use your pen cursor to navigate through both Parblo and monitor display easily by pressing down on the top button of the pen for 2 seconds. Vice versa, by pressing down the same button for another 2 seconds, your pen cursor will switch back to navigating on only one display (this could be Parblo or your monitor depending on your original display setting).

  • Page 7: Parblo Configuration

    II. Parblo configuration You may configure the Parblo by modifying the functions of the pen tip and the two barrel buttons, tap [Start] > [Settings] > [Control Panel], and double-tap the Parblo icon ( ), or tap on the Parblo icon ( ) in the system tray, usually located at lower right hand corner of the screen.

  • Page 8: Hot Keys

    U pen tip is still within the detectable cursor range. To avoid invalid keystroke actions, please allow the pen to cursor to leave the screen of PARBLO before pressing your Hot Keys. (To leave the screen, allow your U pen tip to be at least 1.5"...

  • Page 9: Pen

    Light means your PARBLO Tablet will recognize the slightest nuance of pressure while heavy will take more pressure before the digital ink or pen click will be recognized. The pressure test is also there for you to test out the differences between light and heavy pen pressure settings.
  • Page 10 Pen Pressure Test Pressure Test There are four different colors for selecting the pressure sensitivity of Parblo, and they can be adjusted in this tab. There is a test area to see the thickness of a line by pressing down on the pen tip to the pad.

  • Page 11: Calibration

    CALIBRATION Calibration U pen Click “Calibration U pen” to activate the calibration screen. Calibrated Display Options These options are there to assist you with preparing your designs for CMYK printing. You may choose a different calibrated display setting depending on the type of paper you will be printing your work and the working light environment (this includes sunlight or the color temperature of your office light tubes etc.).

  • Page 12: Support

    MONITOR MAPPING Monitor: If you have chosen to use the "Extend these displays" mode under the "Multiple Display" function, please use the PARBLO “Monitor" section to select your corresponding screen to navigate your PARBLO Upen. Open Monitor Tuner: Monitor Tuner can help you configure the PARBLO monitor Brightness, Contrast and Color Temperatures.

  • Page 13: Save & Backup

    Please note that while the system is calling up the "PARBLO Monitor Tuner," it is possible for the screen to flicker once or twice. Save & Backup Save your Preferences: Save your Hot Keys setting.

  • Page 14: Changing The Pen Tip

    III. Changing the Pen Tip Pull out the pen tip from U Pen by using the tip remover device built into the pen case. Push the new pen tip into the digital pen.

  • Page 15: Question & Answer

    D. You can download the latest version of the driver directly from our website. E. After installing the new driver version, the system will require you to restart your computer. F. After you restart your computer, on bottom right of the screen, you can find the Parblo icon ( ) within there.
  • Page 16 Q: Can’t display Full Screen on my LCD Sketch Pad A: Please follow below steps: 1. If you use NVIDIA Graphics Card in your computer： a. Right click on your Desktop and click for the 「NVIDIA Control Panel」 b. Click 「Adjust desktop size and position」 c.
  • Page 17 Q: Under Adobe Flash Professional CC, when the pen tip first makes contact with the working area, a line will show up connected from the bottom margin making it difficult to navigate the brush tool。 A: Please update your Adobe Flash Professional CC to last version.
  • Page 18 Q: Cursor has offset when I open a folder , like this picture. A: Please follow these steps: 1. Right click on your Desktop and click for the「Screen resolution」 2. Click「Make text and other items larger or smaller」...
  • Page 19 Q: Pen won’t work after installed driver. A: Please follow these steps: 1. Please refer to Parblo user menu for how to install hardware, and reinstall your Parblo again. 2. Connect the Parblo to another USB port, preferably directly to the mother board.
  • Page 20 Q: My Parblo screen sometimes flickers or is always flickering. What can I do about it ? A: If you experience flickering in Parblo monitor, please follow the instructions below for non- flickering display. Use Intel HD Graphics : Run Intel HD Graphics and click “Display”...
  • Page 21 Use AMD Graphics : 1. Run “AMD Catalyst Control Center” , Click “Preferences” and select “Advanced View”...
  • Page 22 2. Select ”My digital Flat-Panels” ”Properties digital Flat-Panels” 3. Select “Parblo Mast10” and “Enable GPU Scaling” ,then press “Apply”...
  • Page 23 III. Use Nvidia Graphics : Run NVIDIA Control Panel and click “Display””Adjust desktop size position” . Select “ArtMedia Parblo Mast10” . Select “Select a scaling mode” to “Full-screen” . Select “Perform scaling on: “ to “GPU” . Press “Apply” .
  • Page 24 Q: There are not display on My Parblo screen. What can I do about it ? A: Some computer has two display card. If your computer has Independent Video Card. Please connect Parblo to Independent Video Card. Card Independent Video...

  • Page 25: The Right Setting Of Graphic Applications

    V. The right setting of graphic applications Some applications need to change their setting that Parblo can has correct action. 1. SAI Please follow these steps: Find 「misc.ini」 in SAI folder. Right click on misc.ini and select “Edit” Find TabletMouseSimulation = 0, then modify 0 to 1 and save the file.
  • Page 26 Clip Studio Paint Run Clip studio paint and press 「Ctrl+K」 to open 「Preferences」 Select “Tablet” “Using tablet service” please select “Tablet PC” Press “ OK “ and restart Clip Studio Paint 4. SAI2...

  • Page 27: How To Care For Your Parblo

    Never spray water or detergent directly in Parblo. It may cause damage to Parblo. Never use strong solvent such as a thinner or alcohol for cleaning. Never reverse or compress the Parblo cables and don’t bend it over 90∘. It may cause damage to the cables.

  • Page 28: Appendix 1: Troubles And Solutions

    No display and the status LED doesn’t light. Verify the cable is connected between Parblo and computer.  Verify that AC power cable is connected , and the Parblo is turned on.  No display , the status LED does light.

  • Page 29: Appendix 2: Uninstall Parblo Driver

    Appendix 2: Uninstall Parblo Driver. 1. Go to “Control Panel”. 2. Select “Uninstall a program” 3. Double click “Parblo Driver” 4. Click “OK” when the uninstallation instructions show on your screen 5. Wait uninstall successfully message and click “OK” to reboot computer.
  • Page 30 Photoshop Tools Hot key Keyboard Shortcuts Image Size Alt + Ctrl + I Fit on Screen Ctrl + 0 Actual Pixels Alt + Ctrl + 0 Zoom In Ctrl + Zoom Out Ctrl - Undo/Redo Ctrl + Z Stepforward Shift + Ctrl + z Stepbackward Alt + Ctrl + z Ctrl + x...
  • Page 31 Photoshop Tools Tools Hot key Keyboard Shortcuts Lasso Magic Wand Eyedropper Crop Healing Brush Brush Clone Stamp Eraser Type Hand Toggle Screen Modes Move Tool Selection Tool...
  • Page 32 Illustrator Tools Hot key Keyboard Shortcuts Group Ctrl + g Ungroup Ctrl + Shift + g Select All Ctrl + A Lock Selection Ctrl + 2 Select Artwork in Action Board Ctrl + Alt + A Deselect All Shift + Ctrl + A Lock all Deselected Artwork Ctrl + Alt + Shift + 2 Unlock all Artwork...
  • Page 33 Clip Studio Paint Tools Hot key Keyboard Shortcuts Select All Ctrl + a Clear outside of selected area Shift + backspace Clear Selection Ctrl + d New Raster Layer ctrl + shift + n Combine to layer below ctrl + e Combine selected layer Shift + Alt + e Combine showing layer...
  • Page 34 Corel Painter Hot key Keyboard Shortcuts Undo ctrl + z Redo ctrl + y Copy ctrl + c Paste (as new object) ctrl + v Copy Visible Ctrl + Shift + c Send to front Shift + pageup Send to back Shift + pagedown Send forward one Ctrl + pageup...
  • Page 35 Corel Painter Tools Hot key Keyboard Shortcuts Brush Dropper (sample color) Fill ctrl + f Rotate Canvas Magic Wand Text Tool Layer Adjuster Lasso Use Last Used Filter Ctrl + / Screen toggle mode Ctrl + M Free Transform Ctrl + alt + t Resize Canvas Shift + Ctrl + R Decrease Brush Size...
