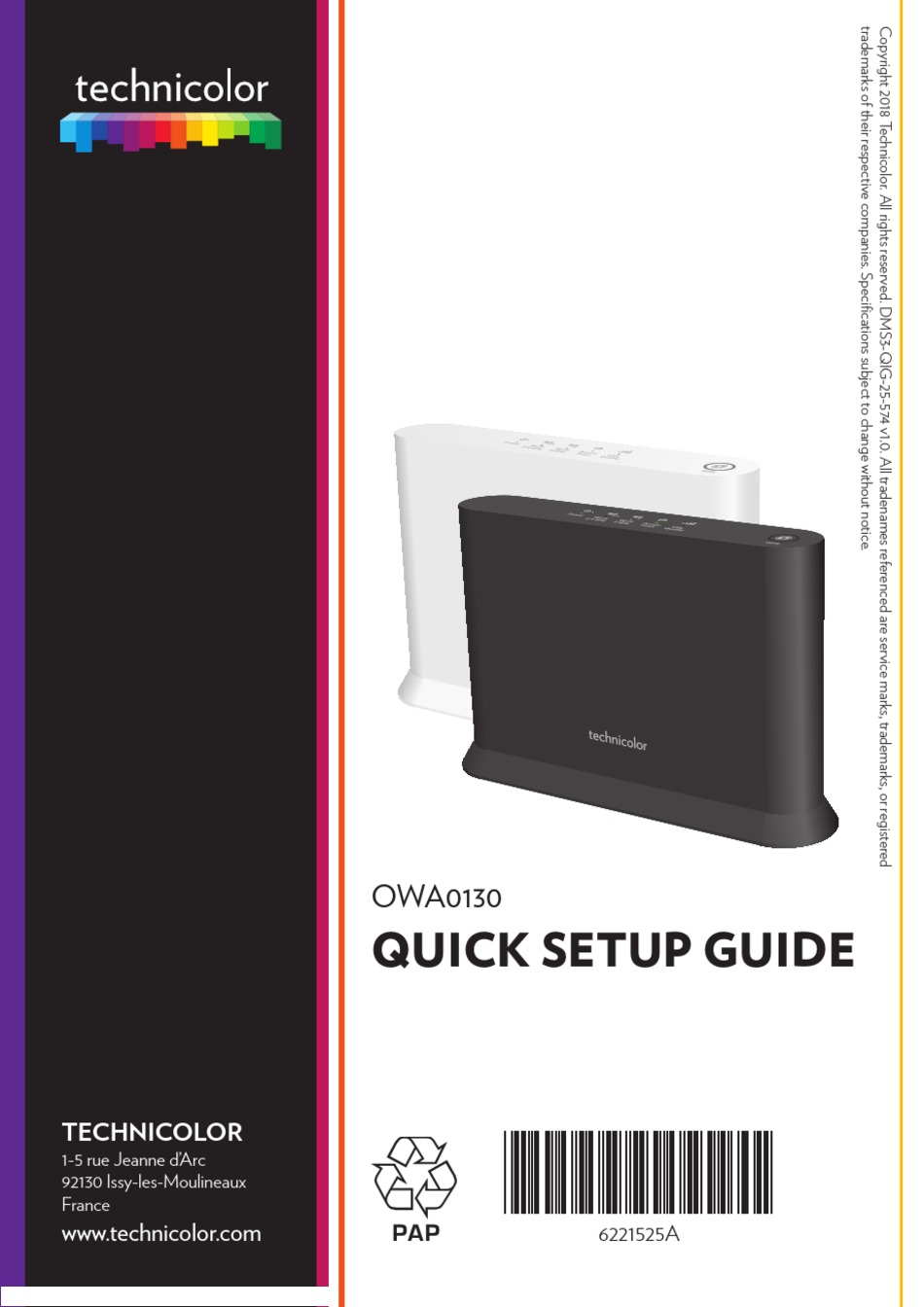

- Page 1 OWA0130 Quick Setup Guide TECHNICOLOR *6221525A* 1-5 rue Jeanne d’ A rc 92130 Issy-les-Moulineaux France www.technicolor.com 6221525A...
-
Page 2: Before You Start
1. Before you start • Carefully read the Safety Instructions and Regulatory Notices document included in your package before continuing with the installation of your OWA0130. • Do not make any connections until instructed to do so! 2. Check the content of your box... -
Page 3: Top Panel
• Use Wi-Fi devices that support 5 GHz Wi-Fi. 3.2. Top panel Status LEDs (item A) On the top panel of your OWA0130 you can find a number of LEDs that will inform you about the status of your OWA0130. Symbol Name... -
Page 4: Back Panel
Only use the power supply delivered with your OWA0130. Reset button (item D) When the OWA0130 is powered on and you press the Reset for at least 7 seconds, the OWA0130 will return to its factory default settings. Ethernet ports (item E) The Ethernet port allows you to connect your Internet gateway or Ethernet devices (for example a set-top box NAS drive). - Page 5 OWA0130 and then plug the other end into a nearby power outlet. 4 Press the power ( ) button on the back of the OWA0130. The Power ( ) LED must now be solid green. If this is not the case, check the connections you made.
- Page 6 OWA0130 and then plug the other end into a nearby power outlet. 4 Press the power ( ) button on the back of the OWA0130. The Power ( ) LED must now be solid green. If this is not the case, check the connections you made.
- Page 7 Step 2: Connect your set‑top box to your Wi‑Fi network 1 Take an OWA0130 and make sure that the mode selector on the back is switched to Auto. 2 Take the included Ethernet cable (this is the cable with the yellow connectors).
- Page 8 OWA0130 and then plug the other end into a nearby power outlet. 5 Press the power ( ) button on the back of the OWA0130. The Power ( ) LED must now be solid green. If this is not the case, check the connections you made.
-
Page 9: Tips And Tricks
OWA0130 connected to it. Procedure 1 Briefly press the WPS ( ) button on the OWA0130. The WPS ( ) LED on the OWA0130 starts blinking orange. 2 Within two minutes, briefly press the WPS ( ) button on your Internet gateway (or the OWA0130 connected to it). - Page 10 1 Unplug the power supply and move the OWA0130 closer to your access point and/or with less obstacles between the OWA0130 and your access point. 2 Plug in the power supply and wait two minutes to allow the OWA0130 to start up all services and evaluate the link quality.
