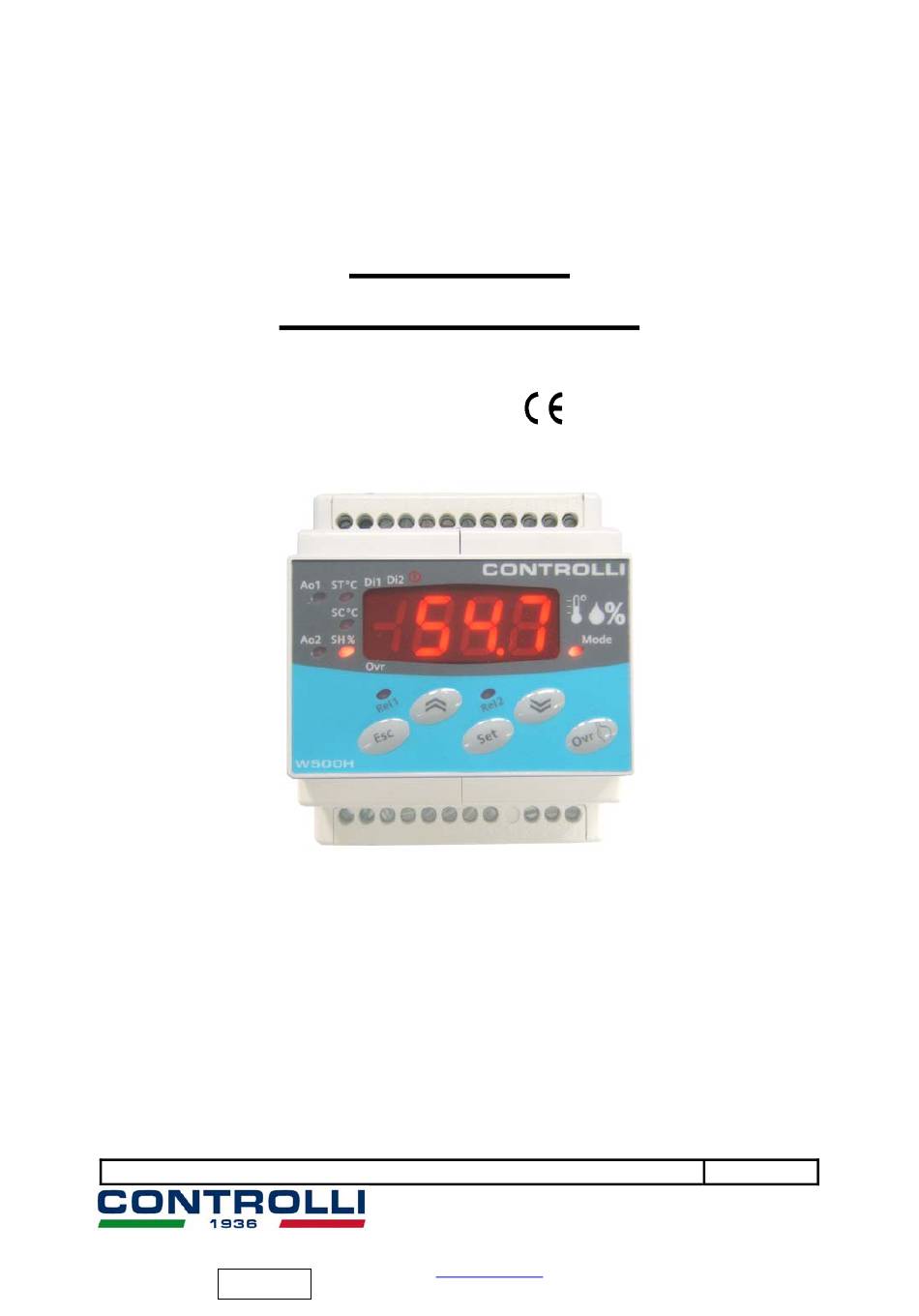

- Page 1 User’s manual W500H/H4 W500HMB/HMB4 Temperature and humidity controller Rev. d 01/12 DMP052E CONTROLLI 16010 SANT’OLCESE Genova – Italy Tel. +39 01073061 Fax :+39 0107306870/871 E-mail: info@controlli.eu Web: www.controlli.eu ISO9000...
-
Page 2: Table Of Contents
STORING DATA IN PERMANENT MEMORY .................... 14 LOADING DATA FROM PERMANENT MEMORY..................14 REMOTE SET.............................. 14 LINKBUS COMMUNICATION ........................14 ENTHALPY COMPARISON WITH OUTDOOR HUMIDITY SENSOR FROM ANOTHER W500H .... 15 MODBUS COMMUNICATION ........................16 USE OF SUPERVISION OUTSIDE SENSOR FOR COMPENSATION............16 ERROR SIGNALLING..........................16 FRONT PANEL AND DATA ACCESS MENU.................... -
Page 3: Introduction
Through the local bus port it is possible to connect up to 4 different devices with other devices of the same W digital series with the purpose to share the sensor and the operating mode. The local bus also allows the W500H to be supervised if at least one W500TMB or W500HMB is connected. -
Page 4: User Interface
USER INTERFACE The device is characterized by a user interface composed of a 3 ½-digit FND display, five keys and twelve LEDs located on the front membrane. The information displayed on screen depends on whether the sensors are present or not and on the related function enable. -
Page 5: Function Description
HEATING LOOP / COOLING IN SEQUENCE If it is required to exploit the 0-5 6-10 V control characteristic of CONTROLLI actuators to realize a Heating Cooling sequence with a unique 0–10 Vdc analogue output. When the set point is achieved the output is 5,5 Vdc. If the control Temperature goes... -
Page 6: For The 1 On/Off Digital Relay Output It Is Possible To Select
FOR THE 1 ON/OFF DIGITAL RELAY OUTPUT IT IS POSSIBLE TO SELECT: MODE D1: ON/OFF HEATING HYSTERESIS If the output value must turn to ON when the value of the Control Sensor goes below the Operating Set minus the Hysteresis band. - Page 7 MODE HUMIDIFICATION/DEHUMIDIFICATION SEQUENCE LOOP To be selected when it is required to exploit the 0-5, 6-10 control characteristics of Controlli actuators to perform a humidification/dehumidification sequence with a unique 0-10 Vdc output, driving in sequence proportional humidifier and cooling valve.
-
Page 8: For The Digital Relay Output 2 It Is Possible To Select
FOR THE DIGITAL RELAY OUTPUT 2 IT IS POSSIBLE TO SELECT: MODE D1: ON/OFF HUMIDIFICATION HYSTERESIS If the output value must turn to ON when the value of H Humidity Sensor drops under (SPH) operating humidity set value minus (BPH) hysteresis band. When the set point is achieved the relay output is OFF. -
Page 9: Control Type
CONTROL TYPE Once the OPERATING MODE is stated, it is necessary to set the CONTROL TYPE, i.e. the control criteria used by the OPERATING MODE. The control type can be: - Proportional or Proportional + Integral (P or P+I) - With fixed operation set point or compensated in function of Compensation Sensor. - With or without minimum and/or maximum limit in function of Limit Sensor. -
Page 10: Set-Point Compensation
SET-POINT COMPENSATION The operation SET-POINT can be fixed or determined by a compensation slope according to the value given by the compensation sensor. Both A1 and D1 temperature loops can be temperature compensated (the SC sensor is necessary) or humidity compensated (SH sensor). -
Page 11: Min/Max Humidity Limits On A1 And D1 Loops
MIN/MAX HUMIDITY LIMITS ON A1 AND D1 LOOPS Limit loops are optionally active in A1 and D1 loops only; they are P-type and always operate with fixed set-point. If enabled, they work in parallel to the control loop. For each operating mode (except Mode D4) both minimum and maximum limits can be enabled separately. -
Page 12: Operating Modes
OPERATING MODES The equipment is able to operate according to three different operating modes, which are: 0) Comfort – all loops are ON during control (including the Limit Loops). 1) Reduced – the Control Loops operate on a reduced Set point. The Limit Loops remain ON with their set point. -
Page 13: Clock Enable With Time Schedule
CLOCK ENABLE WITH TIME SCHEDULE If the W500 is RTC-provided or it is connected via LinkBus to a device with clock, it is possible to define the Operating Mode according to a weekly schedule and a daily schedule. The clock enable of each Control Loop is obtained by setting the parameter ABO = On. -
Page 14: Storing Data In Permanent Memory
4 controllers can operate according to the same time schedule. The equipment without the RS485 serial communication port (W500T or W500H) can be supervised if connected via LinkBus to at least one equipment with RS485 (W500TMB or W500HMB), setting it as Master i d L (i.e. -
Page 15: Enthalpy Comparison With Outdoor Humidity Sensor From Another W500H
When the function Enthalpy Comparison is active (mode A3 for analogue output 2 and/or D3 for relay output 2) it is possible to utilize SH signal from another W500H as outdoor humidity sensor. In this case we achieve a complete Enthalpy comparison of temperature and humidity using the outdoor humidity value sent through the LinkBus by another W500H. -
Page 16: Modbus Communication
MODBUS COMMUNICATION Through the ModBus protocol it is possible to supervise up to 255 groups of 4 equipments, for a total of 1020 devices. The ModBus connection is carried out on the equipment with IDL = 1 (Master) through the RS485 serial port. The values managed by supervision and those managed by the controller menu are the same. -
Page 17: Front Panel And Data Access Menu
FRONT PANEL AND DATA ACCESS MENU Using Front Panel, it is possible to access the Parameters managed by the device. The data access Menu is subdivided 53.9 into three different levels: Level 0 – Main data display Level 1 – Access to parameter configuration menu Level 2 –... -
Page 18: Parameter Configuration Menu
PARAMETER CONFIGURATION MENU Level 1 Parameter selection Parameter modification Parameters P A 1 Parameters P A 2 P d 1 Parameters P d 2 Parameters r t c Set day Set time Set minute ‘00 Parameters Loop - Mode A1 Push the Set Key and choose the parameter, then push Set again to modify it. -
Page 19: Parameters Loop Pa1 - Mode A2
Parameters Loop - Mode A2 Push Set key to select the parameter to be modified. The parameter value blinks showing the edit status: push the Up and Down keys to change values. Once the desired values are modified, push the Set or Esc keys to exit. S o F Cooling operating Set-point (read-only) Visible only with Compensation Off ( coP = OFF ) setting... -
Page 20: Parameters Loop Pd1 - Mode D1
Parameters Loop - Mode D1 Push Set key to select the parameter to be modified. The parameter value blinks showing the edit status: push the Up and Down keys to change values. Once the desired values are modified, push the Set or Esc keys to exit. Heating operating Set-point (read-only) S o C Visible only with Compensation Off setting (coP = Off ) -
Page 21: Parameters Loop P D 1 - Mode D3
P d 1 Parameters Loop - Mode D3 The Parameter menu of On/OFF Hysteresis Digital operating Mode D3 is the sum of D1/D2 Modes parameter menus. This Menu contains all parameters, since this mode is intended to manage both heating and cooling control loops. Push Set key to select the parameter to be modified. -
Page 22: Parameters Loop P A 2 - Mode A2
P A 2 Parameters Loop - Mode A2 Push Set key to select the parameter to be modified. The parameter value blinks showing the edit status: push the Up and Down keys to change values. Once the desired values are modified, push the Set or Esc keys to exit. -
Page 23: Parameter Loop P A 2 - Mode A4
P A 2 Parameter Loop - Mode A3 Push Set key to select the parameter to be modified. The parameter value blinks showing the edit status: push the Up and Down keys to change values. Once the desired values are modified, push the Set or Esc keys to exit. -
Page 24: Parameter Loop P D 2 - Mode A2
P d 2 Parameter Loop - Mode A2 Push Set key to select the parameter to be modified. The parameter value blinks showing the edit status: push the Up and Down keys to change values. Once the desired values are modified, push the Set or Esc keys to exit. -
Page 25: Programme Menu For Operating Modes And Time Schedules
PROGRAMME MENU FOR OPERATING MODES AND TIME SCHEDULES Level 2 Push for 10 seconds Set daily schedule at fixed mode or time changeover P r o P r 7 Set time schedule and operating mode c o 1 P r d c o 4 Set reduced mode for heating/cooling and humidification/de-humidification r i C... -
Page 26: Setting - Analogue Output 1 / 0-10Volt P A 1 L O O P
Set LinkBus and ModBus addresses n d L b u S i d L i b S d E F Push Set for 5 seconds until the label YES appears S d E Push Set for 10 seconds until the device is reset (the display blinks) L d E Rev. -
Page 27: Setting - Analogue Output 2 / 0-10Volt P A 2 L O O P
P A 1 Setting - Analogue output 1 / 0-10Volt L o o p P A 1 Push Set key for at least 10 seconds to enter level 2, push Up key and select menu. Push Set key to select the parameter to be modified. The parameter value blinks showing the edit status: push the Up and Down keys to change values. -
Page 28: Setting - Relay Digital Output 1 Loop P D 1
P d 1 Setting - Relay Digital output 1 Loop P d 1 Push Set key for at least 10 seconds to enter level 2, push Up key and select menu. Push Set key to select the parameter to be modified. The parameter value blinks showing the edit status: push the Up and Down keys to change values. -
Page 29: Setting - Relay Digital Output P D 1 And P D 2 - 4 Operating Mode
P d 1 P d 2 Setting - Relay digital output – 4 operating mode P d 1 P d 2 Push Set key for at least 10 seconds to enter level 2, push Up key and select menu. Push Set key to select the parameter to be modified. The parameter value blinks showing the edit status: push the Up and Down keys to change values. -
Page 30: Menu Diagram
MENU DIAGRAM Rev. d 01/1 DMP052E... -
Page 31: Temperature Control Parameter Tables (Level 1)
TEMPERATURE CONTROL PARAMETER TABLES (LEVEL 1) Analogue controller Default Range Description Availability Heat operating set Always (visualisation only cannot be set) Cool operating Set Always (visualisation only cannot be set) 21.0 -50 a 150 Heating Loop Set With ST, without Compens., 1, 3 , 4 operating modes With ST and SC, Comp.enabled.,1,3, 4 operating modes 20.0 -50 a 150 Heating compensation minimum Set... -
Page 32: Humidity Control Parameter Tables (Level 1)
HUMIDITY CONTROL PARAMETER TABLES (LEVEL 1) Analogue controller Default Range Description Availability Humidification operating Set With SH, 1 and 4 operating mode (visualised only) De-humidification operating Set With SH, 2 and 4 operating mode (visualised only) 50.0 0 a 100 Humidification Loop Set With SH, without Compens., 1 and 4 operating modes 40.0... -
Page 33: Tables Of Operating Modes And Time Schedules (Level 2)
TABLES OF OPERATING MODES AND TIME SCHEDULES (LEVEL 2) Time schedules: (Pro) Weekly schedule Default Range Description Availability (Pr7) d1 (MON) 0 to 5 Fixed mode or daily sched.(On, rid, OFF, Pr1-2-3 If clock is present (W500HMB model) Fixed mode or daily sched.(On, rid, OFF, Pr1-2-3) If clock is present (W500HMB model) d2 (TUE) 0 to 5... - Page 34 Analogue contr. Default Range Description Availability 1 to 4 Operating modes (1, 2, 3, 4) Always Always Automatic/Manual enable (Clock) Always Integral action enable Compensated set enable With SC sensor Loop stop on DI1 (External enable 1) Always 1, 2 and 4 operating modes. 3 Mode: S/W (off) Loop stop on DI2 (External enable 2) Changeover On/Off contr.
-
Page 35: System Applications
SYSTEM APPLICATIONS EXAMPLE 1: OUTSIDE AIR PLANT WITH S/W TIME CONTROL OF ROOM TEMPERATURE AND ON/OFF WINTER HUMIDIFICATION Proportional temperature controller, heating/cooling changeable by D.i.2. with outside compensation, and on/off humidity control + limit control (anti-frost or max temperature) on any of D.i.1 digital inputs. - Page 36 EXAMPLE 2: OUTSIDE AIR PLANT WITH HEATING/COOLING ROOM TEMPERATURE TIME CONTROL AND ON/OFF HUMIDIFICATION A heating-cooling sequence with optional compensation, using the two analogue outputs having (on request) limit action (anti-frost or max temperature) on any of the digital inputs, on/off humidification.
- Page 37 EXAMPLE 3: RETURN AIR SYSTEM WITH DAMPER MANAGEMENT ONLY FOR TEMPERATURE, ROOM TEMPERATURE AND HUMIDIFICATION In a return air system, the differential comparison between outside and inside temperature to control dampers, room temperature control with cooling/heating batteries + limit function (anti-frost or max temperature) on any digital input.
- Page 38 RETURN AIR SYSTEM WITH ENTHALPY DAMPER CONTROL, ROOM TEMPERATURE AND HUMIDIFICATION Enthalpy damper control: THIS APPLICATION REQUIRES TWO W500H Return air system with differential comparison of two Enthalpies (outside/inside) for damper control, room temperature control with heating/cooling coil + limit function (anti-frost or max temperature) on any of digital inputs.
- Page 39 EXAMPLE 5: AIR HANDLING UNIT WITH RETURN AIR AND ENTHALPY CONTROL OF DAMPERS Enthalpy damper control: THIS APPLICATION REQUIRES TWO W500H This application is an extension of the example 4, where more functions of R1 controller are performed. Rev. d...
- Page 40 OPERATION R1 Controller time controls with PI action the outside temperature on return air sensor (2) driving valve (4) on heating (4A) and cooling (4B) batteries. It carries out control by driving on the same output of two actuators (one set as “reverse” 1-5 Vdc, the other as “direct” 6-9 Vdc) with output at 5.5 Vdc when the set is satisfied.
- Page 41 EXAMPLE 6 OUTSIDE PLANT WITH STATIC RECUPERATOR S/W TIME CONTROL FOR ROOM TEMPERATURE AND PROPORTIONAL HUMIDIFICATION Proportional temperature controller with heating/cooling sequence or S/W changeover, with outside temperature compensation and proportional humidity control. Summer start-up of bypass damper recuperator when the inside temperature condition is unfavourable. OPERATION The controller time controls, with PI action, the room temperature (sensor A2) or on air exhaust (sensor 2B) by driving the valve (4) on the heating/cooling coil with outside compensated set-point...
- Page 42 EXAMPLE 7: RETURN AIR SYSTEM WITH MODULATING CONTROL OF ROOM TEMPERATURE AND HUMIDITY IN INDOOR SWIMMING POOLS. Time controller of heat proportional temperature and proportional humidity control with outside air variation. Compensation of supply air mixing with glass wall sensor in order to avoid condensation phenomena.
