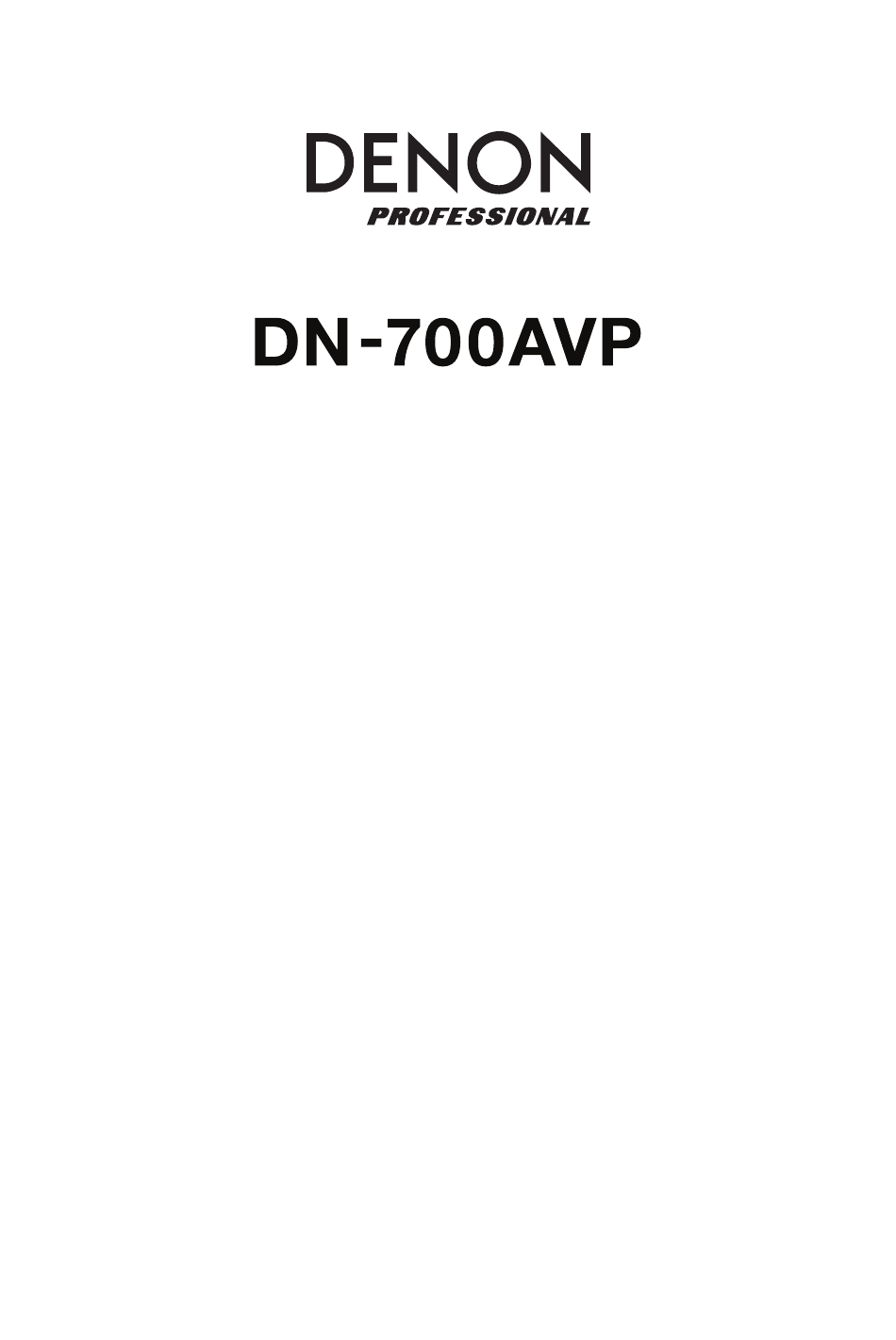

- Page 1 Serial Command Protocol Guide English...
-
Page 2: Table Of Contents
Table of Contents Introduction ..........................3 Support ..........................3 General ............................3 RS-232C Control ........................3 Specifications ............................3 Pin Arrangement ..........................3 Communication Protocol ......................4 Basic Specification ........................ 4 Structure of Control Commands ................... 5 Structure of Command Codes ....................5 Control Command Codes ...................... -
Page 3: Introduction
The RS-232C serial remote control function is used by connecting the host machine such as a PC to the device (DN-700AVP). The host can control the device by sending the Control command, and the host can detect the current device status by sending the Status Request command. -
Page 4: Communication Protocol
Communication Protocol Basic Specification Communication with DN-700AVP uses ASCII Code from 0x20 to 0x7F, which includes the alphabet, numbers 0–9, space (0x20), some signs, and carriage return (CR, 0x0D). There are three types of communication used by DN-700AVP: 1. Controlling DN-700AVP from the host... -
Page 5: Structure Of Control Commands
• Allow an interval of at least 200 ms between commands when sending a series of commands from the host. DN-700AVP will not receive commands when the interval is less than 200 ms. • The device can receive control command data during transmission of status command data. -
Page 6: Control Command Codes
Control Command Codes CATEGORY CONTENTS COMMAND PARAMETER CODE NOTES Power On PWON<CR> Power Standby STANDBY PWSTANDBY<CR> MVUP<CR> Down DOWN MVDOWN<CR> Master Volume ∗∗: 0 to 90 by ASCII ∗∗ 0-90 MV∗∗<CR> 0 (Max), 90 (Min) FL UP CVFL UP<CR> Down FL DOWN CVFL DOWN<CR>... - Page 7 CATEGORY CONTENTS COMMAND PARAMETER CODE NOTES FL UP CDFL UP<CR> Down FL DOWN CDFL DOWN<CR> Front Lch Direct FL ∗∗ CDFL ∗∗<CR> ∗∗: 0 to 100 by ASCII change to ∗∗ FR UP CDFR UP<CR> Down FR DOWN CDFR DOWN<CR> Front Rch Direct FR ∗∗...
- Page 8 CATEGORY CONTENTS COMMAND PARAMETER CODE SIDVD<CR> Dock DOCK SIDOCK<CR> SIBD<CR> SISAT<CR> Game1 GAME1 SIGAME1<CR> Select Input Source Game2 GAME2 SIGAME2<CR> SICD<CR> Media MEDIA SIMEDIA<CR> Bluetooth BLUETOOTH SIBLUETOOTH<CR> SITV<CR> Tuner TUNER SITUNER<CR> Direct DIRECT MSDIRECT<CR> Stereo STEREO MSSTEREO<CR> Movie MOVIE MSMOVIE<CR> Select Surround Mode Music MUSIC...
- Page 9 CATEGORY CONTENTS COMMAND PARAMETER CODE NOTES Set force Auto mode (Priority: HDMI > Digital > AUTO SDAUTO<CR> Analog) Set force HDMI Input Mode HDMI SDHDMI<CR> SD Status Set force Digital Input DIGITAL SDDIGITAL<CR> (Optical, Coaxial) Mode Set force Analog Input Mode ANALOG SDANALOG<CR>...
- Page 10 CATEGORY CONTENTS COMMAND PARAMETER CODE "Cursor Up" Control NS90<CR> "Cursor Down" Control NS91<CR> "Cursor Left" Control NS92<CR> "Cursor Right" Control NS93<CR> "Enter" Control NS94<CR> NET/USB/BT "Play" Control NS9A<CR> Control "Stop" Control NS9C<CR> "Skip Plus" Control NS9D<CR> "Skip Minus" Control NS9E<CR> Menu MENU NSMEN<CR>...
-
Page 11: Status Request/Information Codes
Status Request/Information Codes Status Information Command Status Request Command and Status Command (Host → DN-700AVP) (DN-700AVP → Host) NOTES REQUEST COMMAND CONTENTS COMMAND PW?<CR> Power On PWON<CR> Power Status Standby PWSTANDBY<CR> ∗∗: 0 to 90 by ASCII ∗∗dB MV ∗∗<CR>... - Page 12 Status Information Command Status Request Command and Status Command (Host → DN-700AVP) (DN-700AVP → Host) REQUEST COMMAND CONTENTS COMMAND NOTES Direct change to CDFL ∗∗<CR> ∗∗: 0 to 100 by ASCII Front Lch ∗∗dB Direct change to CDFR ∗∗<CR> ∗∗: 0 to 100 by ASCII Front Rch ∗∗dB...
- Page 13 Status Information Command Status Request Command and Status Command (Host → DN-700AVP) (DN-700AVP → Host) NOTES REQUEST COMMAND CONTENTS COMMAND Direct MSDIRECT<CR> Stereo MSSTEREO<CR> Movie MSMOVIE<CR> Music MSMUSIC<CR> Game MSGAME<CR> MS?<CR> Neo:6 Cinema MSNEO6CINEMA<CR> Neo:6 Music MSNEO6MUSIC<CR> Select Hall MSHALL<CR>...
-
Page 14: Trademarks & Licenses
Trademarks & Licenses Denon is a trademark of D&M Holdings Inc., registered in the U.S. and other countries. Denon Professional products are produced by inMusic Brands, Inc., Cumberland, RI 02864, USA. All other product names, company names, trademarks, or trade names are those of their respective owners. - Page 16 denonpro.com Manual Version 1.1...
