Summary of Contents for Ewattch SQUID-HC-LORAWAN
- Page 1 EWATTCH CONNECTED SENSORS FOR ENERGY MANAGEMENT SQUID-HC-LORAWAN Technical manual for the LoRaWAN version SQUID. Version 1.1...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Hazards and warnings Certifications and conformities References Presentation Product description Product installation Radio communications Technical specifications Contact SQUID-HC-LORAWAN Technical Documentation wattch... -
Page 3: Hazards And Warnings
Disconnect all power supplies before working on the equipment. CERTIFICATIONS AND CONFORMITIES • EN 61000-6-2 Immunity for industrial environments • EN 61000-6-3 Emissions for residential environments • EN 55022 Immunity IT equipment Radio • EN 300220 Safety • EN 61010 IT equipment www.ewattch.com wattch... -
Page 4: References
Measurement clamps for SQUID-HC - Ø10mm - 100A eff max CURCLAMP-HC-S2 Measurement clamps for SQUID-HC - Ø16mm - 100A eff max CURCLAMP-HC-S3 Measurement clamps for SQUID-HC - Ø24mm - 300A eff max CURCLAMP-HC-S4 Measurement clamps for SQUID-HC - Ø36mm - 600A eff max SQUID-HC-LORAWAN Technical Documentation wattch... -
Page 5: Presentation

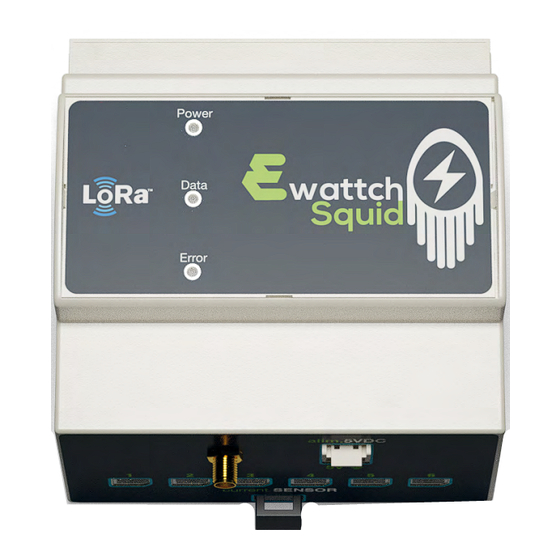

LoRaWAN link. The product sends the consumption index of the 12 clamps in Ah at configurable intervals. The SQUID is powered by 5V DC by means of an external power supply. www.ewattch.com wattch... -
Page 6: Product Installation
A 5V DC-2A power supply must be placed in the lead, before coming to supply the SQUID. The wiring of the Extra Low Voltage Safety circuits must be maintained and kept separated from circuits carrying hazardous voltages. SQUID-HC-LORAWAN Technical Documentation wattch... - Page 7 It is essential only to use reference measurement clamps: CURCLAMP-HC-SX. These are type C clamps. Up to 12 measurement • Power cable Prerequisite Use a 5V DC power supply with minimum output current of 2A Make sure to use the correct polarity. POWER SUPPLY 5V DC www.ewattch.com wattch...
-
Page 8: Radio Communications
Switches 1 and 2 allow the transmission period to be chosen One transmission every One transmission every 20 minutes 10 minutes One transmission every One transmission every 30 minutes 60 minutes Switches 3 and 4 are currently not used Not used SQUID-HC-LORAWAN Technical Documentation wattch... - Page 9 407D1A 10-dec Channel 3 Channel 3: 17,360Ah 13-15 Channel 4 F56900 Channel 4: 271.2Ah 16-18 Channel 5 EAD300 Channel 5: 542.5Ah D4A701 19-21 Channel 6 Channel 6: 4,340Ah ••• ••• ••• 37-39 Channel 12 D4A701 Channel 12: 4,340Ah www.ewattch.com wattch...
- Page 10 Periodicity of transmissions in seconds. Value of 16-bit code in little-endian to multiply by 10. 3C 00 10-12 Periodicity 3C 00 => 0x003C hexadecimal i.e. 60 decimal and 60 x 10 = 600 seconds i.e. a transmission every 10 minutes. SQUID-HC-LORAWAN Technical Documentation wattch...
-
Page 11: Technical Specifications
From 5 to 40°C Indoors STORAGE TEMPERATURE OPERATING HUMIDITY From -20°C to +70°C From 10 to 80 %, without condensation MAXIMUM ALTITUDE POWER SUPPLY VOLTAGE FLUCTUATION 2 000 m ±10% of the nominal voltage DEGREE OF POLLUTION OVERVOLTAGE CATEGORY www.ewattch.com wattch... - Page 12 TECHNICAL SPECIFICATIONS (CONT.) PHYSICAL DIMENSIONS (H X L X D) BULK 90,5 x 87,8 x 62 mm 5 modules WEIGHT MOUNTING 152 g Rail as DIN EN 60715 (1 x 35 mm) SQUID-HC-LORAWAN Technical Documentation wattch...
-
Page 13: Contact
CONTACT wattch 13, Rue Maurice Jeandon 88100 Saint-Dié des Vosges contact@ewattch.fr www.ewattch.fr www.ewattch.com wattch... - Page 14 EWATTCH-SENSORS WE CREATE USEFUL PRODUCTS. contact@ewattch.fr www.ewattch.com...
