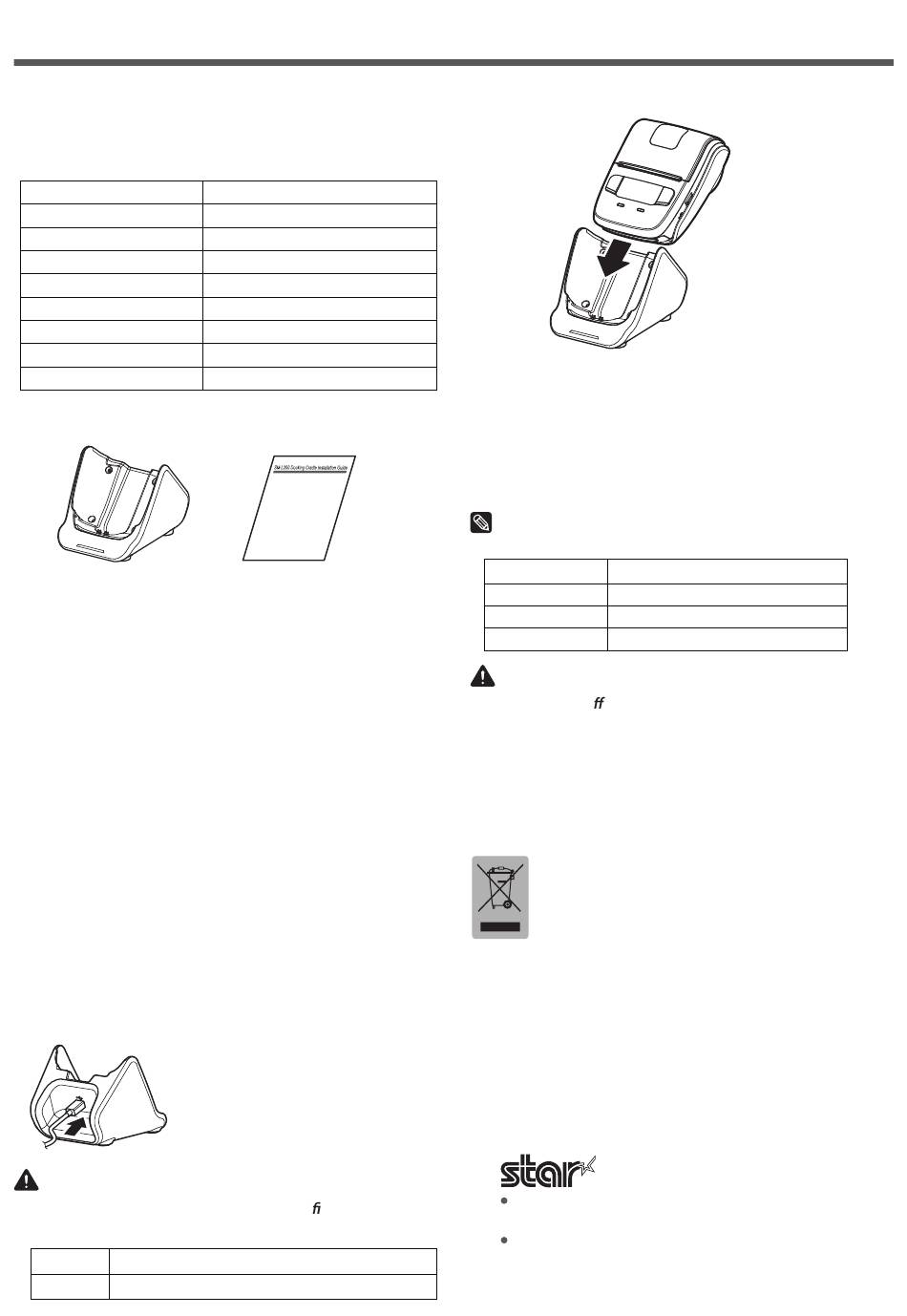

Star Micronics SM-L200 Installation Manual

SM - L200 Char g in g Cradle Installation Guide
◈ Introduction
This installation guide provides information required for
product installation and use. Read the following contents
carefully, before using this product.
Item
Rated Voltage
Input Voltage
Input Current
Output No-load Voltage
Output Current
Output Rated Current
Operating Condition
Storage Condition
◈ Components
Charging Cradle

◈ Installation Precautions

1. Avoid placing in direct sunlight and/or locations subject
to excessive heat.
2. Do not use or store in locations subject to high tempera-
tures and/or humidity.
3. Do not use or store in dusty locations.
4. Do not install in unstable and/or non-level locations.
5. Subjecting the product to strong vibration and/or shock
can cause damage.
6. Secure sufficient space in the installation area to facilitate
easy usage.
7. Do not short-circuit at the charging contact part using
some metal parts like clip. This might increase the risk of
igniting and emitting smoke.
8. Be careful to not enter water or any foreign objects into
the charging cradle. This might increase the risk of ignit-
ing and emitting smoke.

◈ Connecting the Cables

WARNING
Use the communication port which certi ed by USB com-
pliance or USB charging port.
LED Self-Test
LED Off Error condition for charging cradle or no power.
Specifications
5V
DC 5V
0.5A
4.75V to 5.25V
0.5A MAX
500mA
0℃ to 40℃, 20% to 85%RH
-20℃ to 70℃, 5% to 95%RH
Installation Guide
1. Connect USB cord for battery
charger to the power connector
of the charging cradle.
2. Plug the power cord into a po-
wer outlet.
Input power is 5V DC, 0.5A.

◈ Battery Charging

1. Turn the printer off.
2. Slide the printer into the charging cradle as shown.
3. Place the printer correctly on a cradle.
Red LED means charging.
*1)
4. Charging begins when the printer is inserted.
5. When charging is complete, pull out the printer to remove it.
NOTE
Battery charging status descriptions are as follows.
LED Charging Status
Red LED On *1) Charging
Green LED On Fully Charged / Power Indicator
LED Off Error / No Power
CAUTION
1. If the LED if o , indicates error or no power of USB port
or charger.
2. The charging time may vary depending on the type of
the charger. Normally, it takes 4 to 5 hours to charge
the battery pack.
◈ WEEE
( Waste Electrical and Electric Equipment )
This marking shown on the product or its literature,
indicates that it should not be disposed of with other
household wastes at the end of its working life.
To prevent possible harm to the environment or hu-
man health from uncontrolled waste disposal, please
separate this from other types of wastes and recycle it respon-
sibly to promote the sustainable reuse of material resources.
Household users should contact either the retailer where they
purchased this product, or their local government office, for
details of where and how they can take this item for environ-
mentally safe recycling. Business users should contact their
supplier and check the terms and conditions of
the purchase contract. This product should not be mixed with
other commercial wastes for disposal.
Web site
http://www.star-m.jp/eng
STAR MICRONICS CO.,LTD.
536 Nanatsushinya,Shimizu-ku,Shizuoka,424-0066 Japan
Tel: ( int+81 ) -54-347-0112
Fax: ( int+81 ) -54-347-0409
